D250mm Copper Rod Continuous Casting / Brass Continuous Casting Machine
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: CHINA
Brand Name: Jingjie
Certification: CE/ISO
Model Number: HCCM
High Light:

continue casting machine

,

continuous casting machinery

Payment & Shipping Terms
Packaging Details: Packed in wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T or L/C
Supply Ability: 10sets per month
Specifications
Product Material: Brass
Product: Rod
Product Diameters: Φ15-250mm
Type: Horizontal
Length: 6m
Furnace Type: Melting And Holding Split Furnace
Melting Furnace Capacity: 0.5-3T
Holding Furnace Capacity: 0.5-3T
Product Description
D250mm Copper Rod Continuous Casting / Brass Continuous Casting Machine

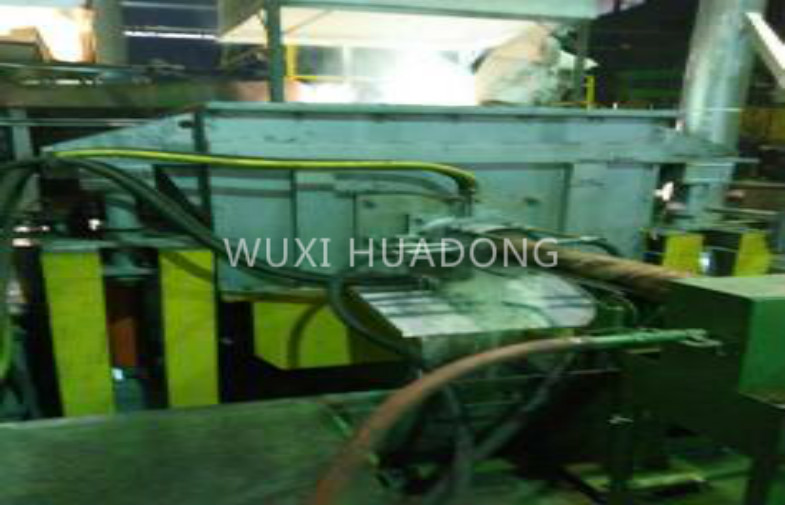

Horizontal continuous casting machine is mainly used for brass/bronze bar,brass/bronze tube making.The materials can be pure brass/bronze ,scrap brass/bronze and other brass/bronze materials.



Main composed parts :

No

Items

Specific

Q’ty

Remarks

1 Split Type Furnace


Melting Furnace



210KW



1SET

3-phase Balance

Brand of Electrical Components: CHNT, Including furnace lining materials, 1SET



Electrical System of Melting Furnace





1SET

3-phase Balance



Hydraulic Furnace-Tilting System





1SET

Main Components: Qualified, Made in China



Chute

  1SET


Holding Furnace



120KW



SET

3-phase Balance

Brand of Electrical Components: CHNT, Including furnace lining materials, 1SET



Electrical System of Holding Furnace





1SET



3-phase Balance





Automatic Control System of Temperature





1SET



Including Thermalcouples and Protection Tube of Thermalcouple





Furnace Face-plate of Mould





2PCS



Ф(60~25)x(8~4.5)mm







Refractory Bricks around Furnace Mouth





2/PCS

Silicon Carbide

2

Crystallzer

One use one standy



Ф(60-25)

x(8-4.5)mm



8SETS



Including Graphite Dies(20sets) and Dummy Bar and Dummy Bar Head

3

Upholding Roller between Caster & Tractor





1SET


4

PLC Servo Auto CCM



Continuous casting machine





1SET

Made by the Manufacturer



PLC Servo motor and Auto Control Cabinet





1SET

Servo-motor:4.4KW

Yaskawa,Japan

5

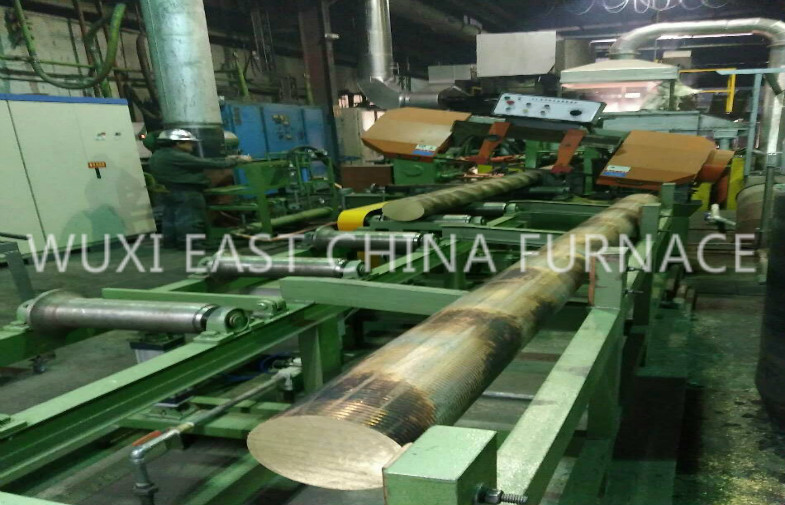

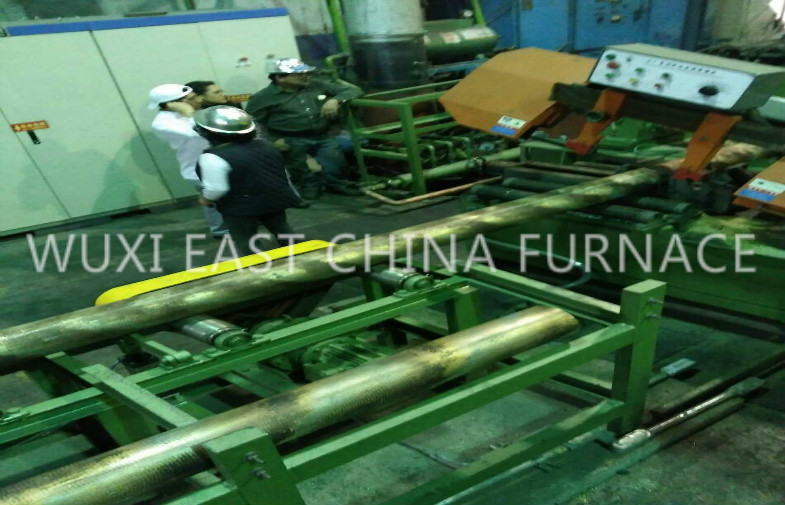

Auto-tracking Cutting Machine





1SET


6

Cutting System of Mold Replacement





1SET


7

Pneumatic Tilting (Storage) Table





1SET

Effective Length:6Meters

8

Cooling Water Dispenser





2SETS

Warning Function of Water Pressure and Flow Rate

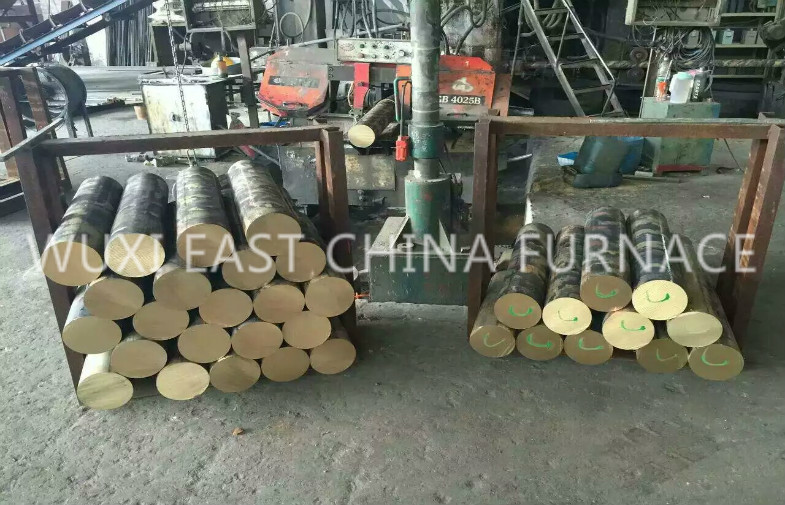

FOR BRASS BARS AND TUBES




Technical parameters for induction furnace:

Model
GYT-150
GYT-200
GYT-300
GYT-500
GYT-750
Rated capacity(kg)
500
800
1200
1800
2000
Rated power(kw)
45
60
90
120
180
Melting rate(kg/h)
150
200
300
500
750
Rated temperature(oC)
1250
Power consumption (KW·h/t)
320
300
280
260
260
Phase
3-phase
Voltage
220v,380v,400v,415v,440v,460v etc,.
Frequency
50hz/60hz
