Wire Rod Upward Continuous Casting Machine For Brass Copper Bronze Aluminum
Negotiation
MOQ
negotiation
Price
Wire Rod Upward Continuous Casting Machine For Brass Copper Bronze Aluminum
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Jingjie
Certification: ISO/CE
Model Number: GVT
High Light:

upward casting machine

,

continuous casting plant

Payment & Shipping Terms
Packaging Details: Packed in wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T or L/C
Supply Ability: 10sets per month
Specifications
Product Material: Red Copper,Brass,Bronze,Aluminum
Product: Rod-wire
Product Diameters: 8-30mm
Copper Melting Velocity: 380kg/h
Furnace Type: 3 Body (2 Melting,1 Holding )
Strand: Depends
Upward Casting Speed: 0~3000mm/min
Copper Melting Power Consumption: <350kwh/ton
Place Of Origin: WUXI,JIANGSU,CHINA
Warranty: 12 Months
After Sales Service: Send Engineers To Overseas
Product Description

Brass Copper Bronze Aluminum Wire Rod Upward Continuous Casting Machine Made In China



Advantage of our upcasting machine

1.  Energy-saving furnace is used for the upcasting line, which is having a larger power for single inductor, better melting effect, and a longer life. It has won the related patent: ZL 2010.2 0214505.5, ZL 2010.2 0214501.7, ZL 2006.2 0105926.8 ZL 2008.2 0162263.2.

2. The gapless connecting expansion sleeve is used for the traction device, the PLC is used to control the servo motor correctly, and to assure that each order from the PLC is correct and accurate.

3. High accuracy and low backlash planetary reducer is used to make the freezing time more accurate, thus to increase the crystallzing quality.

4. The paperless recorder is used and is connected to the manager’s computer. All the temperature records within one month can be checked, through which the controlling of the furnace temperature can be more effective and the rod quality can be increased. (chose when the buyer need)

5.  The thickness of the furnace is increased, e.g., the furnace for 5000 type is 1.6 meters which is having a better heating preservation effect.

6.  Quick lifting device is used for installing and changing the crystallizer, it can be finished within 10 seconds. When water or power supply stops, the crystallizer can be lifted quickly and leave the copper liquid.



Layout drawing for reference

Wire Rod Upward Continuous Casting Machine For Brass Copper Bronze Aluminum 0



Main data

No. Item Data
1 Model No SYJ0608-I3
2 Annual capacity 3000tons
3 Furnace structure 3 body (2 melting,1 holding )
4 Casting Strands 6
6 Casting rod diameter: Ф8mm
7 Upward casting speed 0~3000mm/min
8 Annual working time 7920h
9 Liquid tracking precision ±2mm
10 Take-up coil standard Ф700mm × Ф1500mm× 800mm
11 Copper melting velocity 380kg/h
12 Copper melting power consumption <350kwh/ton
13 Take-up form automatic adjust
14 Take-up plate driven approach inverter motor, PLC control
15 Material feeding method whole piece of electrolytic copper cathode fed by electric hoist
16 Upward driven approach driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet
17 Rod clamping method air clamping

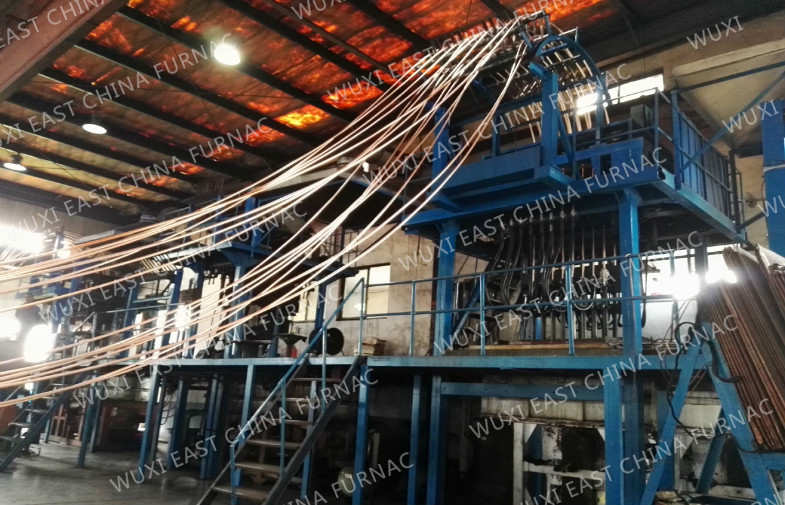

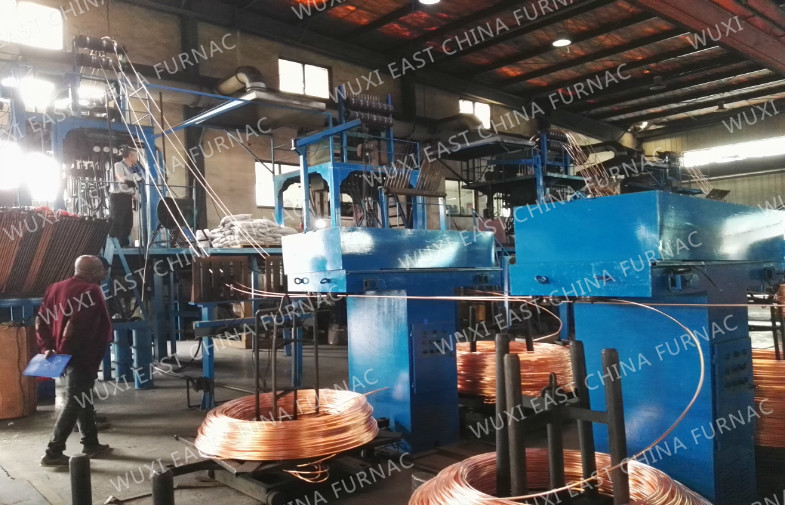

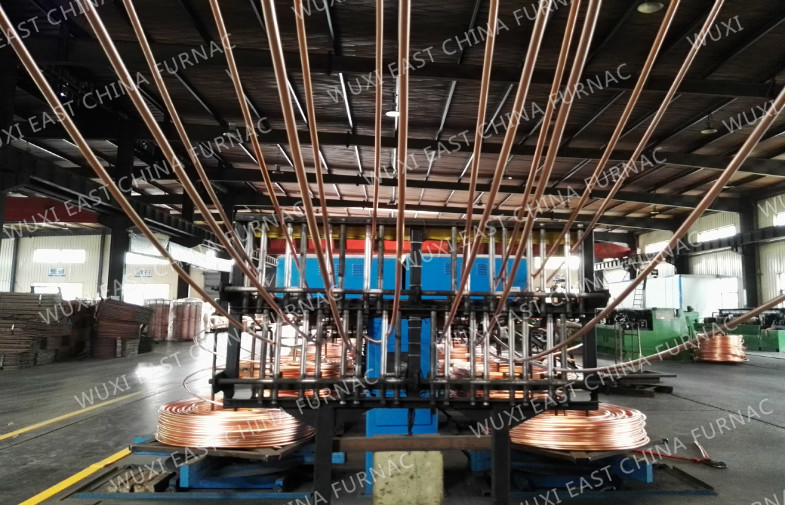

PICTURES
