Water Cooler Continuous Casting Machine Horizontal For Bronze Pipes

China Water Cooler Continuous Casting Machine Horizontal For Bronze Pipes supplier

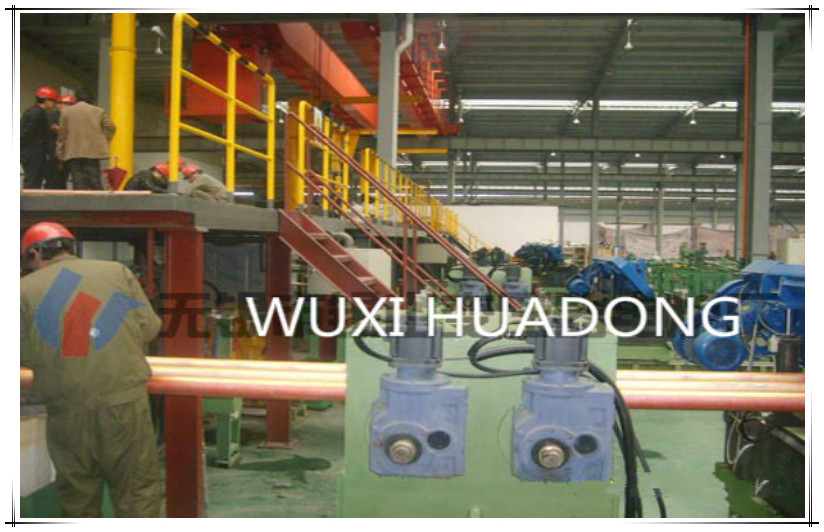

Large Image :  Water Cooler Continuous Casting Machine Horizontal For Bronze Pipes

Product Details:

Place of Origin: WUXI
Brand Name: Jingjie
Model Number: GVT

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Packed in wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T or L/C
Supply Ability: 10sets per month
Contact Now
Detailed Product Description
Product Material: Bronze Product: Pipe
Product Diameters: Φ(28--300)mm Type: Horizontal
Thickness: 4--80 Mm Furnace Type: Melting And Holding High And Low Combined Furnace



Water Cooler Continuous Casting Machine Horizontal For Bronze Pipes





Ⅰ. Specifications:

1. Types of casting specifications

* Bronze



1.1 Hollow billets (tube-shaped)

a. Range of outer diameter Φ(28--300)mm

b. Range of wall thickness 4--80 mm

c. Number of production lines

1-- 8 lines( according to section conditions)





Ⅱ.Process:











Ⅲ. Equipment Components List of  Horizontal Continuous Casting Production line for Rod-Wire

No. Equipment Name and Spec. Unit Quantity Remarks
1
2 Melting furnace  set 1 Including melting groove, coil, waer jacket and iron core.
3 Chute set 2 One in-use and one standby
4 Holding furnace  set 1 Including melting groove, coil, water jacket, iron core, vertical temperature measurement device (specially-made), thermocouple (containing platinum and rhodium) and protection tube.
5 Molten steel storage ladle and chute set 1 For transferring material into the mold after sintering in holding furnace.
6 mold system (Ф30-200) set 2 Including graphite mold
7 Dragger (5KW) set 1
8 Synchronized auto-tracking sawing machine set 1
9 Material stock platform set 1 Chain drive, length of 5M
10 Header tank set 1
11 Traction carrier roller Set 1
12 Cooling water distributor set 1 Including cooling water for transformer, reactor, coil of electric furnace, water jacket, water-cooling cable, and mold (primary and secondary cooling).
13 Hydraulic system set 2

Including hydraulic station and cylinder

(The hydraulic components produced by YUCI YUKEN HYDRAULICS CO., LTD. are adopted)

14 Electric-control operation system of electric furnace set 1 Including the control cabinet for melting furnace and holding furnace (Siemens is chosen for main electrical elements).
15 Process control operation system set 1 For control of servo motor and process, synchronized auto-tracking sawing machine, and control of material stock platform.



Ⅳ. Date of Delivery:

    To be delivered within 75 days after the contract becomes effective.



. After-sales service

    1. The main body of the equipment will have one year of free warranty, and special components shall be discussed separately;

    2. During the trial-production period (within 3 months after equipment commissioning is finished), our company will dispatch a professional technician for follow-up service;

Within the warranty period, if fault occurs due to quality problem, our company will dispatch personnel to the site to solve the problem within 72 hours after receiving the notice;

After the warranty period of the equipment is expired, our company will offer effective solutions within 24 hours after receiving the notice, and will dispatch personnel for maintenance work if the user fails to solve the problem, only charging the cost expenses.

For annual overhaul of equipment, our company will dispatch professional technician to join the users in formulating the turnaround plan, free of charge;

Within the warranty period, our company can dispatch professional technician to the site to check the operation condition of equipment and provide field service.

After the warranty period of equipment expires, one return visit can be made on invitation once per half a year.

    3. If our company has innovation and improvement points or constructive suggestions for similar equipments, we will inform the user in time.
