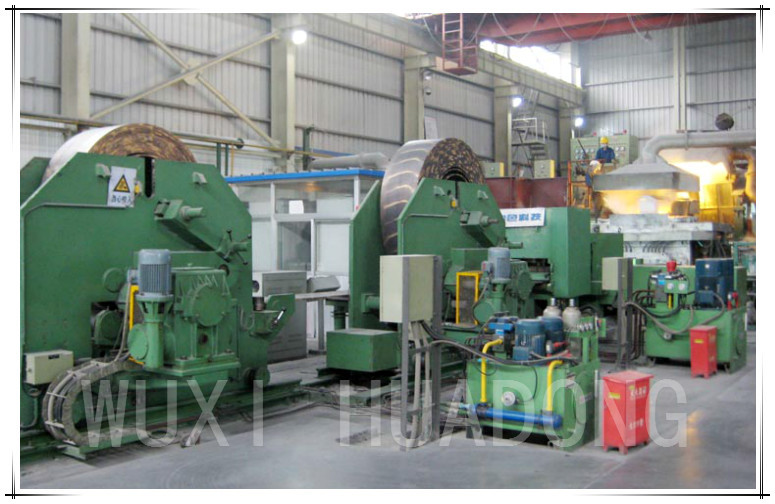

100mm Red Copper Pipes Horizontal Continuous Casting Machine Durable

100mm Red Copper Pipes Horizontal Continuous Casting Machine Durable
100mm Red Copper Pipes Horizontal Continuous Casting Machine Durable

Large Image :  100mm Red Copper Pipes Horizontal Continuous Casting Machine Durable Get Best Price

Product Details:

Place of Origin: China
Brand Name: Jingjie
Model Number: GVT

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Packed in wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T or L/C
Supply Ability: 10sets per month
Detailed Product Description
Product Material: Red Copper Product: Pipe
Product Diameters: Φ(28--300)mm Type: Horizontal
Thickness: (4--80) Mm Furnace Type: Melting And Holding High And Low Combined Furnace
High Light:

continuous caster machine

,

continuous casting machinery



100mm Red Copper Pipes Horizontal Continuous Casting Machine Durable​



Ⅰ. Specifications:
1. Types of casting specifications
* Red copper, oxygen-free copper

1.1 Pipes
a. Range of outer diameter Φ(28--300)mm
b. Range of wall thickness 4--80 mm
c. Number of production lines
1-- 8 lines( according to section conditions)



Ⅱ.Process:


   Main equipments of production line
     melting furnace, holding furnace, mold, micro-travel reversible casting machine, synchronizing shearing machines * 2, winding machines* 3, hydraulic unit, cooling unit, and electromechanical control unit etc.
        * 2.1 For casting of pure metal or special requirements, subsurface channel-type smelting-holding combination furnace or controllable channel-type smelting-holding combination furnace can be adopted;

* 2.2 For producing round-shaped, tubular-shaped and special-shaped billets, cut-to-length synchronizing sawing machine can be adopted;

* 2.3 For producing round-shaped, tubular-shaped and special-shaped billets, the material stock platform for receiving and storing billets can be adopted.



Our Factory Main Line Of the Copper Continuous Casting Machine /Horizontal Continuous Casting Machine / Vertical Continuous Casting Machine / Billet Continuous Casting Machine / Steel Continuous Casting Machine / Slab Continuous Casting Machine / Upward Continuous Casting Machine.We Can Provide You With After Sales Service Engineer, Provide Techincal Consultation And Training For A New Factory




Ⅲ. Equipment Components List of  Horizontal Continuous Casting Production line for Rod-Wire

No. Equipment Name and Spec. Unit Quantity Remarks
1
2 Melting furnace  set 1 Including melting groove, coil, waer jacket and iron core.
3 Chute set 2 One in-use and one standby
4 Holding furnace  set 1 Including melting groove, coil, water jacket, iron core, vertical temperature measurement device (specially-made), thermocouple (containing platinum and rhodium) and protection tube.
5 Molten steel storage ladle and chute set 1 For transferring material into the mold after sintering in holding furnace.
6 mold system (Ф30-200) set 2 Including graphite mold
7 Dragger (5KW) set 1
8 Synchronized auto-tracking sawing machine set 1
9 Material stock platform set 1 Chain drive, length of 5M
10 Header tank set 1
11 Traction carrier roller Set 1
12 Cooling water distributor set 1 Including cooling water for transformer, reactor, coil of electric furnace, water jacket, water-cooling cable, and mold (primary and secondary cooling).
13 Hydraulic system set 2

Including hydraulic station and cylinder
(The hydraulic components produced by YUCI YUKEN HYDRAULICS CO., LTD. are adopted)

14 Electric-control operation system of electric furnace set 1 Including the control cabinet for melting furnace and holding furnace (Siemens is chosen for main electrical elements).
15 Process control operation system set 1 For control of servo motor and process, synchronized auto-tracking sawing machine, and control of material stock platform.
