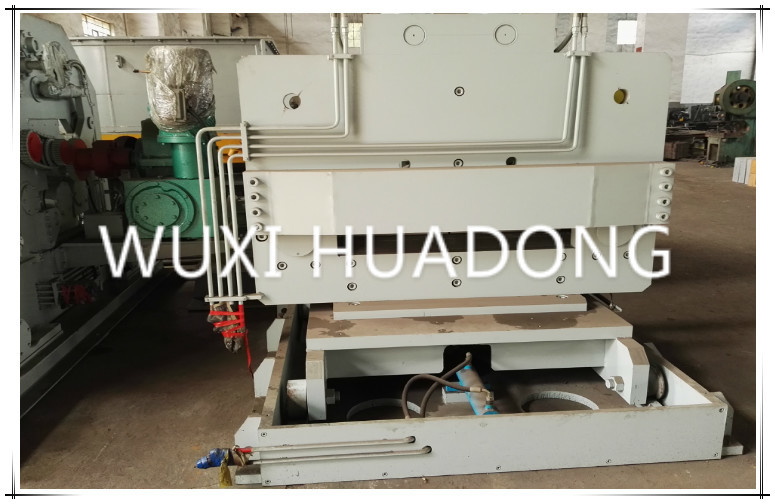

3 Strand Horizontal Continuous Casting Machine , Brass Strip Casting Machine
Ⅰ. Specifications:
| 1. Types of casting specifications * Brass,copper,bronze,cupronicke |
|
2. Plate-strip billets (rectangular-shaped) * Thickness range * width range (8--20)*(420--650) mm * Range of coil's internal diameter Φ(500--800)mm * Max. outer diameter of coils Φ1600 mm * Max. coil weight 8000 KG * Number of production lines 1--3 lines(To be decided according to section conditions) |
Ⅱ.Process:
Ⅲ.Major Technical Parameters of Equipment:
| 1.1 | Casting speed: | |
| Traction speed | 0-64 mm/s (Stepless adjustable) | |
| Backstepping speed | 0-64 mm/s (Stepless adjustable) | |
| Strip optimum line speed | 90-120mm/min | |
| 1.2 | Equipment power: | |
|
Combination furnace: Smelting Holding |
500Kw 200Kw |
|
| Traction machine | 7.5Kw | |
| Hydraulic shear stress | 80T | |
| 1.3 | Shear thickness | 20mm(max) |
| 1.4 | Coiling machine parameters | |
| Coiling weight |
6000Kg
|
|
| Inside Diameter of Coil |
Φ500-800mm
|
|
| Coil diameter | 1600mm | |
| 1.5 | Machine noise value | Less than 85 dB |
| 1.6 | Height of machine operation line | +1000mm |
| 1.7 | Machine drive direction | Right drive |
| 1.8 | Production capacity | |
| 2 Strands: 750-1200Kg/h | width: 470mm thickness: 25mm | |
| Equipment assembly machine power | 700Kw | |
Ⅳ. Main process parameters
| 1 | Output | 750-1200Kg/h |
| 2 | Temperature regulating range | ≤1300℃ |
| 3 | Temperature control precision of thermal insulation furnace | ±5℃ |
| 4 | Vertical and horizontal tolerance |
Horizontal: + 0.10mm Vertical:±0.20mm |
| 5 | Push and pull adjustment range |
Push:0-64mm/s ±0.1mm(electrodeless) Pull:0-64mm/s ±0.1mm(electrodeless) |
| 6 | Sickle curve | 1.5mm/m |
| 7 | Dragger adjustment range |
Drag:0-64mm/s ±0.1mm(electrodeless) Backsteppingl:0-64mm/s ±0.1mm(electrodeless) |
| 8 | Drag maximum line speed | 120mm/min |
| 9 | Coiling adjustment range |
Inside Diameter of coil Φ500-Φ800mm External diameter of coil Φ1600mm |
| 10 | Maximum coiling speed |
250mm/min
|
| 11 | Elastic adjustment range | 0.95-0.75 |
| 12 | Tower dgree of coiliing | ≤40m |
| 13 | Unit power consumption | 430kWh/t |
Ⅴ. Equipment parts list:
| No. | Equipment Name and Spec. | Unit | Quantity |
| 1 | Machine parts | ||
| 1.1 | Melting and holding combined furnace | set | 1 |
| 1.2 | Mould | set | 2 |
| 1.3 | Dragger | set | 1 |
| 1.4 | Hydraulic cutter | set | 1 |
| 1.5 | Coiling machine | set | 2 |
| 2 | Hydraulic system | ||
| 2.1 | Combined furnace titing hydraulic station | set | 1 |
| 2.2 | Hydraulic cutter hydraulic station | set | 1 |
| 2.3 | Dragger and coiling machine hydraulic station | set | 1 |
| 3 | Electric control system | ||
| 3.1 | Power frequency electric furnace control system | Set | 2 |
| 3.2 | Automatic control system | set | 1 |
| 4 | Technical documentation with equipment | set | 2 |
| 4.1 | Equipment installation diagram | file | 1 |
| 4.2 | Equipment specification | file | 1 |
| 4.3 | Principle diagram of electric control system | file | 1 |
| 4.4 | Control cabinet layout | file | 1 |
| 4.5 | Product specification for main electrical equipment | file | 1 |
| 4.6 | Hydraulic system diagram | file | 1 |
| 4.7 | PLC program | file | 1 |
Ⅵ. Date of Delivery:
To be delivered within 75 days after the contract becomes effective.
Ⅷ. After-sales service
1. The main body of the equipment will have one year of free warranty, and special components shall be discussed separately;
2. During the trial-production period (within 3 months after equipment commissioning is finished), our company will dispatch a professional technician for follow-up service;
Within the warranty period, if fault occurs due to quality problem, our company will dispatch personnel to the site to solve the problem within 72 hours after receiving the notice;
After the warranty period of the equipment is expired, our company will offer effective solutions within 24 hours after receiving the notice, and will dispatch personnel for maintenance work if the user fails to solve the problem, only charging the cost expenses.
For annual overhaul of equipment, our company will dispatch professional technician to join the users in formulating the turnaround plan, free of charge;
Within the warranty period, our company can dispatch professional technician to the site to check the operation condition of equipment and provide field service.
After the warranty period of equipment expires, one return visit can be made on invitation once per half a year.
3. If our company has innovation and improvement points or constructive suggestions for similar equipments, we will inform the user in time.
