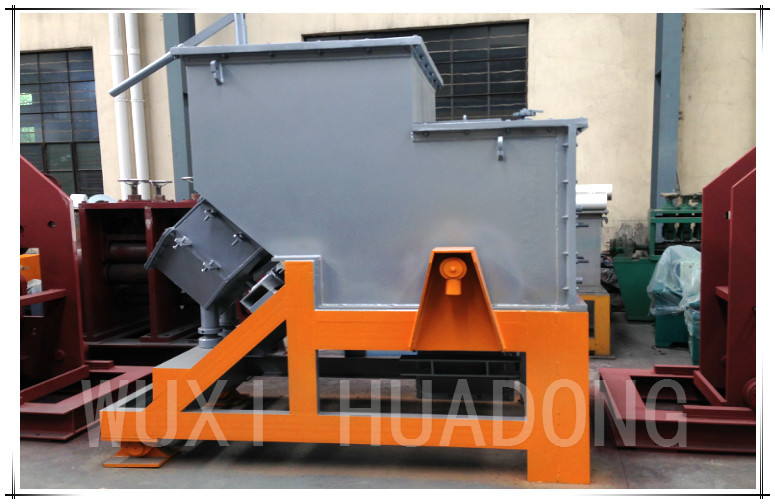

Industrial Continuous Bronze Casting Machine For 180mm Cupronickel Rod

Industrial Continuous Bronze Casting Machine For 180mm Cupronickel Rod
Industrial Continuous Bronze Casting Machine For 180mm Cupronickel Rod Industrial Continuous Bronze Casting Machine For 180mm Cupronickel Rod

Large Image :  Industrial Continuous Bronze Casting Machine For 180mm Cupronickel Rod Get Best Price

Product Details:

Place of Origin: China
Brand Name: Jingjie
Model Number: GVT

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Packed in wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T or L/C
Supply Ability: 10sets per month
Detailed Product Description

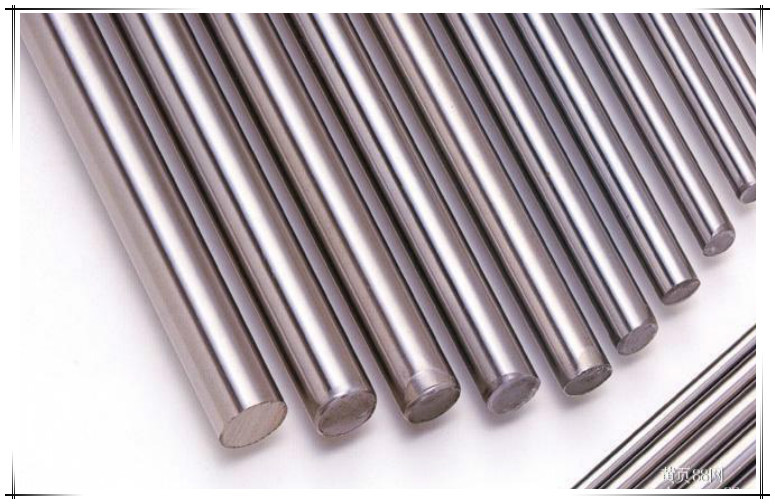

Product Material: Cupronickel Product: Rod-wire
Product Diameters: Φ180mm Type: Horizontal
Length: Customized Furnace Type: Melting And Holding High And Low Combined Furnace
High Light:

copper mould tube continuous casting machine

,

continous casting machine



Industrial Continuous Bronze Casting Machine For 180mm Cupronickel​ Rod



Wuxi East China Furnace Co.,Ltd

No.3 Bashi Furong Industrial Park,Xishan District,Wuxi City,Jiangsu Province,China
Contact person: Joey.Wong
Tel: +86 510 83788308
Fax: +86 510 83786308
Mob: +86 139 2112 5611
Wechat: 86 139 2112 5611

Whatsapp: 86 139 2112 5611

joey@wxhddl.cn



Ⅱ.Process:


   Main equipments of production line
     melting furnace, holding furnace, mold, micro-travel reversible casting machine, synchronizing shearing machines * 2, winding machines* 3, hydraulic unit, cooling unit, and electromechanical control unit etc.
        * 2.1 For casting of pure metal or special requirements, subsurface channel-type smelting-holding combination furnace or controllable channel-type smelting-holding combination furnace can be adopted;

* 2.2 For producing round-shaped, tubular-shaped and special-shaped billets, cut-to-length synchronizing sawing machine can be adopted;

* 2.3 For producing round-shaped, tubular-shaped and special-shaped billets, the material stock platform for receiving and storing billets can be adopted.




Ⅲ. Equipment Components List of  Horizontal Continuous Casting Production line for Rod-Wire

No. Equipment Name and Spec. Unit Quantity Remarks
1
2 Melting furnace  set 1 Including melting groove, coil, waer jacket and iron core.
3 Chute set 2 One in-use and one standby
4 Holding furnace  set 1 Including melting groove, coil, water jacket, iron core, vertical temperature measurement device (specially-made), thermocouple (containing platinum and rhodium) and protection tube.
5 Molten steel storage ladle and chute set 1 For transferring material into the mold after sintering in holding furnace.
6 mold system (Ф30-200) set 2 Including graphite mold
7 Dragger (5KW) set 1
8 Synchronized auto-tracking sawing machine set 1
9 Material stock platform set 1 Chain drive, length of 5M
10 Header tank set 1
11 Traction carrier roller Set 1
12 Cooling water distributor set 1 Including cooling water for transformer, reactor, coil of electric furnace, water jacket, water-cooling cable, and mold (primary and secondary cooling).
13 Hydraulic system set 2

Including hydraulic station and cylinder
(The hydraulic components produced by YUCI YUKEN HYDRAULICS CO., LTD. are adopted)

14 Electric-control operation system of electric furnace set 1 Including the control cabinet for melting furnace and holding furnace (Siemens is chosen for main electrical elements).
15 Process control operation system set 1 For control of servo motor and process, synchronized auto-tracking sawing machine, and control of material stock platform.
