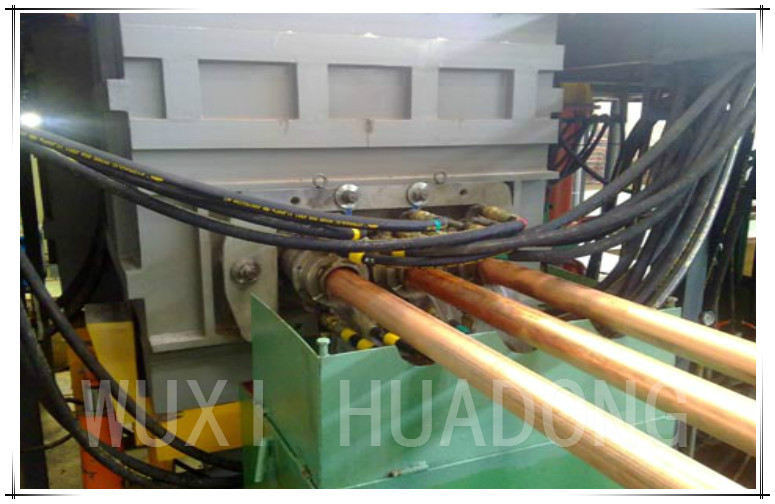

300mm Bronze Pipes Horizontal Continuous Casting Machine 0.3 Tons Melting Furnace

300mm Bronze Pipes Horizontal Continuous Casting Machine 0.3 Tons Melting Furnace
300mm Bronze Pipes Horizontal Continuous Casting Machine 0.3 Tons Melting Furnace

Large Image :  300mm Bronze Pipes Horizontal Continuous Casting Machine 0.3 Tons Melting Furnace Get Best Price

Product Details:

Place of Origin: WUXI
Brand Name: Jingjie
Model Number: GVT

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Packed in wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T or L/C
Supply Ability: 10sets per month
Detailed Product Description
Product Material: Bronze Product: Pipe
Product Diameters: Φ(28--300)mm Type: Horizontal
Thickness: 4--80 Mm Furnace Type: Melting And Holding High And Low Combined Furnace
High Light:

brass continuous casting machine

,

continous casting machine



300mm Bronze Pipes Horizontal Continuous Casting Machine 0.3 Tons Melting Furnace​







Ⅰ. Specifications:

1. Types of casting specifications

* Bronze



1.1 Hollow billets (tube-shaped)

a. Range of outer diameter Φ(28--300)mm

b. Range of wall thickness 4--80 mm

c. Number of production lines

1-- 8 lines( according to section conditions)











Ⅲ. Equipment Components List of  Horizontal Continuous Casting Production line for Rod-Wire

No. Equipment Name and Spec. Unit Quantity Remarks
1
2 Melting furnace  set 1 Including melting groove, coil, waer jacket and iron core.
3 Chute set 2 One in-use and one standby
4 Holding furnace  set 1 Including melting groove, coil, water jacket, iron core, vertical temperature measurement device (specially-made), thermocouple (containing platinum and rhodium) and protection tube.
5 Molten steel storage ladle and chute set 1 For transferring material into the mold after sintering in holding furnace.
6 mold system (Ф30-200) set 2 Including graphite mold
7 Dragger (5KW) set 1
8 Synchronized auto-tracking sawing machine set 1
9 Material stock platform set 1 Chain drive, length of 5M
10 Header tank set 1
11 Traction carrier roller Set 1
12 Cooling water distributor set 1 Including cooling water for transformer, reactor, coil of electric furnace, water jacket, water-cooling cable, and mold (primary and secondary cooling).
13 Hydraulic system set 2

Including hydraulic station and cylinder

(The hydraulic components produced by YUCI YUKEN HYDRAULICS CO., LTD. are adopted)

14 Electric-control operation system of electric furnace set 1 Including the control cabinet for melting furnace and holding furnace (Siemens is chosen for main electrical elements).
15 Process control operation system set 1 For control of servo motor and process, synchronized auto-tracking sawing machine, and control of material stock platform.



FAQ



Q1: What is your main brand for the electrical and mechanical parts?
A: China famous brand



Q2: could you please arrange the installation and commissioning ?
A: Yes , we could and the buyer pay the charge



Q3: could you arrange the production education?
A: Yes , we could and the buyer pay the charge



Q4: could you do the design for the whole plant
A: Yes , we can
