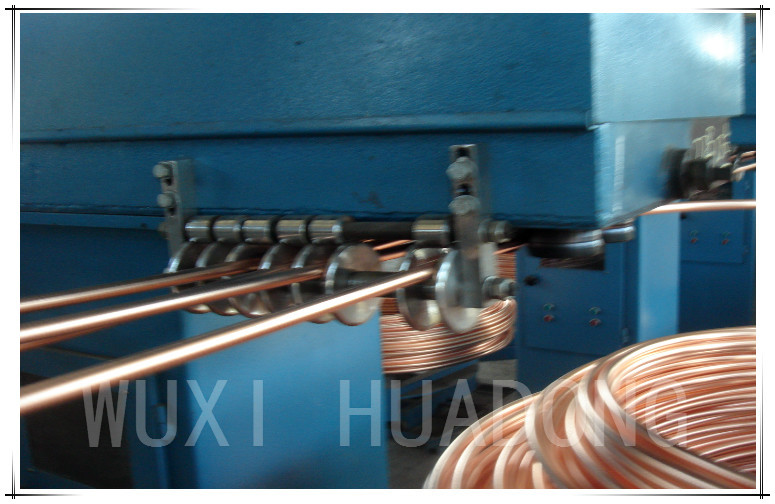

Hydraulic Copper Continuous Casting Machine , Alloy Horizontal Rod Wire Billet CCM

Hydraulic Copper Continuous Casting Machine , Alloy Horizontal Rod Wire Billet CCM
Hydraulic Copper Continuous Casting Machine , Alloy Horizontal Rod Wire Billet CCM

Large Image :  Hydraulic Copper Continuous Casting Machine , Alloy Horizontal Rod Wire Billet CCM Get Best Price

Product Details:

Place of Origin: China
Brand Name: Jingjie
Model Number: GVT

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Packed in wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T or L/C
Supply Ability: 10sets per month
Detailed Product Description
Product Name: Billet CCM Product: Rod-wire
Product Diameters: Φ(18--300)mm Type: Horizontal
Length: Custom Furnace Type: Melting And Holding High And Low Combined Furnace
High Light:

brass continuous casting machine

,

copper mould tube continuous casting machine

Hydraulic Copper Continuous Casting Machine , Alloy Horizontal Rod Wire Billet CCM​


Ⅰ. Specifications:
1. Types of casting specifications
* Alloy copper

1.1 Rod-wire billets (round-shaped)
* a. Diameter range Φ(18--300)mm
* b. Number of production lines
* 1-- 12 lines(according to section conditions)



Ⅱ.Process:

   Main equipments of production line
     melting furnace, holding furnace, mold, micro-travel reversible casting machine, synchronizing shearing machines * 2, winding machines* 3, hydraulic unit, cooling unit, and electromechanical control unit etc.
        * 2.1 For casting of pure metal or special requirements, subsurface channel-type smelting-holding combination furnace or controllable channel-type smelting-holding combination furnace can be adopted;

* 2.2 For producing round-shaped, tubular-shaped and special-shaped billets, cut-to-length synchronizing sawing machine can be adopted;

* 2.3 For producing round-shaped, tubular-shaped and special-shaped billets, the material stock platform for receiving and storing billets can be adopted.




Ⅲ. Equipment Components List of  Horizontal Continuous Casting Production line for Rod-Wire

No.Equipment Name and Spec.UnitQuantityRemarks
1
2Melting furnace set1Including melting groove, coil, waer jacket and iron core.
3Chuteset2One in-use and one standby
4Holding furnace set1Including melting groove, coil, water jacket, iron core, vertical temperature measurement device (specially-made), thermocouple (containing platinum and rhodium) and protection tube.
5Molten steel storage ladle and chuteset1For transferring material into the mold after sintering in holding furnace.
6mold system (Ф30-200)set2Including graphite mold
7Dragger (5KW)set1
8Synchronized auto-tracking sawing machineset1
9Material stock platformset1Chain drive, length of 5M
10Header tankset1
11Traction carrier rollerSet1
12Cooling water distributorset1Including cooling water for transformer, reactor, coil of electric furnace, water jacket, water-cooling cable, and mold (primary and secondary cooling).
13Hydraulic systemset2

Including hydraulic station and cylinder
(The hydraulic components produced by YUCI YUKEN HYDRAULICS CO., LTD. are adopted)

14Electric-control operation system of electric furnaceset1Including the control cabinet for melting furnace and holding furnace (Siemens is chosen for main electrical elements).
15Process control operation systemset1For control of servo motor and process, synchronized auto-tracking sawing machine, and control of material stock platform.


Ⅳ. Date of Delivery:
    To be delivered within 75 days after the contract becomes effective.

. After-sales service
    1. The main body of the equipment will have one year of free warranty, and special components shall be discussed separately;
    2. During the trial-production period (within 3 months after equipment commissioning is finished), our company will dispatch a professional technician for follow-up service;
Within the warranty period, if fault occurs due to quality problem, our company will dispatch personnel to the site to solve the problem within 72 hours after receiving the notice;
After the warranty period of the equipment is expired, our company will offer effective solutions within 24 hours after receiving the notice, and will dispatch personnel for maintenance work if the user fails to solve the problem, only charging the cost expenses.
For annual overhaul of equipment, our company will dispatch professional technician to join the users in formulating the turnaround plan, free of charge;
Within the warranty period, our company can dispatch professional technician to the site to check the operation condition of equipment and provide field service.
After the warranty period of equipment expires, one return visit can be made on invitation once per half a year.
    3. If our company has innovation and improvement points or constructive suggestions for similar equipments, we will inform the user in time.
