80mm × 80mm Steel Continuous Billet Caster Power Consumption 5 Kwh/T
1set
MOQ
negotiation
Price
80mm × 80mm Steel Continuous Billet Caster Power Consumption 5 Kwh/T
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: WUXI
Brand Name: BOLONG
Certification: CE
Model Number: R6M
High Light:

billet ccm

,

continuous billet caster

Payment & Shipping Terms
Packaging Details: Container
Delivery Time: 90days
Supply Ability: 3sets per month
Specifications
Raw Material: Steel Scrap
Product Specification: Round Or Square Billets Of 80×80 Mm
Product Length: 6m-12m
Machine Height(m): 5m-10m
Machine Arc: R4M,R6M,R8M,R11M...
Casting Speed: (1.0-3.0)m/min
Product Description



80mm × 80mm Steel Continuous Billet Caster Power Consumption 5 Kwh/T






Light type R6/R12m all arc continuous casting machine

80mm × 80mm Steel Continuous Billet Caster Power Consumption 5 Kwh/T 0

Standard type R6/R12m all arc continuous casting machine

80mm × 80mm Steel Continuous Billet Caster Power Consumption 5 Kwh/T 1

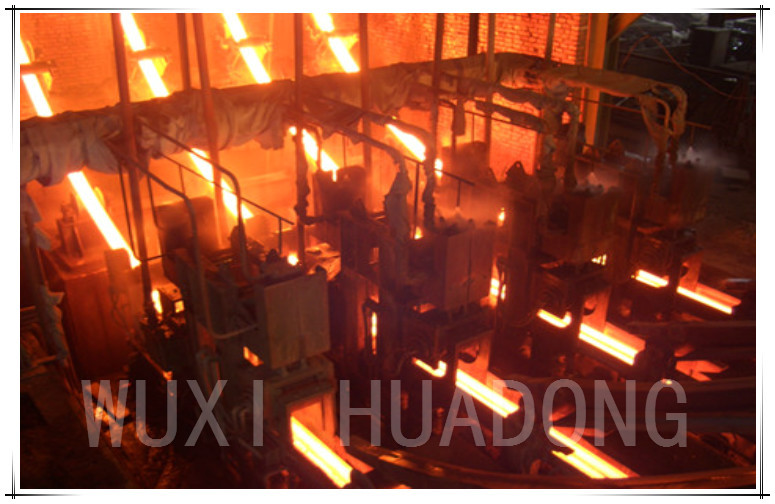

Steel Billet Continuous Casting Machine(CCM)



Item

R2.5M

R4M

R5.25M

R6M

Mode

Continuous regulation full arc

Arc radius(m) 2.5 4 5.25 6
Strand number 1 1 1,2 2,3,4
Annual productivitu(T/Y) 20000-40000 30000-50000 80000-120000 150000-200000
Cast section(mm2) 60×60

70×70
80×80

100×100
100×100

120×120
120×120

150×150
Cable length(m) 10 10 10-15 20
Rated length(m) 3-6 3-6 3-8 3-9
Cast peed(m/min) 1.2 1.8 2-3 2.5
Max speed(m/min) 2 2.5 3-4 4
Ingot leading pole Rigidity leading pole
Machine height(m) 5 7 8 8
Floor space(m2) 4*20 5*20 8*25 10*38
Rated power(kW) 50 37+60(water pump) 200 250
Power consumption(kWh/t) 5 5 10-15 15




Equipment Introduction
This continuous casting machine is designed and manufactured according to user’s request and is used for continuously casting the square billet, the cross section of which is80×80 mm with length of 6m/12m operated by automatic control system. We can providesingle strand, double strands and multiple strands CCM as well as straightening machine, automatic cutting machine, billet cooling bank, billet spreader, molten steel spreader and other auxiliary devices and facilities such as soft water treatment and water cooling system. We are also the provider of turn key project proposal.



Company Brief Introduction

Wuxi Haili Hydraulic and Phneumatic Technology Co.,Ltd is an an integrated professional metallurgy machinery manufacturer, capable of providing Equipment Design, Manufacture, Installation, and Commissioning. Our factory is competent to produce all kinds of continuous casting machine with radius from 3 meters to 13 meters, such as round billet, square billets and slabs.
