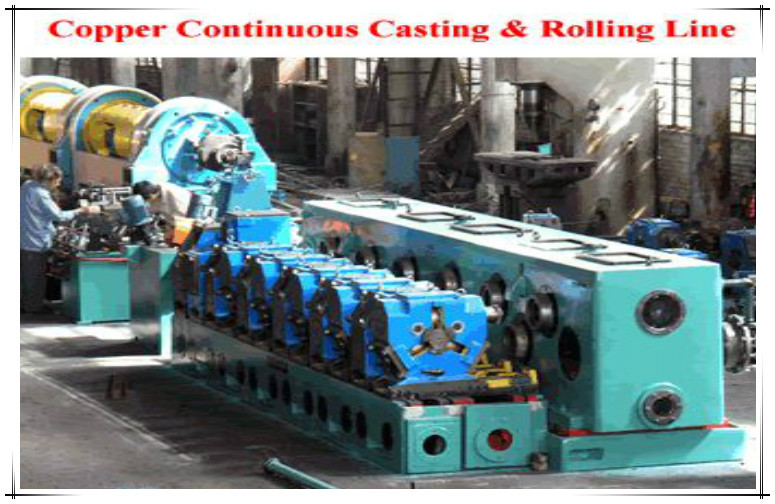

Oval Circular Holes Φ250 Cold Rolling Mill , Copper Rod Two Roll Mill
1set
MOQ
negotiation
Price
Oval Circular Holes Φ250 Cold Rolling Mill , Copper Rod Two Roll Mill
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Jingjie
Model Number: TZJ-250
High Light:

cold rolling machine

,

cold roll mill

Payment & Shipping Terms
Packaging Details: Packed in wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T or L/C
Supply Ability: 10sets per month
Specifications
Product Material: Φ250 Copper Rod
Product: Φ17-Φ7.8 Copper Wire
Motor Power: 110kw
Type: 2-roll
Product Description



Oval Circular Holes Φ250 Cold Rolling Mill , Copper Rod Two Roll Mill




Main technical parameters

Type 250 8 frame
Roll diameter Φ250
Motor power 110kw
Maximum rolling material(mm) Φ17
Product specification (mm) Φ7.8
Rolling form Two rolls alternation of horizontal and vertical to rolling
Shape of holes Oval circular
Number of rolling 8
Total coefficient of elongation 4.51
Finishing rolling speed(m/s) 1.65





Cold drawing machine
Main technical parameters

Type LW5 LW8 LW10 LW15 LW20 LW30 LW40 LW60
Rated drawing force 50x10³ 80x10³ 100x10³ 150x10³ 200x10³ 300x10³ 400x10³ 600x10³
Maximum admitted diameter Φ30 Φ32 Φ40 Φ45 Φ45 Φ50 Φ60 Φ80
Maximun Reducing Rale 20 30 30 30 30 30 30 30
Drawing Speed 10 10 10 9 9 9 9 9
No. Of Drawing Length 2 4 6 6 8 8 8 8
Maximun Drawing Length 8 8 10 10 10 10 10 10
Returning Speed of the Vehice 60 60 60 60 60 60 60 60
Motor Power 18.5 30 37 45 55 75 90 115
Motor Speed 980 980 980 980 980 740 740 740
Speed Raducer Type JZQ500 JZQ650 JZQ750 JZQ850 JZQ1000 ZS1150 JZQ1250 JZQ1350
Total Weight 6000 8000 11000 15000 22000 31000 40000 45000







Wuxi Huadong Industrial Furnace Co.,Ltd
Welcome to visit and inspect!
Contact persone: Angel Zhang
Contact phone:+86-13921168736
Email: wxzhangying@126.com
