F12.5 Electric Cold Rolling Mill , Copper Continuous Extrusion Machine
1set
MOQ
negotiation
Price
F12.5 Electric Cold Rolling Mill , Copper Continuous Extrusion Machine
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Jingjie
Model Number: TBJ350
High Light:

cold rolling machine

,

cold roll mill

Payment & Shipping Terms
Packaging Details: Packed in wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T or L/C
Supply Ability: 10sets per month
Specifications
Material Type: F12.5
Product Scope Of Section: 6-300mm2
Motor Power: 110kw
Type: TBJ300
Main Motor Power: 90kW
Average Productivity: 450kg/h
Product Description



F12.5 Electric Cold Rolling Mill , Copper Continuous Extrusion Machine



Detailed Product Description

Main Technical Parameters TBJ300 Copper extrusion machine Aluminium extrusion machine
Extrusion wheel nominal diameter 300mm 300mm
Main motor power 90kW 90kW
Installed power 110kw 110kw
Extrusion machine speed 4-12.5m/rpm 22.5 m/rpm
Types of materials On oxygen free copper rod Pure aluminum, aluminum alloy
rod diameter F12.5 F9.5/12
Product scope of section 6-300mm2 5-150mm2
Product maximum width Flat wire 50 mm Flat wire, 30 mm flat tube, pipe diameter 20 mm
Round bar diameter 25 mm maximum
Average productivity 450kg/h 230kg/h
Material overflow rate 1-3% 0


Application: copper flat wire, copper busbar, commutator, contact wires for electric locomotive, transformer, big and middle sized motor, high-low voltage switch electric appliance, DC electric commutator and so on

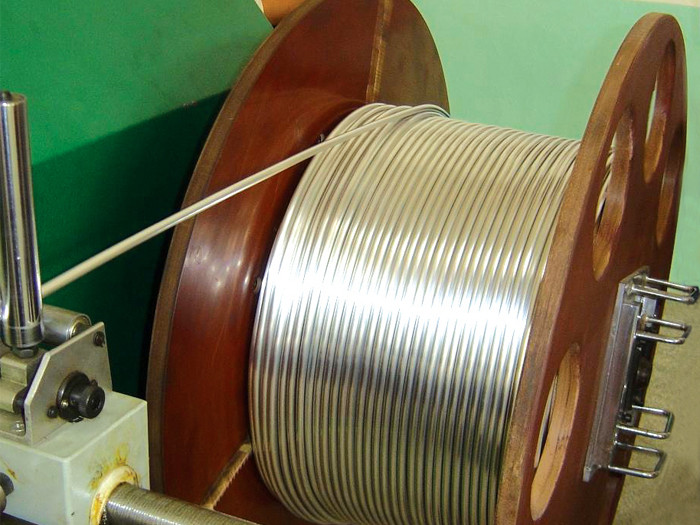

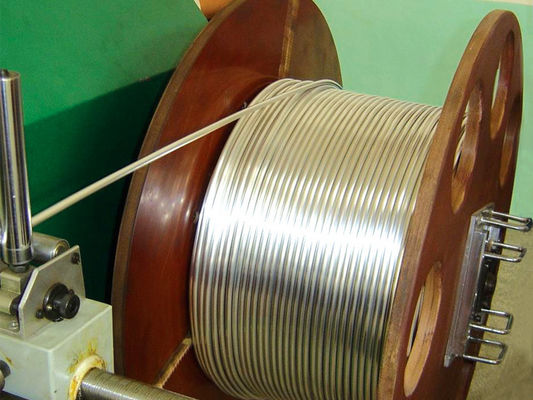

This production line is composed of pay-off⇒(brush foe aluminum rod)⇒straightener⇒main engine⇒ cooling system⇒take-up machine and electrical controlling unit.

One TBJ300 continuous extrusion product line can be used both for copper and aluminum rod just changing extrusion wheel .





Company introduction

Riyue Machinery, former Changzhou Electrician Machinery Plant with more than 40 years history, mainly produces aluminum and copper continuous extrusion machine(conform machine) ,hydraulic drawing machine and automatic tin plate machine for more than 15 years.
♦The machine can be used to produce copper(aluminum) flat wire ,copper(aluminum) bar,commutator,contact wires for electric locomotive and other solid copper(aluminum)material.
♦Till now,our products were served in thousands users in the world,such as Russia,Canada,Turkey,Korea,Taiwan,India,Iran and so on.


♦With floor area of more than 90,000 square meters and building area of more than 40,000 square meters as well as more than 300 employees, the company has complete processing equipments and strong technological strength. It has become a large-scaled company with annual production capacity of more than 200 sets of extruding machines.



♦Quality makes competitive products, and credit makes brand. Our company strictly adheres to the ISO9001:2000 standard. Any old or new customers at home and abroad are warmly welcomed to have inspection in our company and give us the guidance. We sincerely hope to cooperate with you, develop both sides, and create rosy tomorrow together.



Enterprise perspective: Cast an enterprise last for centuries.

Company spirit: Be united and pragmatic, make pioneering efforts and forge ahead.

Company Policy: To be honest, credit first, customer first.



Our company can perform specific designing and developing according to customers' specific requirements.
