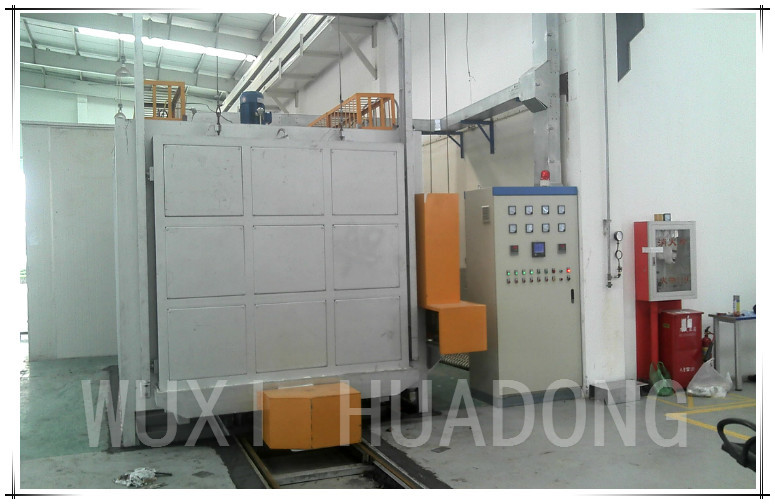

5T Copper Bar Bogie Hearth Furnace , Bright Vacuum Annealing Furnace
Internal furnace effective size Φ900 * 7500mm
Temperature control area:3 area
Atmosphere protection type:nitrogen + hydrogen 100+4
|5||Import and export charging rack||1set|
|6||Electric control system||1set|
1 the car body and the furnace steel, steel, iron, welding processing.
The use of lightweight refractory brick lining and insulation material heating element.
Material: 0Cr25M, trolley import and export drive for the gear reducer.
2 furnace and furnace charging box: made of 1Cr18Ni9Ti
The thickness of stainless steel is S=8mm, the S=6mm can be used to suppress the corrugated type, high strength, small deformation, long life and so on.
The loading frame and the outer frame, using 1Cr18Ni9Ti stainless steel lining plate.
Material platform mechanism:
the use of chain type in and out of the device.
the use of three zone temperature control, SCR PID automatic control, the district has a recording instrument, temperature control instrument can be programmed to achieve the technological requirements. And with super temperature, under temperature alarm function. Other electrical components adopt brand products.
After sales service:
from the installation process, debugging, accessories to provide a full range of services.
Delivery period: 60 days after the commencement of the contract delivery.
