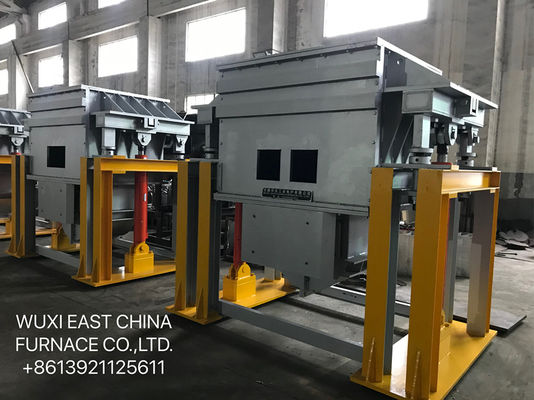

Cored Induction Copper Brass Bronze Melting Furnace , Upcasting Continuous Frequency Induction Furnace
1set
MOQ
negotiation
Price
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Jingjie
Certification: ISO/CE
Model Number: GVT
Payment & Shipping Terms
Packaging Details: Packed in wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T or L/C
Supply Ability: 10sets per month
Specifications
Product Material: Red Copper
Power: 1200kw
Rated Voltage: 600V
Phase Number: 3 Phase
Frequency: 60Hz
Maximum Melting Rate: 5t/h
Warranty: 12 Months
After Sales Service: Send Engineers To Overseas
Product Description



Cored Induction Copper Brass Bronze Melting Furnace , Upcasting Continuous Frequency Induction Furnace

Cored Induction Copper Brass Bronze Melting Furnace , Upcasting Continuous Frequency Induction Furnace 0Cored Induction Copper Brass Bronze Melting Furnace , Upcasting Continuous Frequency Induction Furnace 1Cored Induction Copper Brass Bronze Melting Furnace , Upcasting Continuous Frequency Induction Furnace 2


Power frequency induction  furnace for semi continuous casting unit


1 Technical parameters
Copper Melting Furnace Rated power: 600kW * 2
Copper Melting Furnace Rated voltage: 600V
Copper Melting Furnace Phase number: 3 phase
Copper Melting Furnace Frequency: 60Hz
Copper Melting Furnace Power factor: 0.45 ~ 0.5 (compensation) 1 ~ 0.9 (compensation)
The cooling water temperature that is not higher than 40 DEG (coil, water jacket, water temperature measuring device)
Cooling water: 20 ~ 40t/h
Cooling water pressure: 0.2 ~ 0.4MPa
Groove type: W type rectangular jet melting groove


2 Scope of supply

NO   NAME  SPECIFICATION   QUANTITY
1 1200kw Melting furnace   1set
2 Electric control 1200kw 1set
3 Furnace building material

4

Water jacket, coil, iron core, melting channel 1200kw 1set
5 Hydraulic tilting system With emergency stop switch, limit switch 1set
6 Water cooled cable

400V,750KVA

4pcs
7 Auto-transformer   2set
8 Interphase reactor

400V, 430KVAR

2set
9 Cooling water distribution and collection device                     1set


3 Main technical indicators of equipment


The main electrical components used in the domestic well-known brand products, furnace body using vertical structure, material using Q235, thickness of 16mm steel welded. Iron core is made of Wuhan Iron and steel 35Q135 high quality silicon steel sheet; melting ditch the T2 copper casting and; water-cooled sleeve adopts 3mm thick 1Cr18Ni9Ti welding; coil with 22 x 14.5 x 3mm thickness T2 hollow tube winding and; hydraulic system main fittings adopt Yuci production of products;
Two, 10T wire rod semi continuous casting machine

Wuxi East China Furnace Co.,Ltd
No.3 Bashi Furong Industrial Park,Xishan District,Wuxi City,Jiangsu Province,China
Tel: +86 510 83788308
Fax: +86 510 83786308
Mob: +86 139 2112 5611
Wechat: 86 139 2112 5611
Whatsapp: 86 139 2112 5611

Email: joey@wxhddl.cn

         joe.777@outlook.com
