PLC Control Steel Continuous Casting Machine 3 Strand for 120×120 Billets

I'm Online Chat Now
China Wuxi Huadong Industrial Electrical Furnace Co.,Ltd. certifications
China Wuxi Huadong Industrial Electrical Furnace Co.,Ltd. certifications
Great business partner, also great friend in China. Thanks for your help on my orders.

—— Mr Mohamed Sadani

Wuxi East China Furnace Co.,Ltd is one of my best suppliers. I appreciate their honest, and their good quality.

—— Mr Pravinsinh K.Vaghela

PLC Control Steel Continuous Casting Machine 3 Strand for 120×120 Billets

PLC Control Steel Continuous Casting Machine 3 Strand for 120×120 Billets
PLC Control Steel Continuous Casting Machine 3 Strand for 120×120 Billets PLC Control Steel Continuous Casting Machine 3 Strand for 120×120 Billets

Large Image :  PLC Control Steel Continuous Casting Machine 3 Strand for 120×120 Billets Get Best Price

Product Details:

Place of Origin: WUXI
Brand Name: BOLONG
Certification: CE
Model Number: R6M

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Container
Delivery Time: 90days
Supply Ability: 3sets per month
Detailed Product Description
Raw Material: Steel Scrap Product Specification: Billets Of 120×120 Mm
Product Length: 6m-12m Product Strand: According To Customer Needs
Machine Arc: R6M Casting Speed: (1.0-3.0)m/min
High Light:

continuous steel casting machine

,

continuous casting machine for steel



PLC Control Steel Continuous Casting Machine 3 Strand for 120×120 Billets





Introduction
This continuous casting machine is designed and manufactured according to user’s request and is used for continuously casting the square billet, the cross section of which is 120×120 mm with length of 6m/12m operated by automatic control system. We can providesingle strand, double strands and multiple strands CCM as well as straightening machine, automatic cutting machine, billet cooling bank, billet spreader, molten steel spreader and other auxiliary devices and facilities such as soft water treatment and water cooling system. We are also the provider of turn key project proposal.

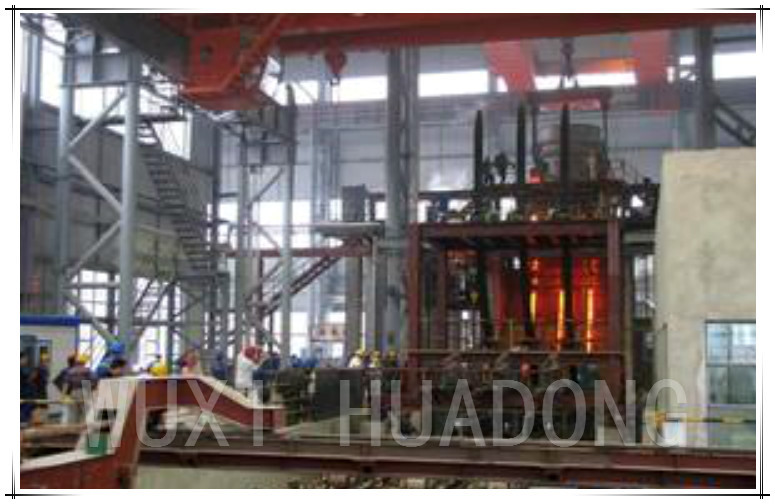

Light type R6/R12m all arc continuous casting machine

PLC Control Steel Continuous Casting Machine 3 Strand for 120×120 Billets 0

Standard type R6/R12m all arc continuous casting machine

PLC Control Steel Continuous Casting Machine 3 Strand for 120×120 Billets 1

Steel Billet Continuous Casting Machine(CCM)



Item

R2.5M

R4M

R5.25M

R6M

Mode

Continuous regulation full arc

Arc radius(m) 2.5 4 5.25 6
Strand number 1 1 1,2 2,3,4
Annual productivitu(T/Y) 20000-40000 30000-50000 80000-120000 150000-200000
Cast section(mm2) 60×60

70×70
80×80

100×100
100×100

120×120
120×120

150×150
Cable length(m) 10 10 10-15 20
Rated length(m) 3-6 3-6 3-8 3-9
Cast peed(m/min) 1.2 1.8 2-3 2.5
Max speed(m/min) 2 2.5 3-4 4
Ingot leading pole Rigidity leading pole
Machine height(m) 5 7 8 8
Floor space(m2) 4*20 5*20 8*25 10*38
Rated power(kW) 50 37+60(water pump) 200 250
Power consumption(kWh/t) 5 5 10-15 15
