Full-Automatic Billet Continuous Casting Machine Cooper Brass Bronze Caster Made in China
Introduction

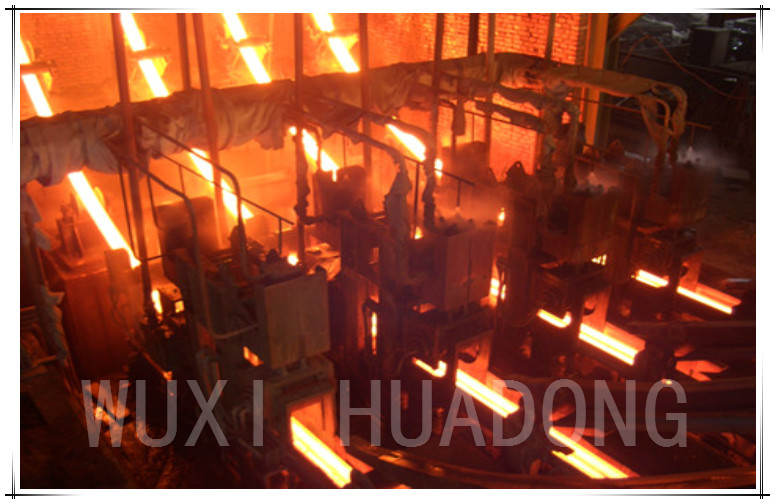

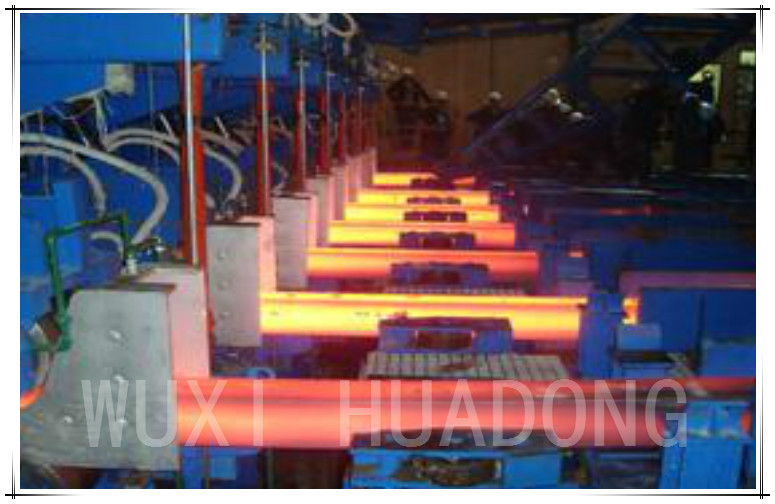

This continuous casting machine is designed and manufactured according to user’s request and is used for continuously casting the square billet, the cross section of which is 80×80,100×100,120×120 mm with length of 6m/12m operated by automatic control system. We can providesingle strand, double strands and multiple strands CCM as well as straightening machine, automatic cutting machine, billet cooling bank, billet spreader, molten steel spreader and other auxiliary devices and facilities such as soft water treatment and water cooling system. We are also the provider of turn key project proposal.

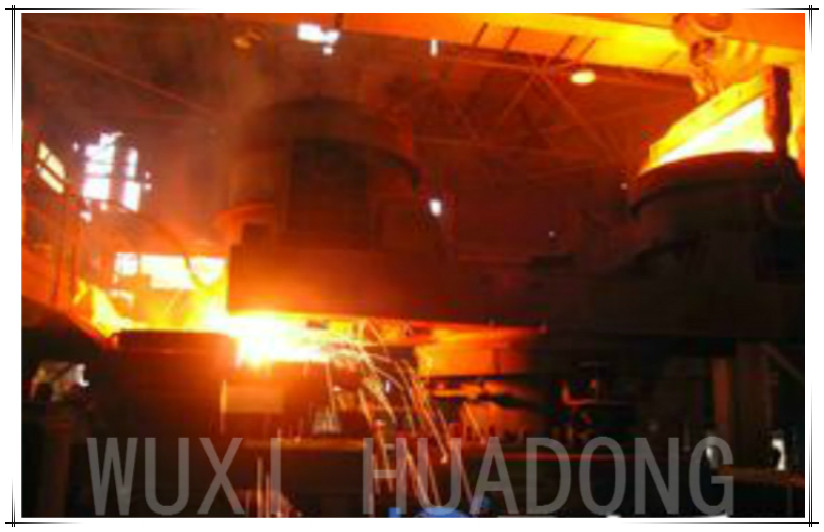

Dumping ladle type R4/R8m all arc continuous casting machine
Ladle car type R4/R8m all arc continuous casting machine
Item |
R2.5M |
R4M |
R5.25M |
R6M |
---|---|---|---|---|
Mode |
Continuous regulation full arc |
|||
Arc radius(m) | 2.5 | 4 | 5.25 | 6 |
Strand number | 1 | 1 | 1,2 | 2,3,4 |
Annual productivitu(T/Y) | 20000-40000 | 30000-50000 | 80000-120000 | 150000-200000 |
Cast section(mm2) | 60×60
|
80×80
|
100×100
|
120×120
|
Cable length(m) | 10 | 10 | 10-15 | 20 |
Rated length(m) | 3-6 | 3-6 | 3-8 | 3-9 |
Cast peed(m/min) | 1.2 | 1.8 | 2-3 | 2.5 |
Max speed(m/min) | 2 | 2.5 | 3-4 | 4 |
Ingot leading pole | Rigidity leading pole | |||
Machine height(m) | 5 | 7 | 8 | 8 |
Floor space(m2) | 4*20 | 5*20 | 8*25 | 10*38 |
Rated power(kW) | 50 | 37+60(water pump) | 200 | 250 |
Power consumption(kWh/t) | 5 | 5 | 10-15 | 15 |
