Round Billet Red Copper Semi Continuous Casting Equipment With 600KW Smelting Furnace
Round Billet Red Copper Semi Continuous Casting Equipment With 600KW Smelting Furnace
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: Jingjie
Model Number: GVT
High Light:

vertical caster


ccm machine

Payment & Shipping Terms
Packaging Details: Packed in wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T or L/C
Supply Ability: 10sets per month
Equipment Type: Vertical
Mode Of Production: Semi-continuous
Product Material: Red Copper
Smelting Furnace Power: 600KW
Smelting Furnace Capacity: 2.5T
Production Output: 5Tons
Product Description


Round Billet Red Copper Semi Continuous Casting Equipment With 600KW Smelting Furnace



Ⅰ. Specifications:

1. Types of casting specifications

*  Red copper


1.1 Hollow billets (tube-shaped)

a. Thickness range * width range ( 80-- 300)*(420-- 1200) mm 1.2 Hollow billets (tube-shaped)

b. Length To be decided according to customers' requirements

c. Number of production lines To be decided according to sections and output

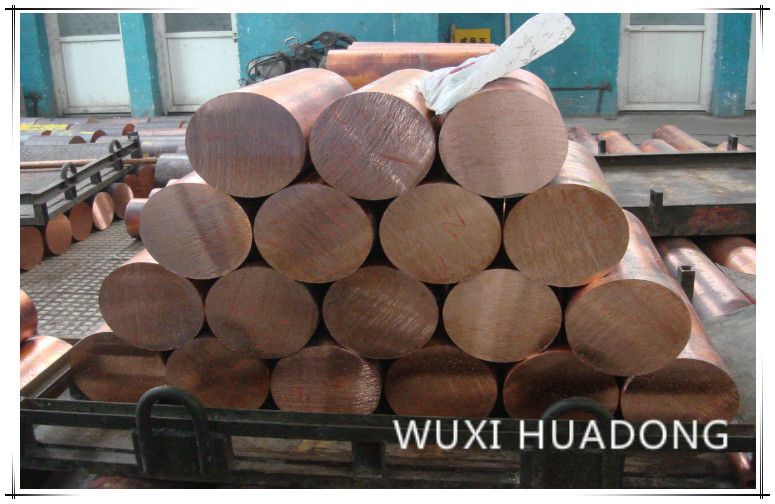

1.2 Round-shaped billets

a. Diameter range Φ( 80-- 350) mm

b. Length To be decided according to customers' requirements

c. Number of production lines To be decided according to sections and output

To be decided according to customers' requirements in near-the-net-shape sections


Ⅱ.Program example

1. Round Billet specification

   Diameter range Φ( 80-- 350) mm

2. Effective casting weight:≥5t

3. Melting furnace area (including furnace): 5000 * 7000mm
4. Platform height: 2500mm
5. The lead casting machine covers area:4000 * 2500mm
6. Casting guide wells width: 2500 x 2500 x depth 6000mm
7. Furnace cooling water: 15m³ /h
8. Mould cooling water: 12m³ /h


Ⅲ. Composition of equipment:

    Melting furnace, mould device trolley and mould, wire rod semi continuous guide casting machine (hereinafter referred to as the guide casting machine), water cooling system, hydraulic system, electric control system, special tooling.

1.1 Melting furnace

    The melting furnace is the first core equipment in the production line,it has a large capacity, high power requirements.the following characteristics of the furnace.

1.1.1.  Vertical barrel shaped furnace body, with a simple masonry furnace, feeding, covering, cleaning and other operations. The advantages of convenient construction materials, small occupation area, low surface heat radiation and low power consumption, etc.

1.1.2.  Using the "W" type of jet melting groove, reduce the melt temperature difference;
3 the use of a water cooling channel can be unloaded sensor, enhance the component compatibility

1.1.3.  Using of a water cooling channel can be unloaded sensor, enhance the component compatibility;

1.1.4   Tilting furnace and furnace cover are operated by hydraulic pressure, operating balance and reliable structure;

1.1.5    Rectangular mouth, for 1100 x 900mm cathode copper raw material can not cut
Cut, whole feeding;

1.1.6     Furnace refractory materials used brand manufacturers to supply high performance induction furnace.

1.1.7  Technical parameters
1.2.1 Rated capacity: 2.5t

1.2.2 Maximum capacity: 3.5t
1.2.3 Rated power: 600kW

1.2.4 Rated voltage: 600V
1.2.5 Melting rate: 2.2t/h

1.2.6 Power consumption: less than 280kwh/t
1.2.7 Working temperature: 1250

1.2.8 Cooling water comsumption:4~5m³/h


1.2  Lead casting machine

1.2.1 Technical parameters :    Maximum bearing capacity of more than or equal to 10t    Effective bearing capacity: >6t    Length of screw rod: 7800mm    Screw diameter: Tr220 * 18mm    Rod length: 7500mm    Rod diameter: diameter 315mm    Maximum working stroke: 6500mm    Drive motor: AC synchronous servo motor,    Drive motor power: 7.5KW.  Lead casting speed: 0 ~ 320mm/min,  Stepless adjustable  Fast return speed: more than 500mm/min  Silk lubrication: Nominal flow 50mL/min,  Nominal pressure 20MPa


1.3  Mould trolley
    The crystallizer car for crystal fixed device, it can lateral movement for loading and unloading mould, guide and cast the head and the lifting of the ingot, mould trolley has positioning and locking device, to so that the car can firmly in the lead cast position by car to replace the relief panel, can adapt to different specifications and flow number of crystallizer. Configuration of frequency conversion vibration motor drive device, its power is 2.2kW, the vibration frequency is 0 ~ 160 times /min, the amplitude is 0 ~ 12mm.


1.4  Mould
    The inner wall of the crystallizer materials for copper (also by party a production resources, zirconium and copper), graphite impregnated set is in favor of improving the surface quality. In addition to conventional methods, the principle of continuous casting of steel can be drawn from the use of a narrow slit type high water speed cooling mold to facilitate the effective avoidance of partial boiling of cooling water.
    Technical parameter:
Cooling water pressure: 0.05 ~ 0.15MPa   cooling water comsumption: 80 ~ 100m³/h


1.5 Protective atmosphere cover
    The protective atmosphere cover can be through the gas protective agent (industrial gas) to protect the liquid level inside the crystallizer, reduce the defects of oxide slag.


1.6 Water cooling system
    The water cooling system is mainly used for the cooling of production line equipment, namely for the sensor shell, a coil, a water jacket, a water cooled cable, transformer, phase equilibrium reactor; it consists of a water dispenser, backwater collector and associated piping, valves and other, including return type can by pressure and two kinds of pressure for the Party of choice; has functions such as water pressure, backwater temperature display, control and alarm, interlock.
    Technical parameter:
1.6.1 Inlet pressure: 0.3 ~ 0.4MPa,

1.6.2 Inlet temperature: 5 ~ 45 degrees,

1.6.3 Water consumption: 18 ~ 20t/h
1.6.4 Outlet temperature: less than 55℃,

1.6.5 Allowing the temperature to rise: less than 20℃ (at the maximum inlet temperature),
1.6.6 Total hardness (CAO): less than 10mg equivalent /L,

1.6.7 Water resistance: greater than 2000 / cm.


1.7 Hydraulic system
    The hydraulic system for melting furnace lifting tilting, a furnace cover open and closed and insulation pouring furnace before and after walking, lifting and dumping, opening and closing lid, adopts hydraulic station centralized supply pressure liquid, electro-hydraulic valve control.
Basic parameters: oil tank (appearance): 1300 * 900 * 700mm (stainless steel)
Effective capacity: 600L
Rated working pressure: 16MP
Nominal flow rate: 40L/min
Oil pump motor: 15kw * 2 (one use, one standby)


1.8 Electronic control system
    Electric control system of the unit are respectively controlled melting furnace, lead casting machine, water cooling system, hydraulic system, our company provide mature and stable electrical control equipment to complete the necessary operating functions according to the requirements of the production of each link, control systems and electrical components used in all domestic and foreign well-known manufacturers of the original product, and left a certain margin capacity, to ensure that the equipment reliability and applicability. Among them:
    The guide casting machine servo driven by imported brands (Japan Yaskawa 7.5kW servo system) high torque digital AC servo system.


Ⅲ. Equipment Components List of Vertical Continuous Casting Production line for Round Billets

No. Equipment Name and Spec. Unit Quantity Remarks
1 Semi continuous casting furnace set 1 600KW
2 5T wire rod semi continuous casting machine set 1
3 Mould trolley set 1
4 Mould  set 1
5 Casting machine transmission system set 1
6 Casting machine power system set 1
7 Dummy bar head of mould set 1
8 Length control system set 1
9 Cooling water distributor set 1
10 Hydraulic system set 1


11 Electric-control operation system   et 1


We have professinal group people with full experience of researching, designing, developing of horizontal continuous casting technonology, we adopt AUTO CAD software to provide precision design and manufacture of machines for our customers and all our machines are customized exactly.


We always pay more attention on the quality of machines, after finishing making assembly and adjusting of machines, our technician will test each machine to assure the good quality of machine to reach good finished shape profile as client required.
