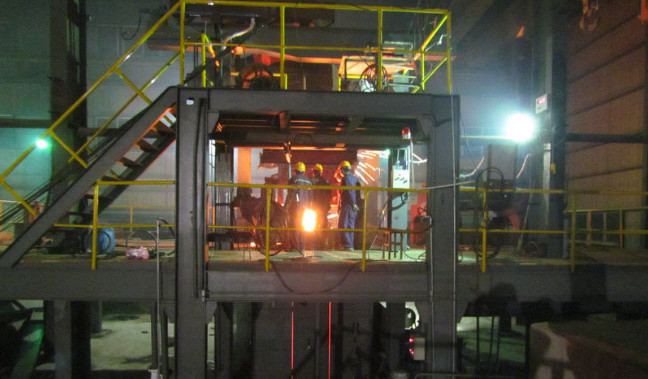

Energy Saving Steel Continuous Casting Machine , R4M Continuous Billet Caster
Item |
R2.5M |
R4M |
R5.25M |
R6M |
---|---|---|---|---|
Mode |
Continuous regulation full arc |
|||
Arc radius(m) | 2.5 | 4 | 5.25 | 6 |
Strand number | 1 | 1 | 1,2 | 2,3,4 |
Annual productivitu(T/Y) | 20000-40000 | 30000-50000 | 80000-120000 | 150000-200000 |
Cast section(mm2) | 60×60
|
80×80
|
100×100
|
120×120
|
Cable length(m) | 10 | 10 | 10-15 | 20 |
Rated length(m) | 3-6 | 3-6 | 3-8 | 3-9 |
Cast peed(m/min) | 1.2 | 1.8 | 2-3 | 2.5 |
Max speed(m/min) | 2 | 2.5 | 3-4 | 4 |
Ingot leading pole | Rigidity leading pole | |||
Machine height(m) | 5 | 7 | 8 | 8 |
Floor space(m2) | 4*20 | 5*20 | 8*25 | 10*38 |
Rated power(kW) | 50 | 37+60(water pump) | 200 | 250 |
Power consumption(kWh/t) | 5 | 5 | 10-15 | 15 |
