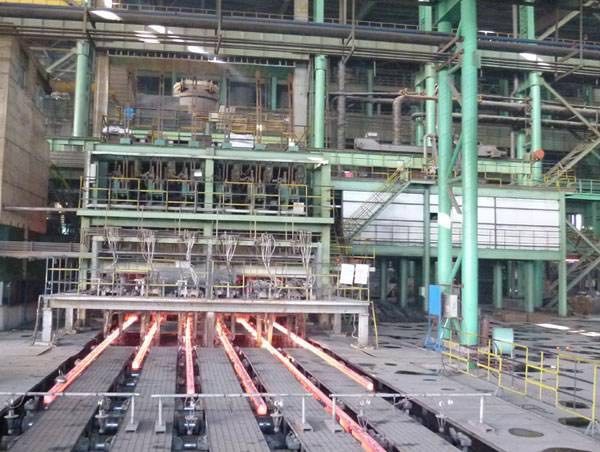

Industrial Steel Billet Continuous Caster Machine Power Consumption 5 kWh/t
1set
MOQ
negotiation
Price
Industrial Steel Billet Continuous Caster Machine Power Consumption 5 kWh/t
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: WUXI
Brand Name: BOLONG
Certification: CE
Model Number: R4M
High Light:

continuous steel casting machine

,

continuous casting machine for steel

Payment & Shipping Terms
Packaging Details: Container
Delivery Time: 90days
Supply Ability: 3sets per month
Specifications
Raw Material: Steel Scrap
Product Specification: Billets Of 80×80,100×100,120×120 Mm
Product Length: 6m-12m
Product Strand: According To Customer Needs
Machine Arc: R4M
Casting Speed: (1.0-3.0)m/min
Product Description



Industrial Steel Billet Continuous Caster Machine Power Consumption 5 kWh





Introduction
This continuous casting machine is designed and manufactured according to user’s request and is used for continuously casting the square billet, the cross section of which is 80×80,100×100,120×120 mm with length of 6m/12m operated by automatic control system. We can providesingle strand, double strands and multiple strands CCM as well as straightening machine, automatic cutting machine, billet cooling bank, billet spreader, molten steel spreader and other auxiliary devices and facilities such as soft water treatment and water cooling system. We are also the provider of turn key project proposal.

Steel Billet Continuous Casting Machine(CCM)



Item

R2.5M

R4M

R5.25M

R6M

Mode

Continuous regulation full arc

Arc radius(m) 2.5 4 5.25 6
Strand number 1 1 1,2 2,3,4
Annual productivitu(T/Y) 20000-40000 30000-50000 80000-120000 150000-200000
Cast section(mm2) 60×60

70×70
80×80

100×100
100×100

120×120
120×120

150×150
Cable length(m) 10 10 10-15 20
Rated length(m) 3-6 3-6 3-8 3-9
Cast peed(m/min) 1.2 1.8 2-3 2.5
Max speed(m/min) 2 2.5 3-4 4
Ingot leading pole Rigidity leading pole
Machine height(m) 5 7 8 8
Floor space(m2) 4*20 5*20 8*25 10*38
Rated power(kW) 50 37+60(water pump) 200 250
Power consumption(kWh/t) 5 5 10-15 15



QC Profile



We have professinal group people with full experience of researching, designing, developing of horizontal continuous casting technonology, we adopt AUTO CAD software to provide precision design and manufacture of machines for our customers and all our machines are customized exactly.



We always pay more attention on the quality of machines, after finishing making assembly and adjusting of machines, our technician will test each machine to assure the good quality of machine to reach good finished shape profile as client required.





Welcome to visit and inspect!

Contact persone: Angel Zhang

Wuxi East China Furnace Co.,Ltd
No.3 Bashi Furong Industrial Park,Xishan District,Wuxi City,Jiangsu Province,China
Contact person: Joey.Wong
Tel: +86 510 83788308
Fax: +86 510 83786308
Mob: +86 139 2112 5611
Wechat: 86 139 2112 5611
Whatsapp: 86 139 2112 5611
Email: joey@wxhddl.cn
