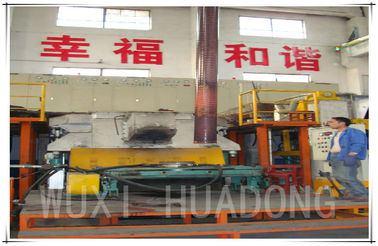

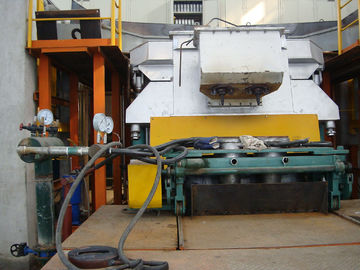

Cored Oxygen Free Copper Brass Bronze Melting Furnace , Semi Continuous Frequency Induction Furnace
Power frequency induction furnace for semi continuous casting unit
1 Technical parameters
Copper Melting Furnace Rated power: 600kW * 2
Copper Melting Furnace Rated voltage: 600V
Copper Melting Furnace Phase number: 3 phase
Copper Melting Furnace Frequency: 60Hz
Copper Melting Furnace Power factor: 0.45 ~ 0.5 (compensation) 1 ~ 0.9 (compensation)
The cooling water temperature that is not higher than 40 DEG (coil, water jacket, water temperature measuring device)
Cooling water: 20 ~ 40t/h
Cooling water pressure: 0.2 ~ 0.4MPa
Groove type: W type rectangular jet melting groove
2 Scope of supply
NO | NAME | SPECIFICATION | QUANTITY |
1 | 1200kw Melting furnace | 1set | |
2 | Electric control | 1200kw | 1set |
3 | Furnace building material | ||
4 |
Water jacket, coil, iron core, melting channel | 1200kw | 1set |
5 | Hydraulic tilting system | With emergency stop switch, limit switch | 1set |
6 | Water cooled cable |
400V,750KVA |
4pcs |
7 | Auto-transformer | 2set | |
8 | Interphase reactor |
400V, 430KVAR |
2set |
9 | Cooling water distribution and collection device | 1set |
3 Main technical indicators of equipment
The main electrical components used in the domestic well-known brand products, furnace body using vertical structure, material using Q235, thickness of 16mm steel welded. Iron core is made of Wuhan Iron and steel 35Q135 high quality silicon steel sheet; melting ditch the T2 copper casting and; water-cooled sleeve adopts 3mm thick 1Cr18Ni9Ti welding; coil with 22 x 14.5 x 3mm thickness T2 hollow tube winding and; hydraulic system main fittings adopt Yuci production of products;
Two, 10T wire rod semi continuous casting machine
