Copper Horizontal Continuous Casting Machine Customized For Rod - Wire Billets
1set
MOQ
negotiation
Price
Copper Horizontal Continuous Casting Machine Customized For Rod - Wire Billets
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Jingjie
Model Number: GVT
High Light:

continue casting machine

,

continuous casting machinery

Payment & Shipping Terms
Packaging Details: Packed in wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T or L/C
Supply Ability: 10sets per month
Specifications
Product Material: Copper
Product: Rod-wire
FEATUER: LOW NOISE
NAME: Horizontal Continuous Casting Machine
Length: Customized
Furnace Type: Melting And Holding High And Low Combined Furnace
Product Description



Copper Horizontal Continuous Casting Machine Customized For Rod - Wire Billets​


Ⅰ. Specifications:
1. Types of casting specifications
* Red copper, oxygen-free copper

1.1 Rod-wire billets (round-shaped)
* a. Diameter range Φ(18--300)mm
* b. Number of production lines
* 1-- 12 lines(according to section conditions)



Ⅱ.Process:


   Main equipments of production line
     melting furnace, holding furnace, mold, micro-travel reversible casting machine, synchronizing shearing machines * 2, winding machines* 3, hydraulic unit, cooling unit, and electromechanical control unit etc.
        * 2.1 For casting of pure metal or special requirements, subsurface channel-type smelting-holding combination furnace or controllable channel-type smelting-holding combination furnace can be adopted;

* 2.2 For producing round-shaped, tubular-shaped and special-shaped billets, cut-to-length synchronizing sawing machine can be adopted;

* 2.3 For producing round-shaped, tubular-shaped and special-shaped billets, the material stock platform for receiving and storing billets can be adopted.




Ⅲ. Equipment Components List of  Horizontal Continuous Casting Production line for Rod-Wire

No. Equipment Name and Spec. Unit Quantity Remarks
1

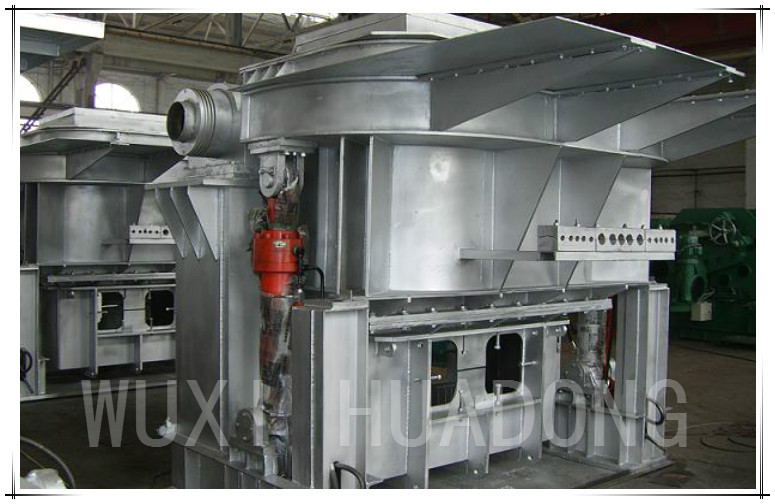

2 Melting furnace  set 1 Including melting groove, coil, waer jacket and iron core.
3 Chute set 2 One in-use and one standby
4 Holding furnace  set 1 Including melting groove, coil, water jacket, iron core, vertical temperature measurement device (specially-made), thermocouple (containing platinum and rhodium) and protection tube.
5 Molten steel storage ladle and chute set 1 For transferring material into the mold after sintering in holding furnace.
6 mold system (Ф30-200) set 2 Including graphite mold
7 Dragger (5KW) set 1
8 Synchronized auto-tracking sawing machine set 1
9 Material stock platform set 1 Chain drive, length of 5M
10 Header tank set 1
11 Traction carrier roller Set 1
12 Cooling water distributor set 1 Including cooling water for transformer, reactor, coil of electric furnace, water jacket, water-cooling cable, and mold (primary and secondary cooling).
13 Hydraulic system set 2

Including hydraulic station and cylinder
(The hydraulic components produced by YUCI YUKEN HYDRAULICS CO., LTD. are adopted)

14 Electric-control operation system of electric furnace set 1 Including the control cabinet for melting furnace and holding furnace (Siemens is chosen for main electrical elements).
15 Process control operation system set 1 For control of servo motor and process, synchronized auto-tracking sawing machine, and control of material stock platform.



FAQ



1,Q: What is your main brand for the electrical and mechanical parts?
A: China famous brand



2, Q: could you please arrange the installation and commissioning ?
A: Yes , we could and the buyer pay the charge



3 Q: could you arrange the production education?
A: Yes , we could and the buyer pay the charge



4 Q: could you do the design for the whole plant
A: Yes , we can.



Wuxi East China Furnace Co.,Ltd

No.3 Bashi Furong Industrial Park,Xishan District,Wuxi City,Jiangsu Province,China
Contact person: Joey.Wong
Tel: +86 510 83788308
Fax: +86 510 83786308
Mob: +86 139 2112 5611
Wechat: 86 139 2112 5611

Whatsapp: 86 139 2112 5611

joey@wxhddl.cn
