Rectangular Billet Copper Continuous Casting Machine With Melting And Holding Furnace
Ⅰ. Major Technical Parameters of Equipment:
| 1.1 | Casting speed: | |
| Traction speed | 0-64 mm/s (Stepless adjustable) | |
| Backstepping speed | 0-64 mm/s (Stepless adjustable) | |
| Strip optimum line speed | 90-120mm/min | |
| 1.2 | Equipment power: | |
|
Combination furnace: Smelting Holding |
500Kw 200Kw |
|
| Traction machine | 7.5Kw | |
| Hydraulic shear stress | 80T | |
| 1.3 | Shear thickness | 20mm(max) |
| 1.4 | Coiling machine parameters | |
| Coiling weight |
6000Kg |
|
| Inside Diameter of Coil |
Φ500-800mm |
|
| Coil diameter | 1600mm | |
| 1.5 | Machine noise value | Less than 85 dB |
| 1.6 | Height of machine operation line | +1000mm |
| 1.7 | Machine drive direction | Right drive |
| 1.8 | Production capacity | |
| 2 Strands: 750-1200Kg/h | width: 470mm thickness: 25mm | |
| Equipment assembly machine power | 700Kw | |
Ⅱ. Specifications:
1. Types of casting specifications
* Oxgen free copper
1.1 Plate-strip billets (rectangular-shaped)
Thickness range * width range (8--20)*(420--650) mm
Range of coil's internal diameter Φ(500--800)mm
Max. outer diameter of coils Φ1600 mm
Max. coil weight 8000 KG
Number of production lines 1--3 lines(To be decided according to section conditions)
Ⅲ.Main process parameters
| 1 | Output | 750-1200Kg/h |
| 2 | Temperature regulating range | ≤1300℃ |
| 3 | Temperature control precision of thermal insulation furnace | ±5℃ |
| 4 | Vertical and horizontal tolerance |
Horizontal: + 0.10mm Vertical:±0.20mm |
| 5 | Push and pull adjustment range |
Push:0-64mm/s ±0.1mm(electrodeless) Pull:0-64mm/s ±0.1mm(electrodeless) |
| 6 | Sickle curve | 1.5mm/m |
| 7 | Dragger adjustment range |
Drag:0-64mm/s ±0.1mm(electrodeless) Backsteppingl:0-64mm/s ±0.1mm(electrodeless) |
| 8 | Drag maximum line speed | 120mm/min |
| 9 | Coiling adjustment range |
Inside Diameter of coil Φ500-Φ800mm External diameter of coil Φ1600mm |
| 10 | Maximum coiling speed |
250mm/min |
| 11 | Elastic adjustment range | 0.95-0.75 |
| 12 | Tower dgree of coiliing | ≤40m |
| 13 | Unit power consumption | 430kWh/t |
Ⅴ. Equipment parts list:
| No. | Equipment Name and Spec. | Unit | Quantity |
| 1 | Machine parts | ||
| 1.1 | Melting and holding combined furnace | set | 1 |
| 1.2 | Mould | set | 2 |
| 1.3 | Dragger | set | 1 |
| 1.4 | Hydraulic cutter | set | 1 |
| 1.5 | Coiling machine | set | 2 |
| 2 | Hydraulic system | ||
| 2.1 | Combined furnace titing hydraulic station | set | 1 |
| 2.2 | Hydraulic cutter hydraulic station | set | 1 |
| 2.3 | Dragger and coiling machine hydraulic station | set | 1 |
| 3 | Electric control system | ||
| 3.1 | Power frequency electric furnace control system | Set | 2 |
| 3.2 | Automatic control system | set | 1 |
| 4 | Technical documentation with equipment | set | 2 |
| 4.1 | Equipment installation diagram | file | 1 |
| 4.2 | Equipment specification | file | 1 |
| 4.3 | Principle diagram of electric control system | file | 1 |
| 4.4 | Control cabinet layout | file | 1 |
| 4.5 | Product specification for main electrical equipment | file | 1 |
| 4.6 | Hydraulic system diagram | file | 1 |
| 4.7 | PLC program | file | 1 |

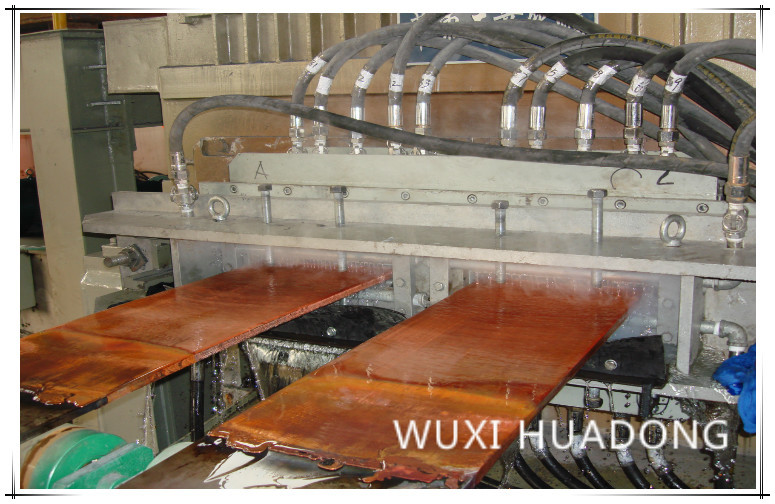

Ⅸ. Pictures of Red Copper Horizontal Continuous Casting Machine
