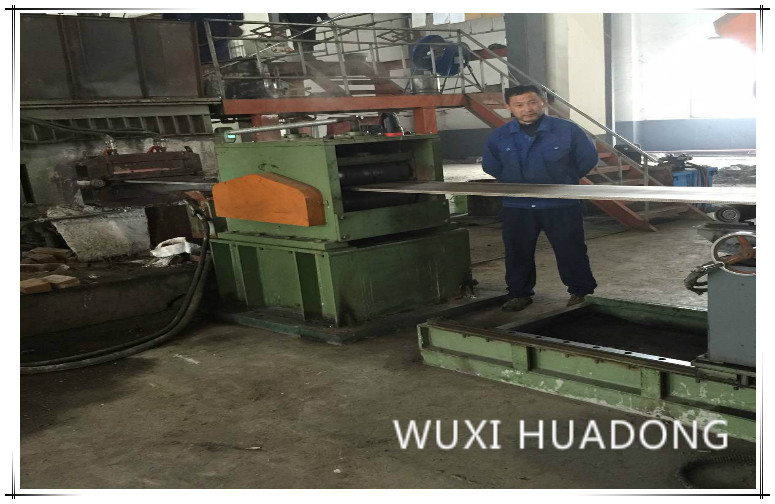

1 Strand Casting CCM Machinery 250 KW Medium Frequency Melting Furnace
MAIN PROCESS PARAMETERS
Production: 200-300 kg/h
Temperature control range: 1300 ℃ or less
Holding furnace temperature control precision: + / - 3 ℃
Push and pull adjustment range: push: 0-64 - mm/s + / - 0.1 mm (no)
Rachel: 0-64 - mm/s + / - 0.1 mm (no)
Casting machine range: to regulate traction: 0-64 - mm/s + / - 0.1 mm (no)
Backstepping: 0-64 - mm/s + / - 0.1 mm (no)
Lead casting biggest linear velocity: 0-200 mm/min
Coiling the adjusting range is: roll diameter Φ 500 - Φ 800 mm
Φ roll diameter 1600 mm
The biggest coiling speed: 250 mm/min
Dancer range: 0.95 to 0.75
Winding tower degrees: 40 m or less
The unit power consumption: 380-420 KWH/t
PRODUCT TECHNICAL CONDITIONS
1. casting materials: nickel cupronickel
2. casting specification: thickness: 16 mm×Width: 200 mm
EQUIPMENT MAIN TECHNICAL PARAMETERS
1. casting speed:
Traction speed: 0-64 - mm/s (stepless adjustable)
The reflex speed: 0-64 - mm/s (stepless adjustable)
The strip best linear speed: 90-200 - mm/min
2. power equipment:
Medium frequency melting furnace: 250 kw
Holding furnace: 75 kw
Servo tractor: 3.5 Kw
3. synchronous cutting machine
The motor power: 3 Kw
Saw blade gauge: Ф 355
Feed rate: hydraulic stepless speed regulation
Sawing gauge: copper platoon, brass
Clamping side type: hydraulic
4. coiler winding weight: 4000-5000 kg
Inside diameter: 500-800 - mm Φ
Outer diameter: Φ 1600 mm
5. unit noise value: 85 db (a) or less
6. unit line high school: + 1000 mm
7. unit transmission direction: right transmission
production capacity
A single flow: 200-200 kg/h (16 mm) bandwidth: 200 mm, thickness:
The third chapter main process parameters and process description
