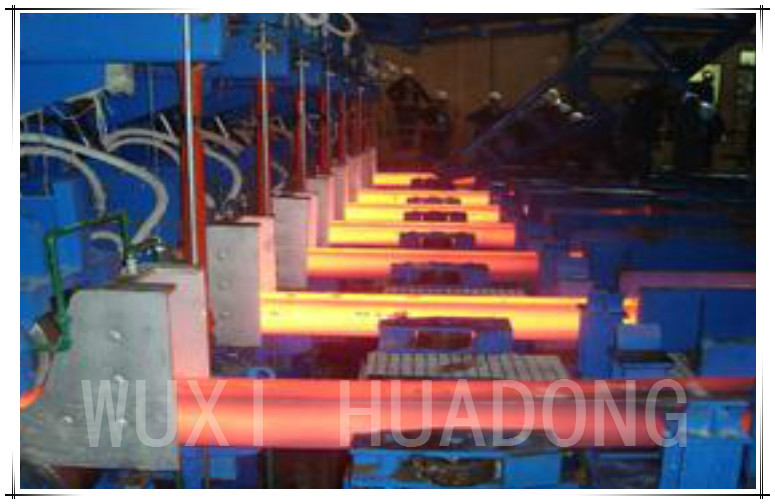

R6M Steel Billet Continuous Casting Machine 3.0 m/min Casting Speed
1set
MOQ
negotiation
Price
R6M Steel Billet Continuous Casting Machine 3.0 m/min Casting Speed
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: WUXI
Brand Name: BOLONG
Certification: CE
Model Number: R6M
High Light:

continuous billet casting machine

,

billet ccm

Payment & Shipping Terms
Packaging Details: Container
Delivery Time: 90days
Supply Ability: 3sets per month
Specifications
Raw Material: Steel Scrap
Product Specification: Billets Of 80×80,100×100,120×120,150×150 Mm
Motel Steel Receiving Type: Ladle Turret,ladle Car,dumping Ladle,ladle Support
NAME: Continuous Casting Machine For Steel Billets
Machine Arc: R3m,R4M,R6M,R8M
Dummy Bar Model: Rigid
Product Description


R6M Steel Billet Continuous Casting Machine 3.0 m/min Casting Speed





Steel Billet Continuous Casting Machine(CCM)



Item

R2.5M

R4M

R5.25M

R6M

Mode

Continuous regulation full arc

Arc radius(m) 2.5 4 5.25 6
Strand number 1 1 1,2 2,3,4
Annual productivitu(T/Y) 20000-40000 30000-50000 80000-120000 150000-200000
Cast section(mm2) 60×60

70×70
80×80

100×100
100×100

120×120
120×120

150×150
Cable length(m) 10 10 10-15 20
Rated length(m) 3-6 3-6 3-8 3-9
Cast peed(m/min) 1.2 1.8 2-3 2.5
Max speed(m/min) 2 2.5 3-4 4
Ingot leading pole Rigidity leading pole
Machine height(m) 5 7 8 8
Floor space(m2) 4*20 5*20 8*25 10*38
Rated power(kW) 50 37+60(water pump) 200 250
Power consumption(kWh/t) 5 5 10-15 15


Introduction
This continuous casting machine is designed and manufactured according to user’s request and is used for continuously casting the square billet, the cross section of which is80×80,100×100,120×120,10×150 mm with length of 6m/12m operated by automatic control system. We can providesingle strand, double strands and multiple strands CCM as well as straightening machine, automatic cutting machine, billet cooling bank, billet spreader, molten steel spreader and other auxiliary devices and facilities such as soft water treatment and water cooling system. We are also the provider of turn key project proposal.


Standard supply scope

Mechanical part
1 Ladle turret/ladle moving car/ladle fixed support (determined by customers)
2 Tundish
3 Tundish car
4 Mould
5 Mould vibration device
6 Vibration drive device
7 Protecting cover for vibration device
8 Secondary coolings spraying frame
9 Secondary coolings spraying pipe
10 Spraying nozzle for secondary cooling water
11 Support roller device for secondary and thirdly cooling
12 Withdrawal straightening machine
13 Transmission device for withdrawal straightening machine
14 Universal joint
15 Rigid dummy bar
16 Dummy bar storage device
17 Guide roller for dummy bar storage device
18 Billet delivery roller table
19 Hydraulic billet pusher
20 Platform for billet collection
21 Flame cutting machine/hydraulic shear (determined by customers)
Electrics control system
23 Control system for mould vibration
24 Control system for withdrawal straightening machine
25 Effective control system for dummy bar
28 Control system for billet delivery roller table
29 Control system for billet out
30 Control system for central hydraulic station
Steel structure
31 Main casting platform
32 Casting platform
33 Platform for dummy bar storage
Auxiliary system
34 Hydraulic system
35 Discharging device for secondary coolings steam
36 Control system for secondary cooling water
37 Suspended operation box for withdrawal straightening part
38

Special configuration can be provided in accordance with customers requirements
