R4M Steel Billet Continuous Casting Machine For 6m / 12m Length Billets
1set
MOQ
negotiation
Price
R4M Steel Billet Continuous Casting Machine For 6m / 12m Length Billets
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: WUXI
Brand Name: BOLONG
Certification: CE
Model Number: R4M
High Light:

billet ccm

,

continuous billet caster

Payment & Shipping Terms
Packaging Details: Container
Delivery Time: 90days
Supply Ability: 3sets per month
Specifications
Raw Material: Steel Scrap
Product Specification: 80×80,100×100,120×120mm Billets
Type: Continuous Regulation Full Arc
Technology: According To Japanese
Machine Arc: R4M
Casting Speed: (1.0-3.0)m/min
Product Description



R4M Steel Billet Continuous Casting Machine For 6m / 12m Length Billets





Introduction
This continuous casting machine is designed and manufactured according to user’s request and is used for continuously casting the square billet, the cross section of which is 80×80,100×100,120×120 mm with length of 6m/12m operated by automatic control system. We can providesingle strand, double strands and multiple strands CCM as well as straightening machine, automatic cutting machine, billet cooling bank, billet spreader, molten steel spreader and other auxiliary devices and facilities such as soft water treatment and water cooling system. We are also the provider of turn key project proposal.

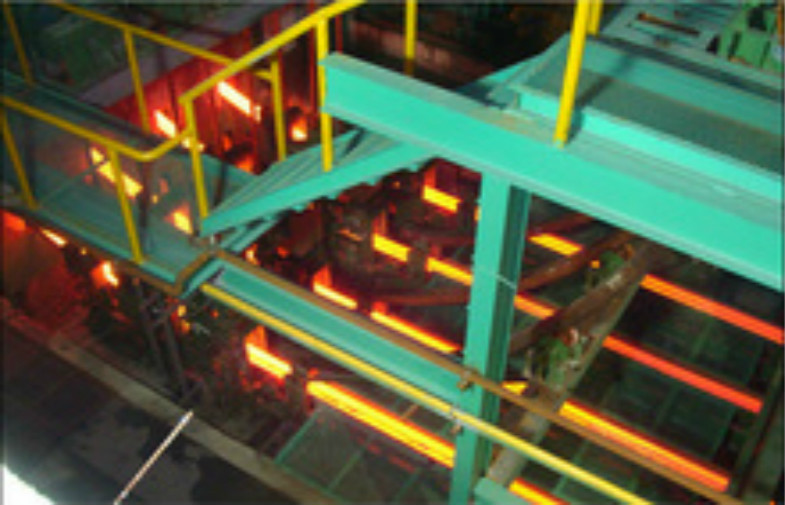

Dumping ladle type R4/R8m all arc continuous casting machine



R4M Steel Billet Continuous Casting Machine For 6m / 12m Length Billets 0

Ladle car type R4/R8m all arc continuous casting machine

R4M Steel Billet Continuous Casting Machine For 6m / 12m Length Billets 1



Steel Billet Continuous Casting Machine(CCM)



Item

R2.5M

R4M

R5.25M

R6M

Mode

Continuous regulation full arc

Arc radius(m) 2.5 4 5.25 6
Strand number 1 1 1,2 2,3,4
Annual productivitu(T/Y) 20000-40000 30000-50000 80000-120000 150000-200000
Cast section(mm2) 60×60

70×70
80×80

100×100
100×100

120×120
120×120

150×150
Cable length(m) 10 10 10-15 20
Rated length(m) 3-6 3-6 3-8 3-9
Cast peed(m/min) 1.2 1.8 2-3 2.5
Max speed(m/min) 2 2.5 3-4 4
Ingot leading pole Rigidity leading pole
Machine height(m) 5 7 8 8
Floor space(m2) 4*20 5*20 8*25 10*38
Rated power(kW) 50 37+60(water pump) 200 250
Power consumption(kWh/t) 5 5 10-15 15
