Annnual 5,000MT D8mm Upcasting Process Brass Rod Upward Continuous Casting Equipment
Annnual 5,000MT D8mm Upcasting Process Brass Rod  Upward Continuous Casting Equipment
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: Jingjie
Model Number: GVT
High Light:

upward casting machine


continuous casting equipment

Payment & Shipping Terms
Packaging Details: Packed in wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T or L/C
Supply Ability: 10sets per month
Product Material: Brass
Product: Rod-wire
Product Diameters: D8mm
Melting Rate: 300KG/H
Furnace Type: Double Conjoined Furnace
Strand: 10
Melting Furnace Power: 80KW
Holding Furnace Power: 80KW
Product Description

Annnual 5,000MT D8mm Upcasting process brass rod upward continuous casting production line



  Device name Quantity Remark
1 Power frequency induction furnace with core(180KW) Two body furnace 1 set Furnace body, furnace body bracke
Sensor 1 set Iron core, coil, water jacket, channel 1
Furnace cover 1 set
Oven building material 1 set Quartz sand, insulating material, refractory brick
2 Furnace electric control Furnace electrical control 1 set One Electric cabinet ,one control cabinet
Furnace temperature detection 1 set Display cabinet with temperature
3 Temperature measurement system Water inlet diversion device 1 set Valve, pressure gauge, etc
Mould temperature detecting assembly 1 set
Water temperature total 1 set
4 Continuous casting machine Top lead continuous casting machine frame 1 set
AC servo motor and speed reducer 1 set
Guide wheel 2 set
Ttraction drive system 1 set
Mould hanging device 1 set
Water cooling circulating device for mould 1 set
5 Electric control cabinet Drive 1 set
Man-machine interface 1 set
PLC controller 1 set
Lifting system 1 set
Liquid level tracking system 1 set
6 Mould assembly Copper rod mould 2 set
Quick connector 4 set
Protection sleeve 10 set Ten Containing graphite mold
7 Double bar coiling machine Cable car 1 set
Receiving tray 2 set


Equipment Composition

Brass scraps(copper>62%) -- charging device (can match) - furnace system (melting furnace -- transition warehouse - holding furnace) - continuous casting machine crystallization moulding) -- dragger - speed device - automatic winding machine - for sale or deep processing

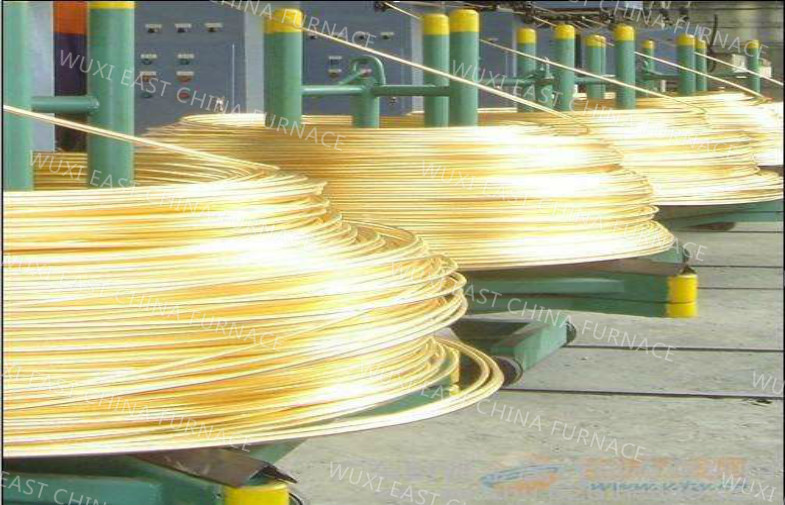

Brass scrap is joined in the melting furnaces through the charging device (according to the user needs), (if the raw materials is not 1# red copper, our company can design and install the reverberatory furnace before melting furnaces to remove the copper impurity). The copper plate through W-type inductor into liquid, then flow smoothly from the transition storehouse to the holding furnace, and then is in the steady reduction process through the surface covered with charcoal, at last is crystallized swiftly to the cast copper rod by the crystallizerof the upcast plant by upward copper rod process at the same time, cast copper rod is upward casted intermittently through the two traction roller. The cast copper rod through the hauling machine, and the wheelframe, the speed adjusting gear, then to the automatic winding machine to wind copper rod.




Date of Delivery: To be delivered within 60 days after the contract becomes effective.



Payment term:30%T/T in advance, 70%T/T before delivery.



The seller will send 3 service engineers to the buyer’s factory to supervise machine installation; the buyer should pay USD100/day/person for their wage. The buyer will be responsible for travelling expenses and accommodation.
