Brass Rod Continuous Casting Machine Process , Upward Casting Machine
Brass Rod Continuous Casting Machine Process , Upward Casting Machine
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: Jingjie
Model Number: GVT
High Light:

upward casting machine


continuous casting equipment

Payment & Shipping Terms
Packaging Details: Packed in wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T or L/C
Supply Ability: 10sets per month
Product Material: Brass
Product: Rod-wire
Product Diameters: D8-14.4mm
Melting Rate: 300KG/H
Furnace Type: Double Conjoined Furnace
Strand: 6
Melting Furnace Power: 80KW
Holding Furnace Power: 80KW
Product Description

Upcasting process oxygen free copper rod Annnual 2,000MT D8-14.4mm upward continuous casting production line


Equipment Composition

Brass scraps(copper>62%) -- charging device (can match) - furnace system (melting furnace -- transition warehouse - holding furnace) - continuous casting machine crystallization moulding) -- dragger - speed device - automatic winding machine - for sale or deep processing

Flow Chart

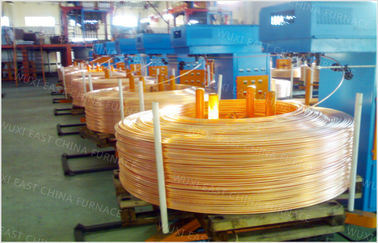

Brass Rod Continuous Casting Machine Process , Upward Casting Machine 0

Brass scrap is joined in the melting furnaces through the charging device (according to the user needs), (if the raw materials is not 1# red copper, our company can design and install the reverberatory furnace before melting furnaces to remove the copper impurity). The copper plate through W-type inductor into liquid, then flow smoothly from the transition storehouse to the holding furnace, and then is in the steady reduction process through the surface covered with charcoal, at last is crystallized swiftly to the cast copper rod by the crystallizerof the upcast plant by upward copper rod process at the same time, cast copper rod is upward casted intermittently through the two traction roller. The cast copper rod through the hauling machine, and the wheelframe, the speed adjusting gear, then to the automatic winding machine to wind copper rod.



Main Technology Parameter For Copper Rod Up-casting Machine

Annnual  2000MT D8mm-D14.4
1 Model: HDUCM-2000
2 Yearly capacity:2000mt
3 Furnace structure: 300type two- body furnace Clmeltingfurnace and holding furnace
4 Casting strands:4
5 Casting rod diameter : 14.4mm
6 casting spee:0 〜3000mn/min
7 annual working time:7920h
8 Liguidtracking precision:±2mm
9 Take-up coil standard: <p700mmx<pl500mnv<800mm
10 Copper melting velocity:260kg/h
11 Copper melting power consumption: <350kwh/lon
12 Take-up form: frequency automatic adjust
13 Take-up plate driven approach: PLC control, frequency adjustautomatic coiling
14 Material feeding methoctwhole piece of electrolytic copper cathode fed by electric hoist
15 Upward driven approach:dhven by the AC seivo motor transmission chain is driven by the gapless synchronous cog blet
16 Rod clamping methodair clamping
17 Operation interface : date display^seivo motor controDed by touch screen
18 Total power150KW AC three-phase 380V



Date of Delivery: To be delivered within 60 days after the contract becomes effective.



Payment term:30%T/T in advance, 70%T/T before delivery.



The seller will send 3 service engineers to the buyer’s factory to supervise machine installation; the buyer should pay USD100/day/person for their wage. The buyer will be responsible for travelling expenses and accommodation.

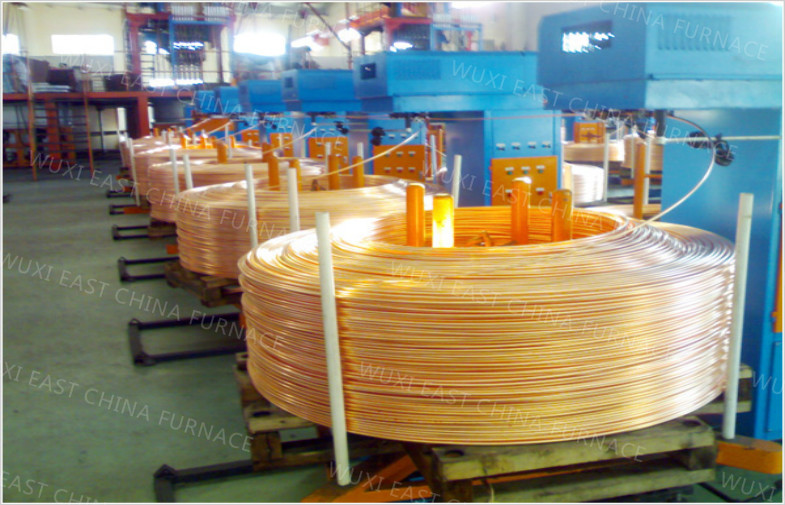

Brass Rod Continuous Casting Machine Process , Upward Casting Machine 1
