High Effect Continuous Caster Machine / Copper Continuous Casting Machine
Negotiation
MOQ
negotiation
Price
High Effect Continuous Caster Machine / Copper Continuous Casting Machine
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Jingjie
Certification: ISO/CE
Model Number: GVT
High Light:

upward casting machine

,

continuous casting plant

Payment & Shipping Terms
Packaging Details: Packed in wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T or L/C
Supply Ability: 10sets per month
Specifications
Product Material: Red Copper
Product: Rod-wire
Product Diameters: D17-30mm
Melting Rate: 300KG/H
Furnace Type: Double Conjoined Furnace
Strand: 6
Melting Furnace Power: 80KW
Holding Furnace Power: 80KW
Warranty: 12 Months After Debugging
After Sales Service: Send Engineers To Overseas
Product Description

High-effect Upward Continuous Casting Machine Copper Continuous Casting Machine Quality Guarantee



Main Technology Parameter For Copper Rod Up-casting Machine

Annual 2000MT D17mm-30mm
Model: HDSYUCM-2000
Yearly capacity:2000mt
Furnace structure : 300type two- body furnace ( 1.melting furnace 2. holding furnace)
Casting strands:4
Casting rod diameter: 17mm— 30mm
casting speed: 0-1000mnVmin
annual working time:7920h
Liquidtracking precision:±2mm
Take-up coil standard; <p700mrrp<<p15CI0mnv<800mm
Copper melting velocity:260kg/h
Copper melting power consumption: <350kwh/lon
Take-up form: automatic adjust
Take-up plate driven approach: pushed by copper rod,manual adjusting
Material feeding methoctwhole piece of electrolytic copper cathode fed by electric hoist
Upward driven approach:dhven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet
Rod clamping method; manual clamping
Operation interface : date display,seoo motor controlled by touch screen
Total power:150KW AC three-phase 380V



High Effect Continuous Caster Machine / Copper Continuous Casting Machine 0

Equipment Composition

Electrolytic copper plate (cathode copper/99.9% copper scraps) -- charging device (can match) - furnace system (melting furnace -- transition warehouse - holding furnace) - continuous casting machine crystallization moulding) -- dragger - speed device - automatic winding machine - for sale or deep processing

Flow Chart

High Effect Continuous Caster Machine / Copper Continuous Casting Machine 1

Electrolytic copper plate (99.9% copper scraps) is joined in the melting furnaces through the charging device (according to the user needs), (if the raw materials is not 1# red copper, our company can design and install the reverberatory furnace before melting furnaces to remove the copper impurity). The copper plate through W-type inductor into liquid, then flow smoothly from the transition storehouse to the holding furnace, and then is in the steady reduction process through the surface covered with charcoal, at last is crystallized swiftly to the cast copper rod by the crystallizerof the upcast plant by upward copper rod process at the same time, cast copper rod is upward casted intermittently through the two traction roller. The cast copper rod through the hauling machine, and the wheelframe, the speed adjusting gear, then to the automatic winding machine to wind copper rod.

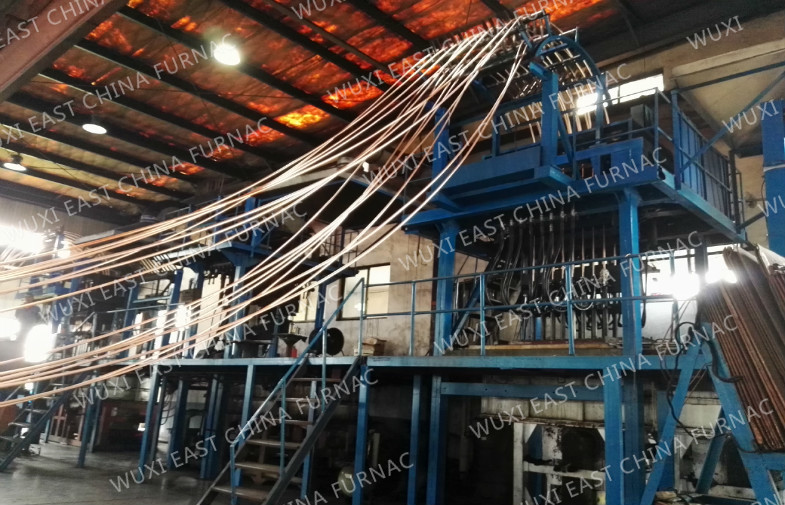

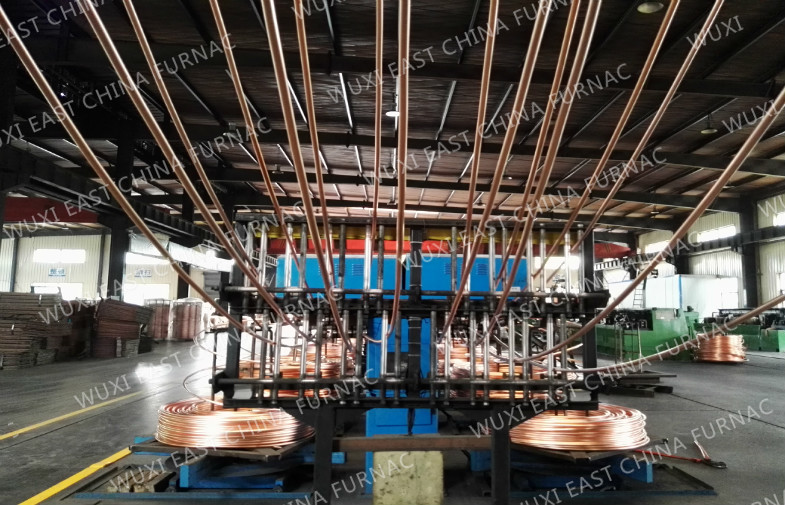

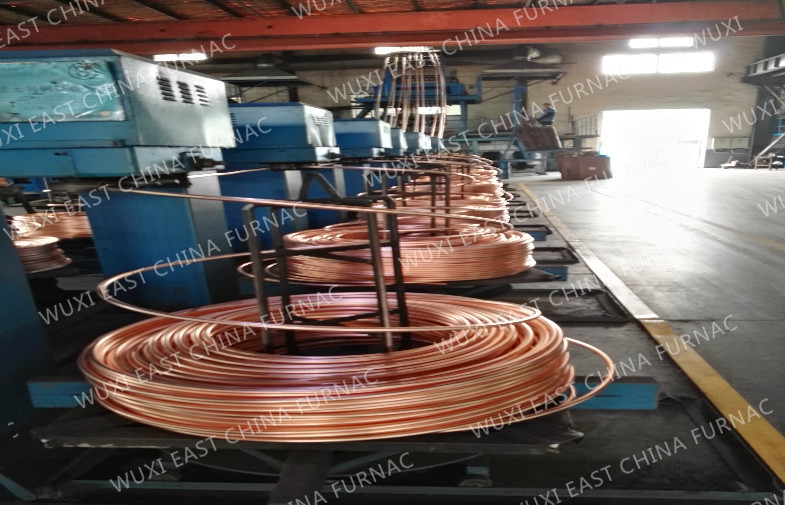

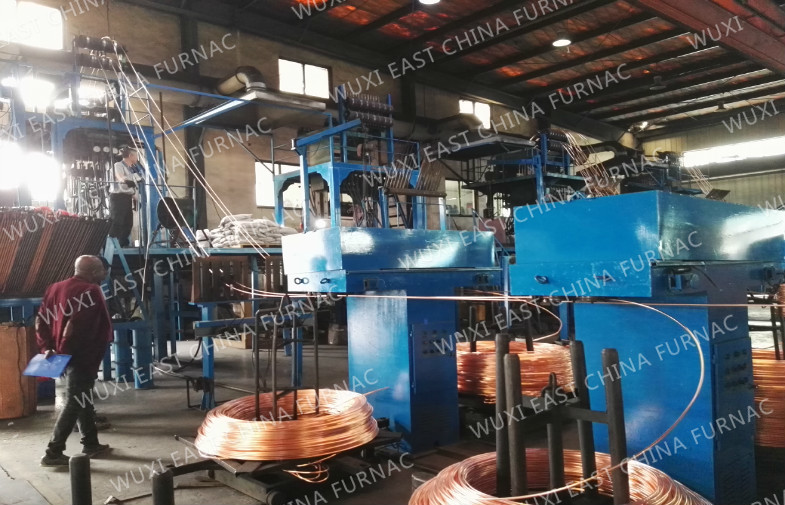

High Effect Continuous Caster Machine / Copper Continuous Casting Machine 2High Effect Continuous Caster Machine / Copper Continuous Casting Machine 3High Effect Continuous Caster Machine / Copper Continuous Casting Machine 4High Effect Continuous Caster Machine / Copper Continuous Casting Machine 5





No

Name

Quatity

Remarks

1

Upcasting melting and holding double conjoined combination furnace

1set


Melting furnace coil

1set


Melting furnace water jacket

1set


Melting furnace steel core

1set





Melting furnace melting channel

1set


Holding furnace coil

1set


Holding furnace water jacket

1set






Holding furnace steel core

1set


Holding furnace melting channel

1set
2

Conjoined furnace refractory brick

1set


Ramming material

1set


Al ore ceramic fiber board

(thickness20mm)

1set


Temperature measuring thermocouple

1set


Thermocouple cases

1set


Copper liquid level tracking device

1set


Melting furnace and the holding furnace electric control cabinet

1set
3

10strands Servo control casting machine

1set


Line oriented institutions

1set


PLC electric control system,Servo motor

1set

Servo motor power:4.4KW Yaskawa,Japan

PLC: Mitsubishi,Japan



Lifting platform

1set


Upcasting operatiion platform

1set


Servo operation counters

1set
4

Upcasting limit frame

1set
5

Mould and furnace cooling water distribution system

1set


Include:Temperature display, water temperature table, hydraulic pressure gauge, etc




Bypass pipe, valves,

1set
6

Frequency conversion double poles coiling machine

5sets Automatic,Frequency conversion





Including: coiling case, coiling trolley, rack, controller, Frequency conversion motor, reducer, etc


7

Continuous upcasting mould

10set





Indluce dummy bar and head




Mould graphite dies

30pcs


Graphite cases and coat

30pcs


Quick connector

15pcs


Hose

5coils
8

Installation material

1set


Wires, cables, signal lines




Wuxi East China Furnace Co.,Ltd

No.3 Bashi Furong Industrial Park,Xishan District,Wuxi City,Jiangsu Province,China
Contact person:  Joey.Wong
Tel: +86 510 83788308
Fax: +86 510 83786308
Mob: +86 139 2112 5611
Wechat: 86 139 2112 5611

Whatsapp: 86 139 2112 5611

joey@wxhddl.cn
