Three Body Up Casting Furnace For Copper Rod Continuous Casting 80-320kw
1 set
MOQ
$50,000.00 - $100,000.00
Price
Three Body Up Casting Furnace For Copper Rod Continuous Casting 80-320kw
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: WUXI CHINA
Brand Name: East China
Certification: ISO/CE
Model Number: custom made
High Light:

upward casting machine

,

continuous casting plant

Payment & Shipping Terms
Packaging Details: Wooden Box and plastic film which according with export requirements.
Delivery Time: 15-30 days after payment
Payment Terms: T/T, L/C, Western Union
Supply Ability: 30 sets per month
Specifications
Raw Material: Cooper Brass Bronze Aluminum Alloy
Finished Product: Cooper Brass Bronze Billet Tube Hollow Wire
Phase Number: 3 AC
Power Consumption: 80-320kw
Melting Rate: 300KG-1000KG
Max. Working Temperature: 1250℃
Output: Custom Made
Color: Custom Made
Product Description

Three Body Up-casting Furnace for Copper Rod Continuous Casting made in China

Usage

This upward continuous casting system is used to produce bright and long oxygen-free copper rod. The system is capable of producing directly from cathode copper to bright and long oxygen-free copper rod , copper tube, flat copper bar and other special shaped copper product.

As compared with the black copper rod produced by traditional mangler from copper ingot, the rod produced by this new upward continuous casting technology has its advantage of better quality, low production cost, low investment and no pollution in production.

Three Body Up Casting Furnace For Copper Rod Continuous Casting 80-320kw 0



what do I care about most about this production line?

What to produce: Oxygen-free copper rod (8mm~30mm)
Why can produce different sizes: Size to be controlled by moulds, can use different moulds
What capacity: 4T-25T/Day/Set
How to calculate capacity: 1.5~1.8T / 24 hours / copper rod,brass,bronze aluminum
How many rods can get at a time: 2-14 rods synchronously
What is the power supply: Electricity (380V, 50Hz, 3Phase)
What is the power required: 75kw~320kw (determined by capacity needed)
What if the electricity is not continuous in our country: 1. to use electric generator 2. to use smaller continuous casting machine 3. to use oil/gas supplied plant (2 and 3 Please see "other products" below)
What is maximum temperature: 1250
How many countries did you exported: Turkey, Russia, Uzbekistan, Algeria,  Bangladesh, Pakistan, Ukraine , India, Mongolia ,Eygpt,Eran
When did your factory establish: Established since year 1995



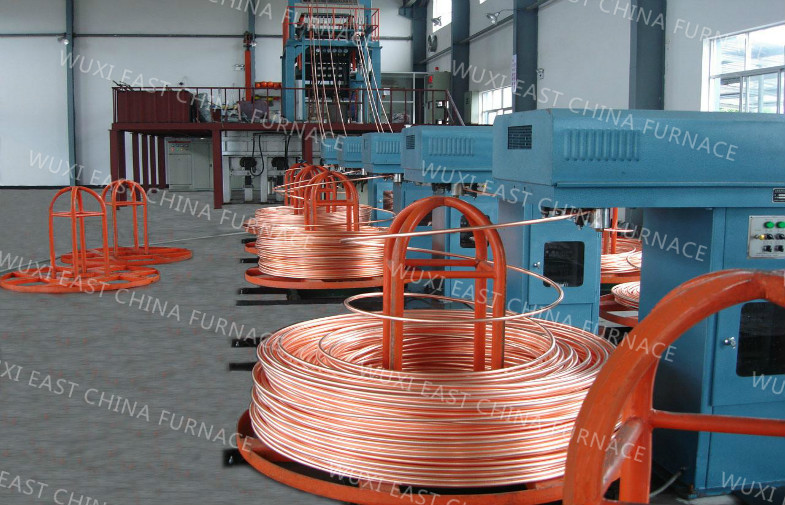

Plant Pictures

Main components:

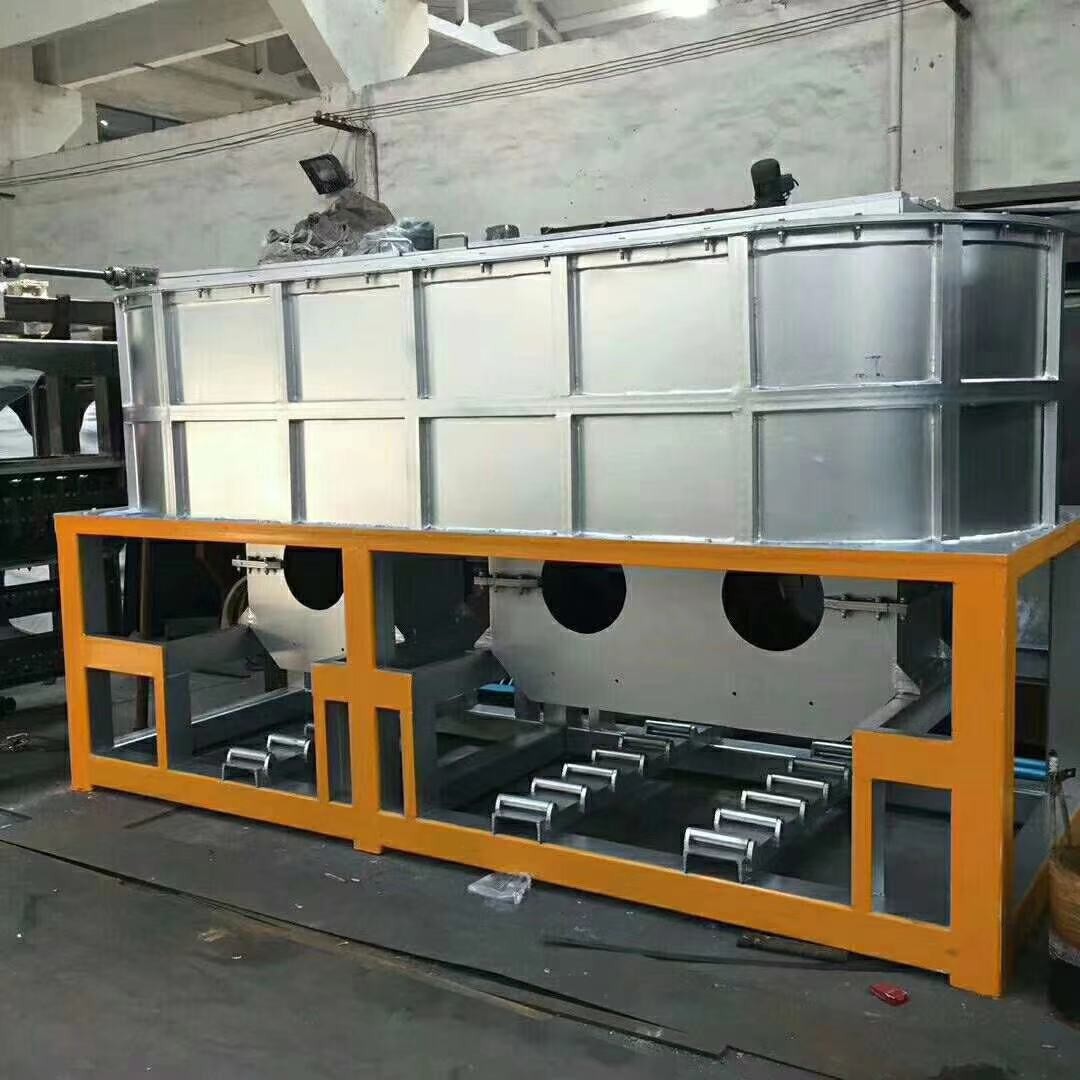

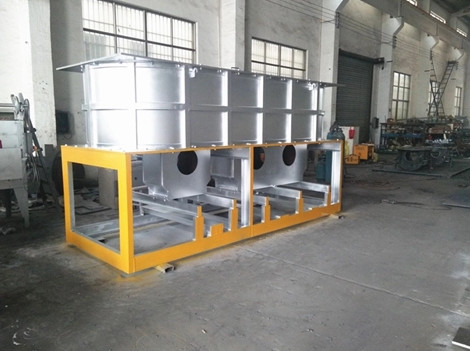

1)Induction furnace

The induction furnace is consist of furnace body, furnace frame and inductor. The outside of the furnace body is steel structure and the inside is consist of fire-clay brick and quartz sand. The function of the furnace frame is supporting the whole furnace. The furnace is fixed on the base by the foot screw. The inductor is made up of coil, water jacket, iron core and copper-ring. There are coils with water-jacket at the high voltage side. The voltage is adjustable step by step from 90V to 420V.There are short-circuit copper rings at the low-voltage side. After set up an electric circuit, it can emerge big current flow in the copper ring with the electromagnetic induction. The big current flow can melt the copper ring and electrolytic copperted into the furnace.The water jacket and coil is cooled by the water.The cooling water is cycling and supplied by the cooling water system.   Three Body Up-casting Furnace for Copper Rod Continuous Casting made in China.

Three Body Up Casting Furnace For Copper Rod Continuous Casting 80-320kw 1

2)Continuous casting machine,guiding rolls and limiting device

The continuous casting machine is the main part of the system. It consists of drawing mechanism, following mechanism of liquid level and crystallizer. The drawing mechanism is made up of A.C. servo motor, two groups of drawing rollers and so on. It can produce 0-1000 times intervalrotation per minute and draw up the copper rod continuous by the drawing rollers. The following mechanism of liquid level guarantee that the deep of the crystallizer inserting into the copper liquid is relative stable.The crystallizer can cool the copper liquid into copper rod by heat exchange. Every crystallizer can be changed and controlled alone.

The frame of guide rolls is installed above the continuous casting machine. It is consist of platform, support, vertical guide pulley and cylinder. It can lead the copper rod to the every double-head wind machine without disturbance.

There is a speed control device between casting machine and take-up machine to synchronize casting speed and take-up speed with frequency changers. Three Body Up-casting Furnace for Copper Rod Continuous Casting made in China

Three Body Up Casting Furnace For Copper Rod Continuous Casting 80-320kw 2

3)Double-head take-up machine

Three Body Up Casting Furnace For Copper Rod Continuous Casting 80-320kw 3

4)Cooling water system

The cooling water system is a cycling system. It can supply 0.2-0.4Mpa cooling water for freezer, water jacket, coil. It is consist of 150M3 water pool, water pump, tube and cooling water tower. The temperature of water supplied to the system is 20℃-30 and the quantity of water flow is 50 M3/H. Three Body Up-casting Furnace for Copper Rod Continuous Casting made in China

Electrical system .The electrical system is consist of electrical power and control system. The electrical power system supply the energy to every inductor through the power cabinets. The control system control the combined furnace, main machine, double-head wind machine and cooling water system pledging them to work in order. The control system of combined furnace is consist of melting furnace system and holding furnace system. The melting furnace operation cabinet and holding furnace operation cabinet are installed near the system.



5)Electric control system

The main machine electrical control system is consist of drawing motor, elevator motor and their electrical control system. The drawing motor is disposed control system alone. Every double-head wind machine is controlled alone. A taking-up controlling board is fixed in the frame of double-head wind machine. Its control knob is fixed on the surface of the frame. The cooling water electrical system is a control box hung on the wall of water pump room. It can control two water pumps. Three Body Up-casting Furnace for Copper Rod Continuous Casting made in China



Upcast Oxygen Free Copper Rod Continuous Casting Production Steps:
Copper cathode to be put on the furnace through the lifting system for baking→Ajust the feeding speed and feed the copper cathode into the melting furnace for melting (charcle to be used for avoiding the oxygen) → Flow into the holding furnace → Flow into the crystallizer, and the copper rods come out → Flow into the casting device →Go through the separate shelf → Go through the tension tower ( to contrl the take up speed) → Go through the take up machine, and finish coiling.




Process flow:



Product Characteristics:
1.Constant Power Output; Fast Melting Speed

2.Power Saving
3.Environmental Protection

4.Long Reliability
5.High Stability

6.Easy Maintenance
7.Stable Product Quality

8.Low Energy Consumption
9.Removable Inductor Can be Maintained Easily
10.PLC Controlling, and Servo Motor Driven System



Wuxi East China Furnace Co.,Ltd
No.3 Bashi Furong Industrial Park,Xishan District,Wuxi City,Jiangsu Province,China
Tel: +86 510 83788308
Fax: +86 510 83786308
Mob: +86 139 2112 5611
Wechat: 86 139 2112 5611
Whatsapp: 86 139 2112 5611

Email: Joey@wxhddl.cn    or   Joe.777@outlook.com
