Copper Strips Bell Type Annealing Furnace 2700mm Loading Height ​

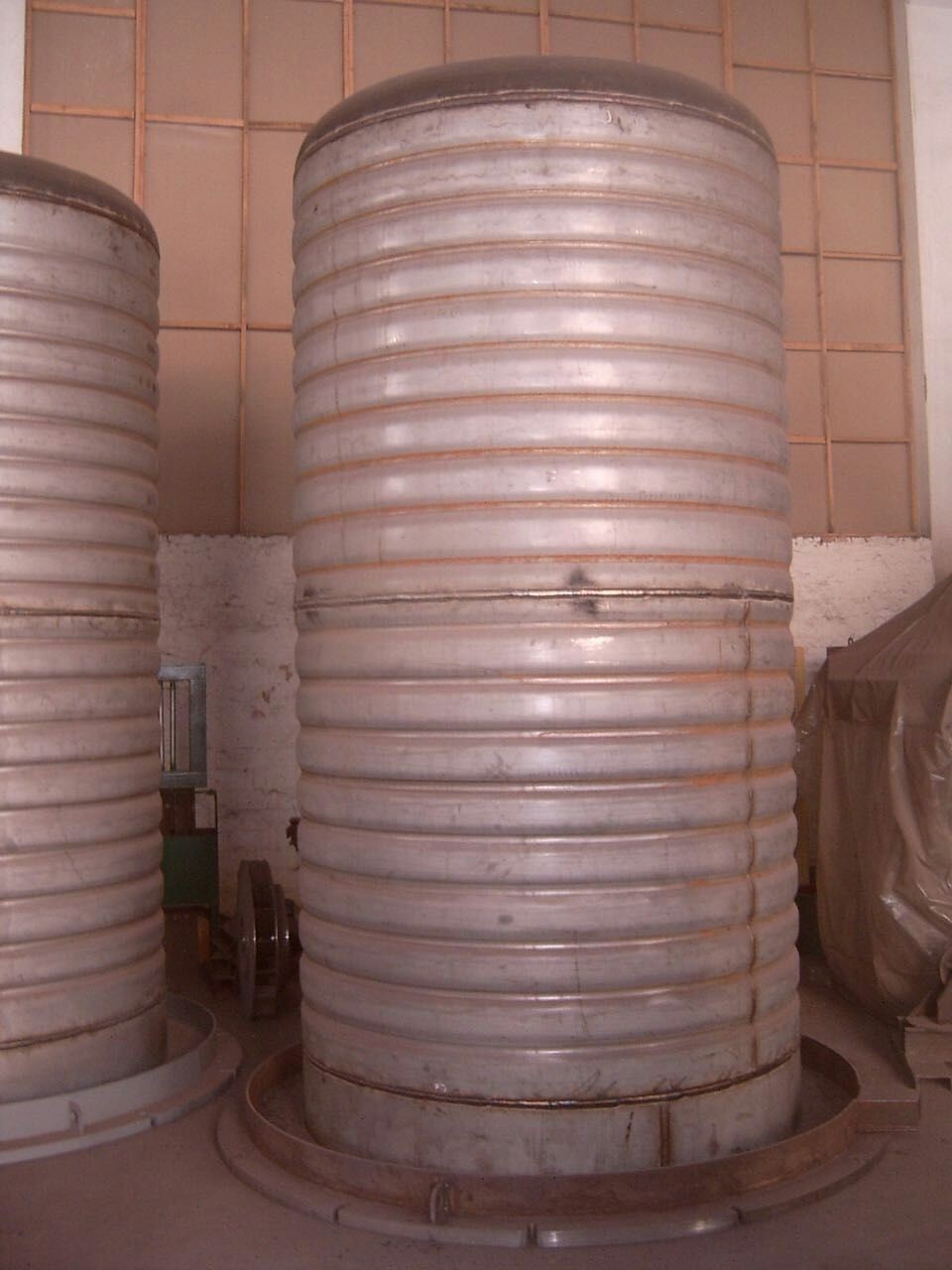

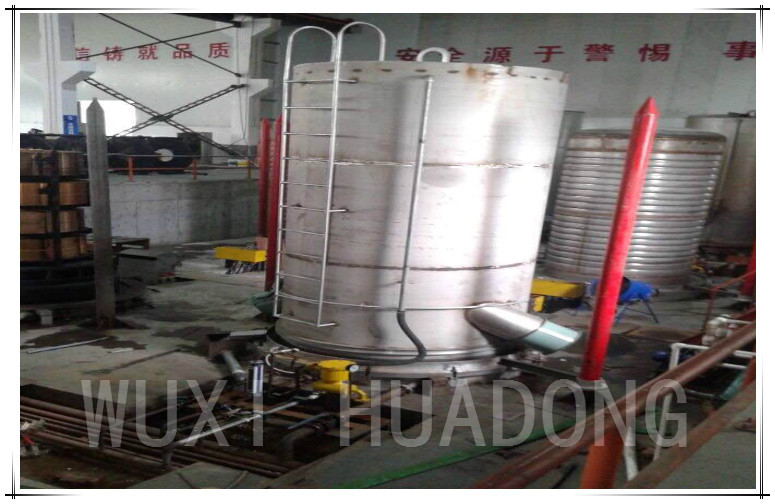

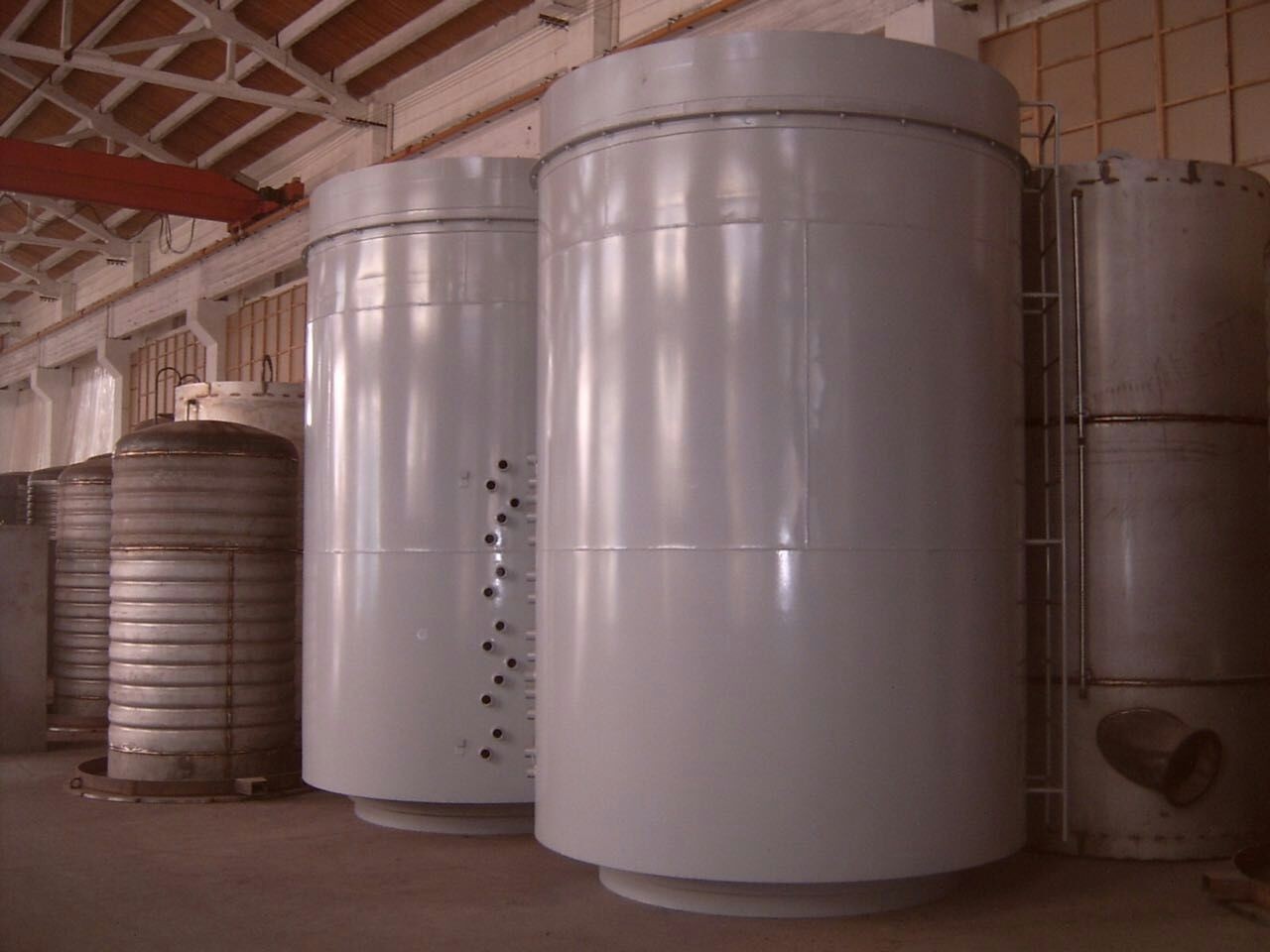

Copper Strips Bell Annealing Furnace 2700mm Loading Height Custmized Size 0Copper Strips Bell Annealing Furnace 2700mm Loading Height Custmized Size 1Copper Strips Bell Annealing Furnace 2700mm Loading Height Custmized Size 2

Bell Type Annealing Furnace Specifications

1. Hydrogen or nitrogen system
2. High convection flow heating
3. Consistent mechanical properties
4. Optimized control program



1. Introduction of Furnace

The bell type annealing furnace is used for annealing the steel strip, aluminum strip and copper strip. The furnace loading capacity can be reached to 60Tons(Max.). The loading diameter can be reached to 2.6 meters(Max.) and the loading height can be reached to 3.7 meters(Max.).


2. Main Characteristic

(1) 100% hydrogen or 75% hydrogen or nitrogen system

(2) High convection flow heating

(3) Consistent mechanical properties on annealing material

(4) Optimized control program

(5) Minimize production cost

(6) High productivity

(7) Customized design for steel, cooper, aluminum and alloy; strip, wire and tube.


3. Main Components:

(1). Heating cover

(2). Cooling cover

(3). Furnae base

(4). Inside cover

(5). Electrical system


4. Main Parameters of furnace:

For copper:

1 Loading diameter 1400mm Inside cover diameter 1600mm
2 Loading height 2700mm
3 Maximum temperature of heating cover 850℃ Can be adjusted
4 Inside cover working temperature 200-750℃ Can be adjusted
5 Loading capacity 24t 3 coils for 700mm
6 Hygrometric deficit ≤±5℃
7 Heating power 380kw+10%
8 Furnace outer wall temperature ≤35℃
9 Inside pressure 5kpa
10 Ultimate vacuum 1×103pa
11 Heating fan power 37kw 10-60Hz
12 Heating fan rotating speed Maximum 1800rpm Can be adjusted
13 Fan blade diameter 850mm
14 Heating speed Maximum 120/h
15 Input air 46000m3/h
16 Air pressure 2100Pa
17 Noise ≤85DB
18 Cooling fan power 1.5Kw×3
19 Cooling fan blade diameter 500mm
20 Lifting height ≥9.6m
21 Crane loading ≥10T





5. Description of Production Line:

(1) Heating Cover:

The heating cover is made by Q235A plate and steel profile,δ=5mm.Heating unit is Ni80Cr20 strip. The outer wall temperature in no more than 35℃.

(2) Inside Cover:

Made up by high quality SUS321(1Cr18Ni9T).cover δ=6mm

(3) Furnace Base:

The loading weight of the furnace base is 35T,loading coil weight is 24T,the guiding plate and the guiding blade is made by stainless steel 321.There is a 40mm silicon rubber between the base and the inside cover to ensure the air tightness.
