Electric Bell Continuous Annealing Furnace Fan Blade Diameter Φ800
1set
MOQ
negotiation
Price
Electric Bell Continuous Annealing Furnace Fan Blade Diameter Φ800
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Jingjie
High Light:

bell type annealing furnace

,

electric annealing furnace

Payment & Shipping Terms
Packaging Details: Packed in wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T or L/C
Supply Ability: 10sets per month
Specifications
Product Material: Copper Rod,barss Rod,steel Bar
Rated Temperature:: 900℃
Charging Capacity: ≥8T
Phase Number: 3 Phase
Frequency: 60Hz
Electric Heating Power: 220Kw
Product Description

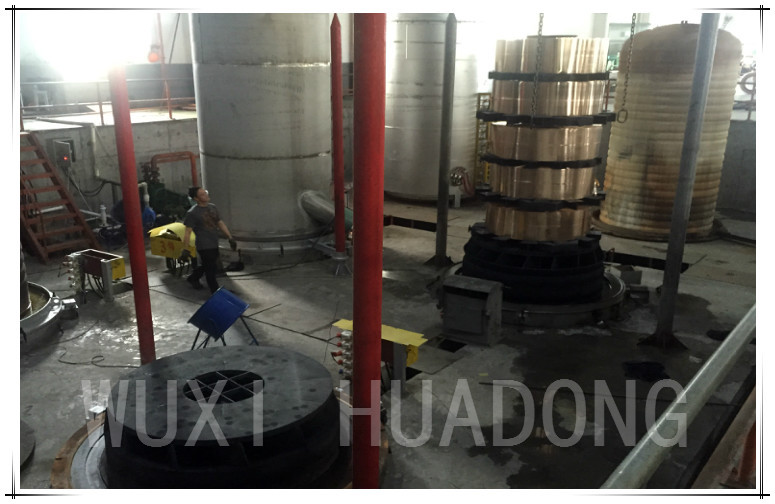

Electric Bell Continuous Annealing Furnace Fan Blade Diameter Φ800 ​



1  Equipment name: Electric Bell Continuous Annealing Furnace Fan Blade Diameter Φ800



2  Technical parameters :

2.1  Effective charging size: Φ1600×3200mm

2.2  Charging capacity: ≥8T

2.3  Rated temperature: 900

2.4  Furnace temperature homogeneity: ±5 (mid-posterior section of heat preservation)

2.5  Temperature rise of furnace shell surface: ≤50

2.6  Electric heating power: 220Kw

2.7  Number of temperature control zones: 2 Zone (double-temperature and double-control)

2.8  Power of circulating fan: 37/11Kw Fan blade diameter: φ800

2.9  Cooling fan power: 1.5Kw x 2

2.10 Lifting height: ≥9m

2.11 Cooling process: Wind and water double-cooling

2.12 Equipment cooling water: 3m³/h

2.13 Process cooling water: 8m³/h

2.14 Atmosphere protection: Ammonia decomposition gas (Hydrogen 75% + Nitrogen 25%)





3  Equipment composition and price: (Single set)

No. Equipment name QTY.
1 Heating jacket(bell) 2pc
2 Furnace platform(with Circulating fan) 3 pc
3 Inner tank(retort) 3 pc
4 Cooling cover 1 pc
5 Electrical control system 2 pc
6 Accessories 1set
6.1 Vacuum pump (2X-70A), 1 for 2 sets 1 set
6.2 Lifting sling for inner cover 1 pc
6.3 Atmosphere valve stand 3 pc
6.4 Guide pin 1 set
6.5 Exhaust device 1 set
7 Ammonia decomposition device, capacity of 40m3 (Customer can provide by himself) 1 set





② The price quotation for 40m³ ammonia decomposition device with purification system

(Customer can also provide by himself), which can support 2 sets of furnaces mentioned-above.

For casting production lines and heat-treatment equipments, our company can also provide various types of spare parts (furnace shells, melting grooves, water jackets, iron cores, crystallizers, special refractory, temperature measurement devices, transformers, reactors, electric resistance heating elements, and mechanical parts etc.); Our company can also provide cold-processing equipments such as drawing mills and cold-rolling mills for tubes, rods and shapes, as well as scrap metal balers etc.
