30mm Bronze Pipe Copper Continuous Casting Machine , Horizontal CCM Machinery
1set
MOQ
negotiation
Price
30mm Bronze Pipe Copper Continuous Casting Machine , Horizontal CCM Machinery
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: WUXI
Brand Name: Jingjie
Certification: ISO/CE
Model Number: GVT
High Light:

brass continuous casting machine

,

continous casting machine

Payment & Shipping Terms
Packaging Details: Packed in wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T or L/C
Supply Ability: 10sets per month
Specifications
Product Name: Horizontal CCM Machinery
Product: Pipe
Product Diameters: Φ(28--300)mm
Type: Horizontal
Thickness: 4--80 Mm
Furnace Type: Melting And Holding High And Low Combined Furnace
Product Description



30mm Bronze Pipe Copper Continuous Casting Machine , Horizontal CCM Machinery​

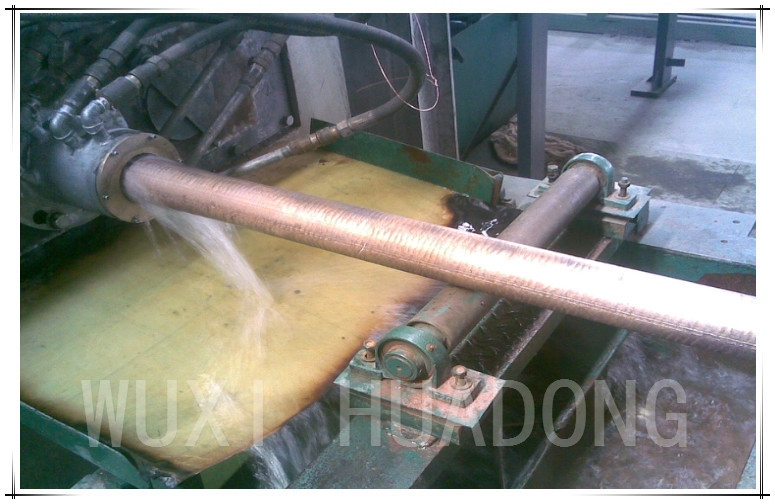

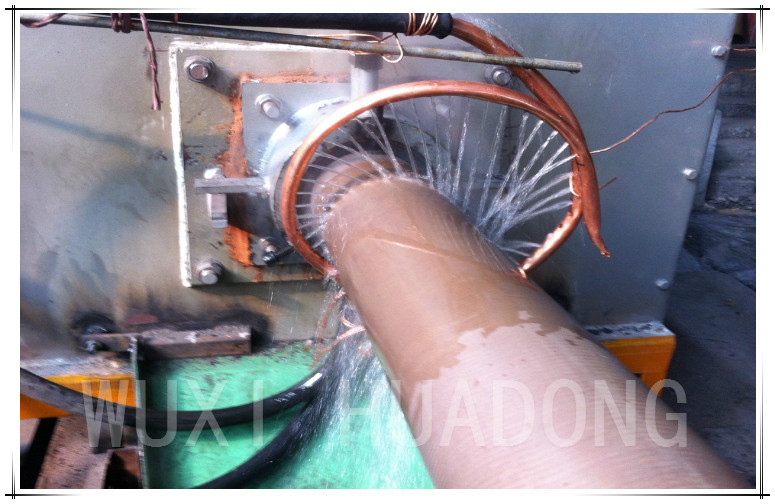

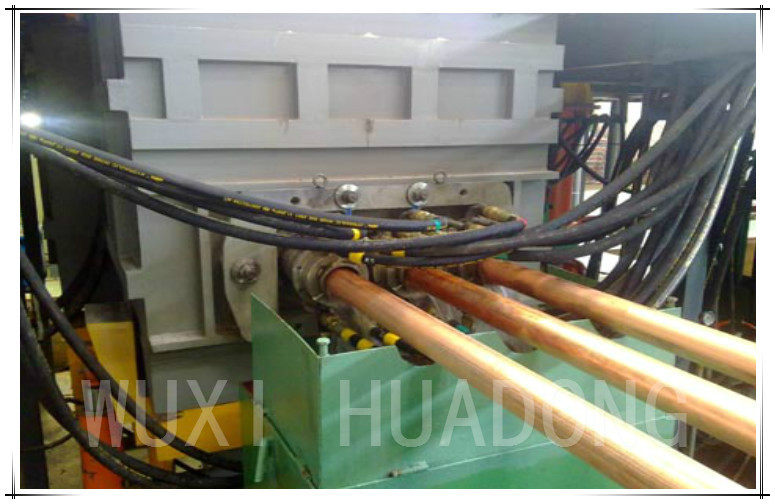

30mm Bronze Pipe Copper Continuous Casting Machine , Horizontal CCM Machinery 030mm Bronze Pipe Copper Continuous Casting Machine , Horizontal CCM Machinery 130mm Bronze Pipe Copper Continuous Casting Machine , Horizontal CCM Machinery 2

Ⅰ. Specifications:

1. Types of casting specifications

* Bronze,Cooper,Brass



1.1 Hollow billets (tube-shaped)

a. Range of outer diameter Φ(28--300)mm

b. Range of wall thickness 4--80 mm

c. Number of production lines

1-- 8 lines( according to section conditions)





Ⅱ.Process:











Ⅲ. Equipment Components List of  Horizontal Continuous Casting Production line for Rod-Wire

No. Equipment Name and Spec. Unit Quantity Remarks
1
2 Melting furnace  set 1 Including melting groove, coil, waer jacket and iron core.
3 Chute set 2 One in-use and one standby
4 Holding furnace  set 1 Including melting groove, coil, water jacket, iron core, vertical temperature measurement device (specially-made), thermocouple (containing platinum and rhodium) and protection tube.
5 Molten steel storage ladle and chute set 1 For transferring material into the mold after sintering in holding furnace.
6 mold system (Ф30-200) set 2 Including graphite mold
7 Dragger (5KW) set 1
8 Synchronized auto-tracking sawing machine set 1
9 Material stock platform set 1 Chain drive, length of 5M
10 Header tank set 1
11 Traction carrier roller Set 1
12 Cooling water distributor set 1 Including cooling water for transformer, reactor, coil of electric furnace, water jacket, water-cooling cable, and mold (primary and secondary cooling).
13 Hydraulic system set 2

Including hydraulic station and cylinder

(The hydraulic components produced by YUCI YUKEN HYDRAULICS CO., LTD. are adopted)

14 Electric-control operation system of electric furnace set 1 Including the control cabinet for melting furnace and holding furnace (Siemens is chosen for main electrical elements).
15 Process control operation system set 1 For control of servo motor and process, synchronized auto-tracking sawing machine, and control of material stock platform.





Our Factory Main Line Of the Copper Continuous Casting Machine /Horizontal Continuous Casting Machine / Vertical Continuous Casting Machine / Billet Continuous Casting Machine / Steel Continuous Casting Machine / Slab Continuous Casting Machine / Upward Continuous Casting Machine.We Can Provide You With After Sales Service Engineer, Provide Techincal Consultation And Training For A New Factory
