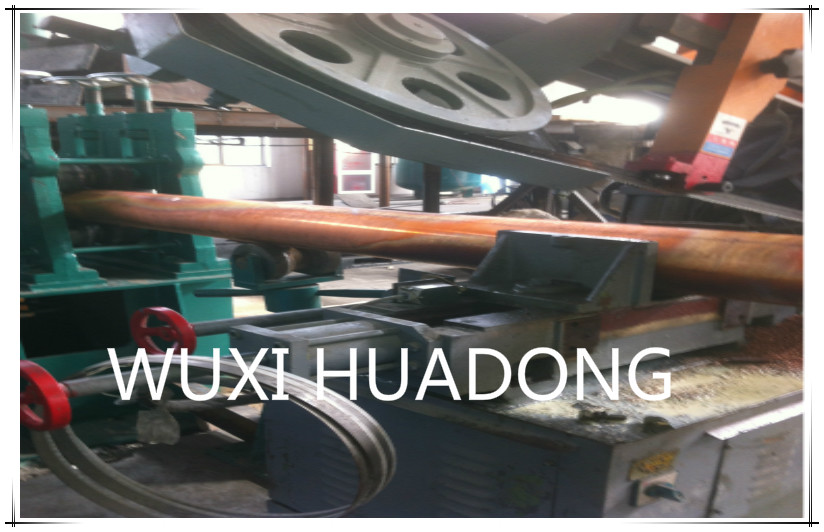

Horizontal Copper Continuous Casting Machine For 100mm Red Copper Pipes
Ⅰ. Specifications:
1. Types of casting specifications
* Red copper, oxygen-free copper
1.1 Pipes
a. Range of outer diameter Φ(28--300)mm
b. Range of wall thickness 4--80 mm
c. Number of production lines
1-- 8 lines( according to section conditions)
Ⅱ.Process:
Main equipments of production line
melting furnace, holding furnace, mold, micro-travel reversible casting machine, synchronizing shearing machines * 2, winding machines* 3, hydraulic unit, cooling unit, and electromechanical control unit etc.
* 2.1 For casting of pure metal or special requirements, subsurface channel-type smelting-holding combination furnace or controllable channel-type smelting-holding combination furnace can be adopted;
* 2.2 For producing round-shaped, tubular-shaped and special-shaped billets, cut-to-length synchronizing sawing machine can be adopted;
* 2.3 For producing round-shaped, tubular-shaped and special-shaped billets, the material stock platform for receiving and storing billets can be adopted.
Ⅲ. Equipment Components List of Horizontal Continuous Casting Production line for Rod-Wire
No. | Equipment Name and Spec. | Unit | Quantity | Remarks |
1 | ||||
2 | Melting furnace | set | 1 | Including melting groove, coil, waer jacket and iron core. |
3 | Chute | set | 2 | One in-use and one standby |
4 | Holding furnace | set | 1 | Including melting groove, coil, water jacket, iron core, vertical temperature measurement device (specially-made), thermocouple (containing platinum and rhodium) and protection tube. |
5 | Molten steel storage ladle and chute | set | 1 | For transferring material into the mold after sintering in holding furnace. |
6 | mold system (Ф30-200) | set | 2 | Including graphite mold |
7 | Dragger (5KW) | set | 1 | |
8 | Synchronized auto-tracking sawing machine | set | 1 | |
9 | Material stock platform | set | 1 | Chain drive, length of 5M |
10 | Header tank | set | 1 | |
11 | Traction carrier roller | Set | 1 | |
12 | Cooling water distributor | set | 1 | Including cooling water for transformer, reactor, coil of electric furnace, water jacket, water-cooling cable, and mold (primary and secondary cooling). |
13 | Hydraulic system | set | 2 |
Including hydraulic station and cylinder |
14 | Electric-control operation system of electric furnace | set | 1 | Including the control cabinet for melting furnace and holding furnace (Siemens is chosen for main electrical elements). |
15 | Process control operation system | set | 1 | For control of servo motor and process, synchronized auto-tracking sawing machine, and control of material stock platform. |
