Oxygen Free Copper Melting Electric Induction Furnace High Frequency 1200kW
1set
MOQ
negotiation
Price
Oxygen Free Copper Melting Electric Induction Furnace High Frequency 1200kW
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Jingjie
Model Number: GVT
High Light:

brass melting furnace

,

bronze melting furnace

Payment & Shipping Terms
Packaging Details: Packed in wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T or L/C
Supply Ability: 20 sets per month
Specifications
Product Material: Red Copper
Power: 1200kw
Rated Voltage: 600V
Phase Number: 3 Phase
Frequency: 60Hz
Maximum Melting Rate: 5t/h
Color: Custom Made
After Sales Service: Send Engineers To Overseas
Product Description

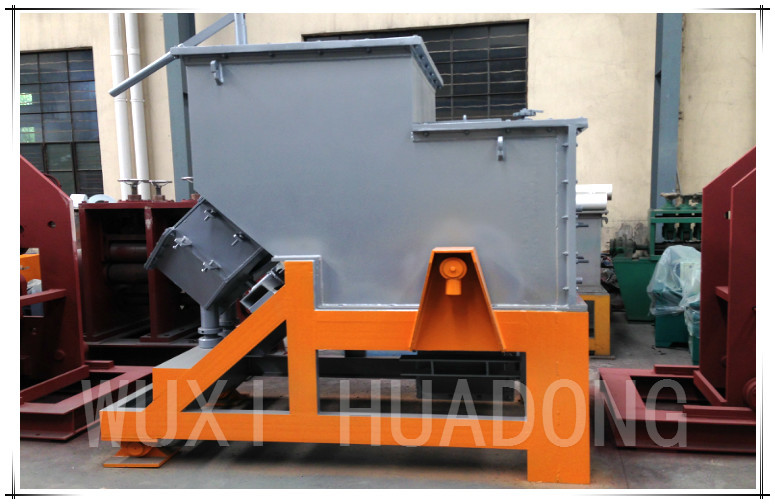

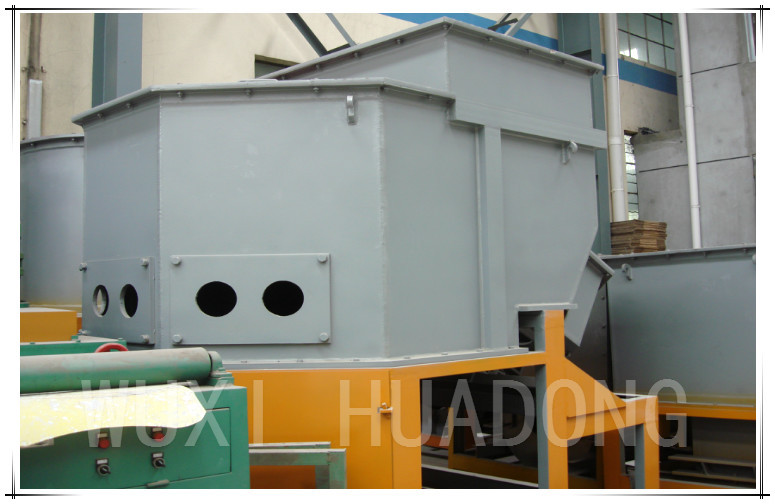

Oxygen Free Copper Melting Electric Induction Furnace High Frequency 1200kW

Oxygen Free Copper Melting Electric Induction Furnace High Frequency 1200kW 0Oxygen Free Copper Melting Electric Induction Furnace High Frequency 1200kW 1Oxygen Free Copper Melting Electric Induction Furnace High Frequency 1200kW 2

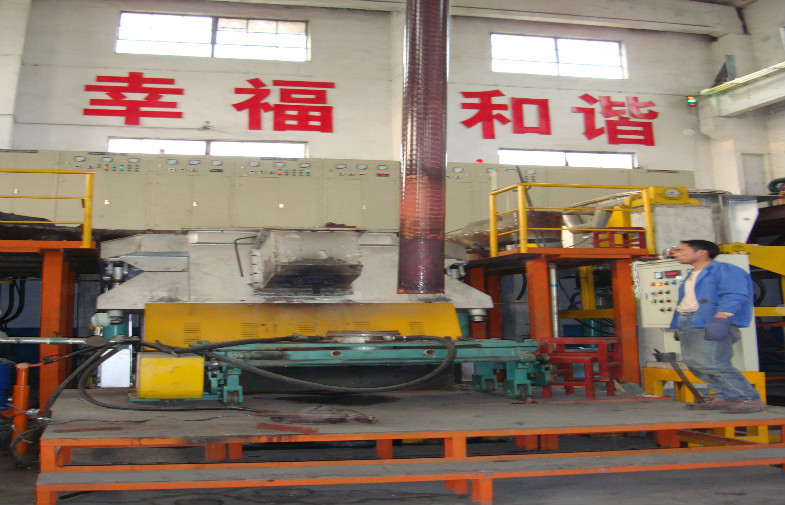

Power frequency induction  furnace for semi continuous casting unit


1 Technical parameters
Rated power: 600kW * 2
Rated voltage: 600V
Phase number: 3 phase
Frequency: 60Hz
Power factor: 0.45 ~ 0.5 (compensation) 1 ~ 0.9 (compensation)
The three-phase power supply current unbalanced degree: less than 10%
Maximum melting rate: 5t/h
Max capacity: 12.0t
Minimum capacity: 1.5T (i.e., the melting body weight)
Heating temperature: 1200-1300
Heat preservation temperature: 1150 ~ 1200
There is class voltage regulation: 100V~600V ten
Cooling: water cooling
The cooling water temperature that is not higher than 40 DEG (coil, water jacket, water temperature measuring device)
Cooling water: 20 ~ 40t/h
Cooling water pressure: 0.2 ~ 0.4MPa
Groove type: W type rectangular jet melting groove


2 Scope of supply

NO   NAME  SPECIFICATION   QUANTITY
1 1200kw Melting furnace   1set
2 Electric control 1200kw 1set
3 Furnace building material

4

Water jacket, coil, iron core, melting channel 1200kw 1set
5 Hydraulic tilting system With emergency stop switch, limit switch 1set
6 Water cooled cable

400V,750KVA

4pcs
7 Auto-transformer   2set
8 Interphase reactor

400V, 430KVAR

2set
9 Cooling water distribution and collection device                      1set


3 Main technical indicators of equipment
The main electrical components used in the domestic well-known brand products, furnace body using vertical structure, material using Q235, thickness of 16mm steel welded. Iron core is made of Wuhan Iron and steel 35Q135 high quality silicon steel sheet; melting ditch the T2 copper casting and; water-cooled sleeve adopts 3mm thick 1Cr18Ni9Ti welding; coil with 22 x 14.5 x 3mm thickness T2 hollow tube winding and; hydraulic system main fittings adopt Yuci production of products;
Two, 10T wire rod semi continuous casting machine
