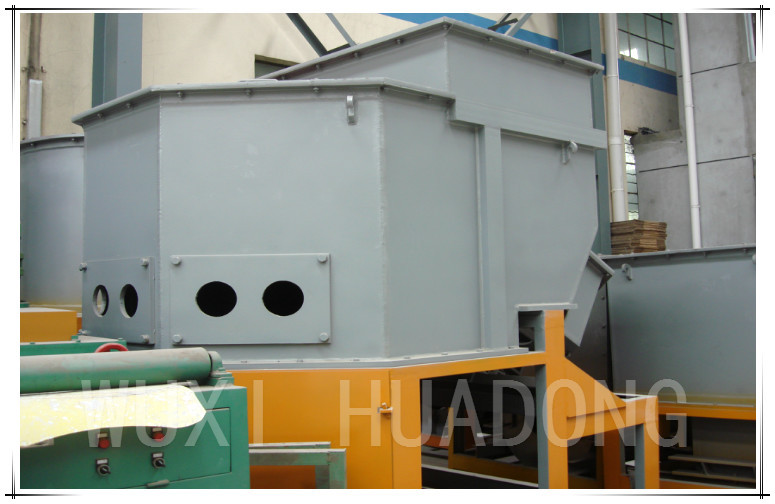

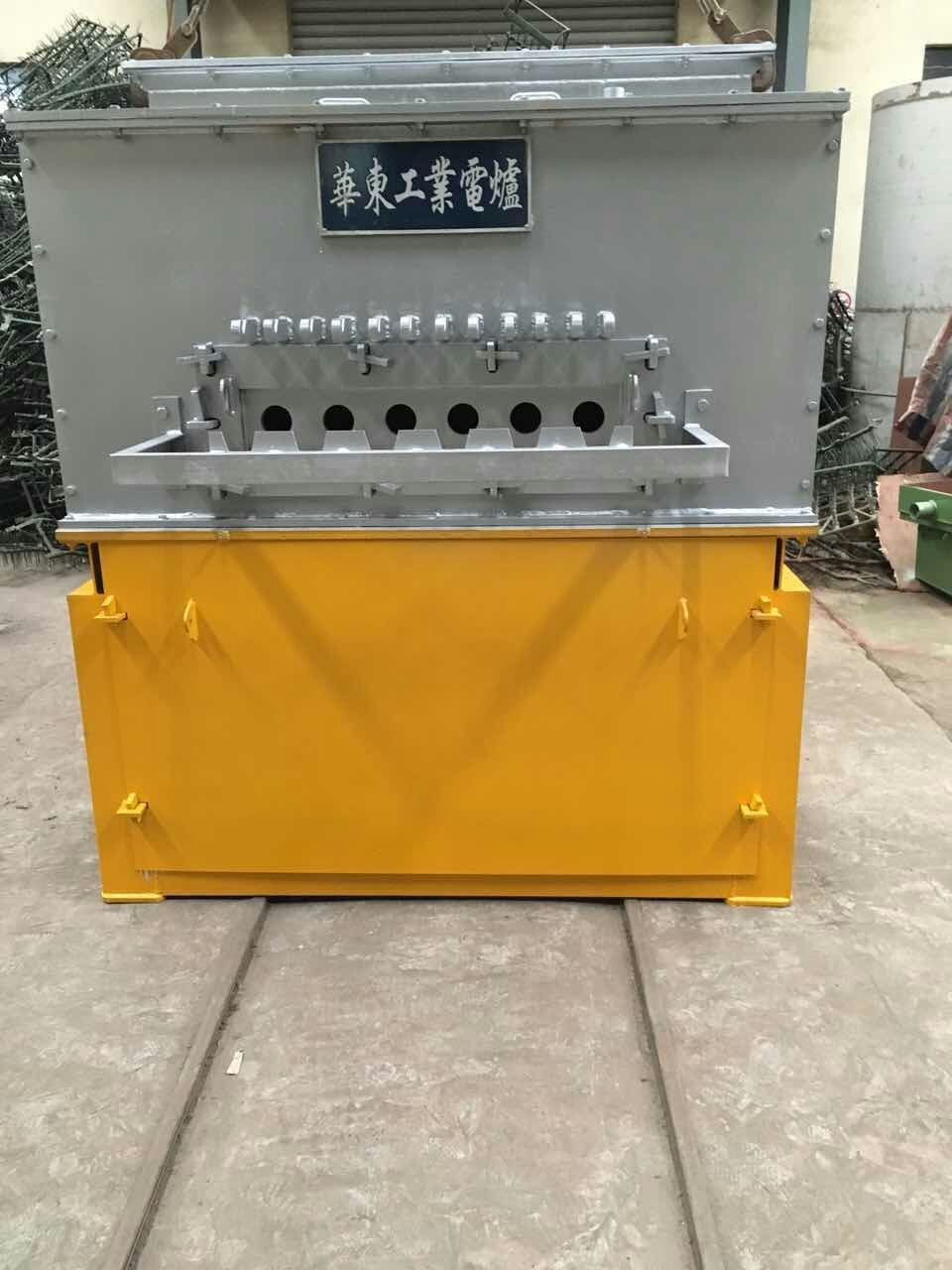

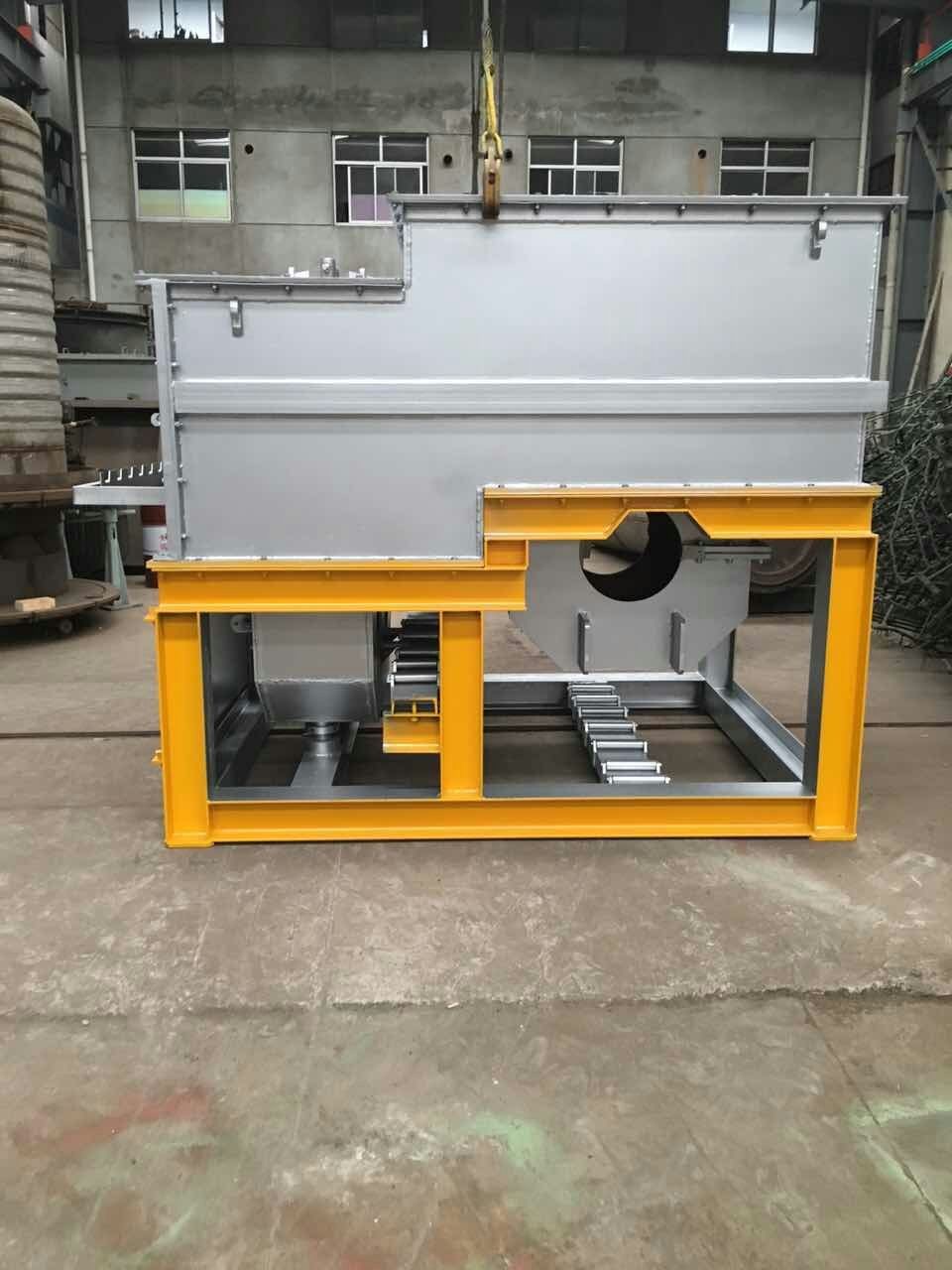

2.5T Copper Melting Industrial Induction Furnace Water Cooled High Efficient
Major Technical Parameters of Equipment:
|1.1||Total capacity of furnace||5.0T|
|1.2||Effective capacity of furnace||2.5T|
|1.6||Power factor after compensation:||0.95-1.0|
|1.7||Number of phases and connection mode of inductor:||
|1.8||Rated capacity of transformer:||
900KVA water-cooled autotransformer (380V incoming-line, three-phase
|1.9||coil cooling mode:||Water-cooling|
|1.10||Cooling water consumption:||5m3／h|
|1.11||Maximum temperature of furnace:||1500℃|
|2||Holding furnace section||
|2.1||Effective capacity of furnace:||4.0T|
|2.2||Effective casting capacity:||Less than 85 dB|
|2.4||Rated power :||250KW|
|2.5||Rated capacity of transformer:||
400KVA water-cooled autotransformer
(380V incoming-line, three-phase,
no-load stepped voltage-regulating).
|2.6||Power factor after compensation:||0.95-1.0|
|2.7||Temperature control precision:||±8℃|
|2.8||Maximum temperature of furnace:||1300℃|
|2.9||Coil cooling mode:||
Date of Delivery:
To be delivered within 30-45 days after the contract becomes effective.
1. The main body of the equipment will have one year of free warranty, and special components shall be discussed separately;
2. During the trial-production period (within 3 months after equipment commissioning is finished), our company will dispatch a professional technician for follow-up service;
Within the warranty period, if fault occurs due to quality problem, our company will dispatch personnel to the site to solve the problem within 72 hours after receiving the notice;
After the warranty period of the equipment is expired, our company will offer effective solutions within 24 hours after receiving the notice, and will dispatch personnel for maintenance work if the user fails to solve the problem, only charging the cost expenses.
For annual overhaul of equipment, our company will dispatch professional technician to join the users in formulating the turnaround plan, free of charge;
Within the warranty period, our company can dispatch professional technician to the site to check the operation condition of equipment and provide field service.
After the warranty period of equipment expires, one return visit can be made on invitation once per half a year.
3. If our company has innovation and improvement points or constructive suggestions for similar equipments, we will inform the user in time.
