Vertical Semi Continuous Copper Melting Furnace 3 Phase Frequency 60Hz
Vertical Semi-continuous Copper Melting Furnace Introduction:

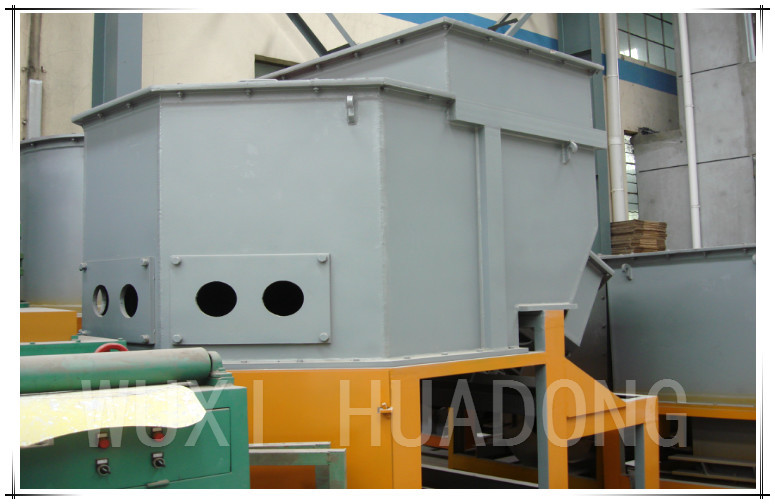

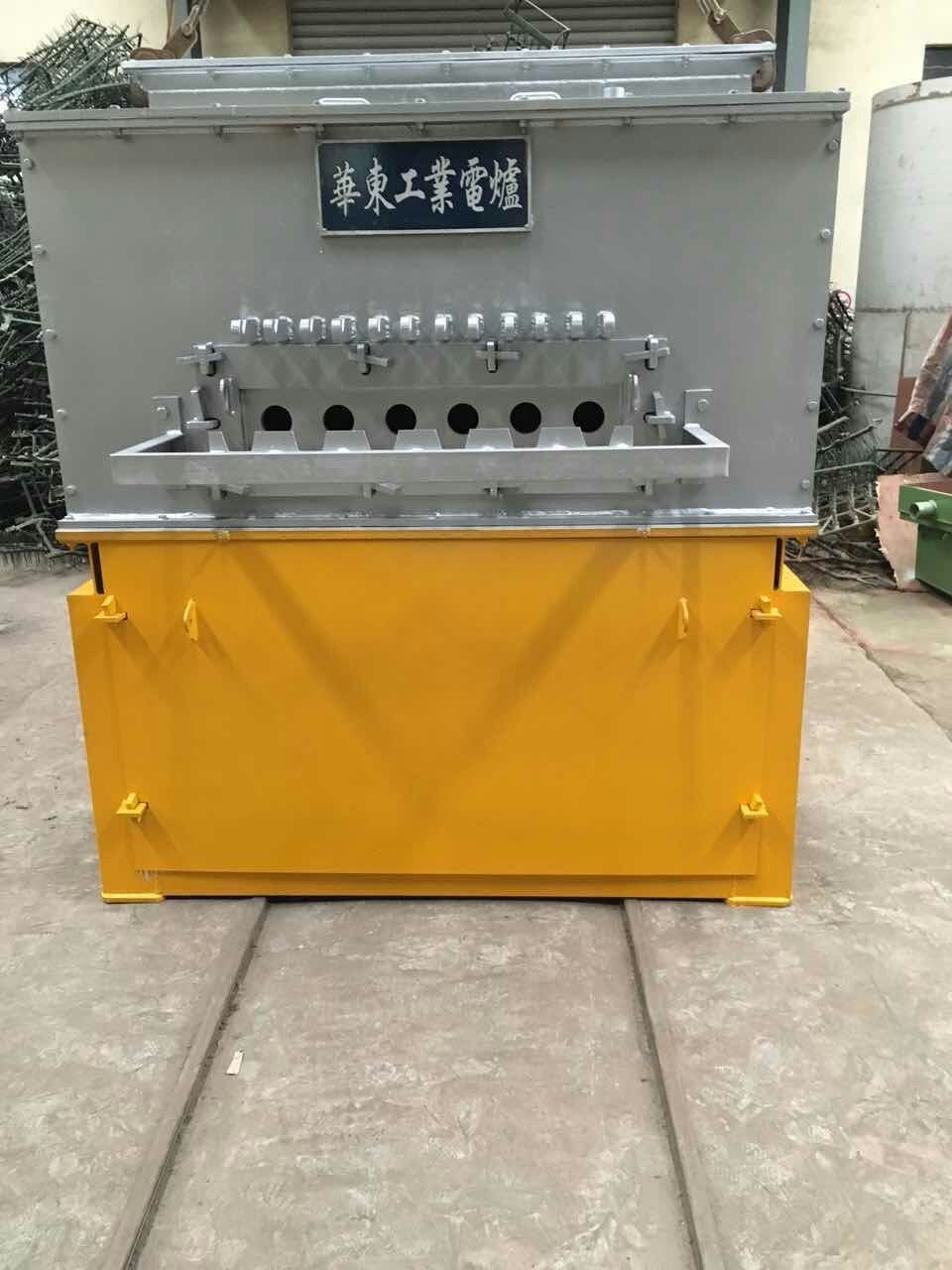

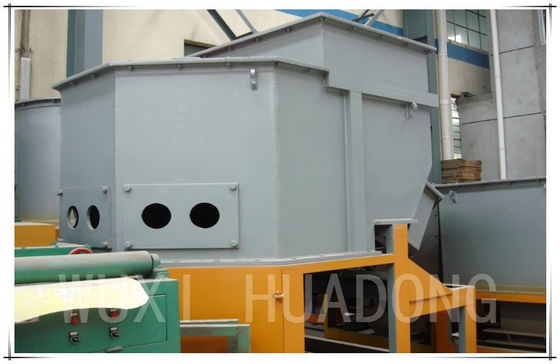

This furnace is of vertical structure. The shell is made of U- steel and figured steel welded together so as to make the furnace strong and rigid enough. The interior of the furnace is constructed with fire proof fiber felt, refractory bricks, quartz sand as filling material, and high alumina bricks (for constructing the head of the furnace).
At the top of the melting furnace, there is a charge hole. The furnace body rests on cast iron bearing chocks and can be turned by means of the turning axle. In order to reduce the friction between the axle and chocks, copper sleeves are used.When the furnace is tilted hydraulically, the molten metal is poured into the crystallizer.

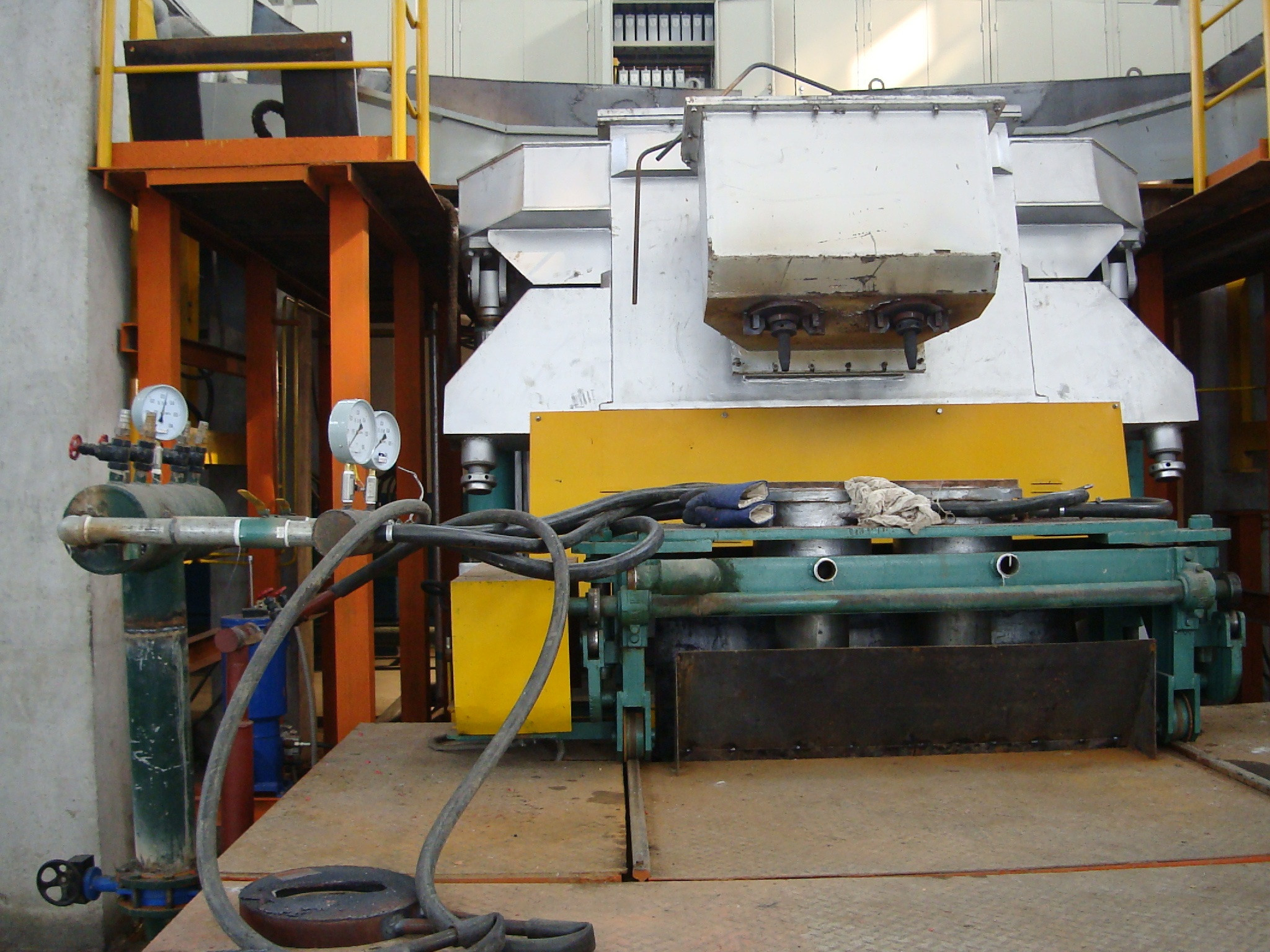

The upper part of the caster is a welded box, which is used for supporting the crystallizer carriage. The hoisting mechanism can be either of hydraulic type or of leading screw type. The crystallizer carriage is of welded steel structure. At the bottom of the carriage, there are four rotary wheels, on which the crystallizer mechanism is installed.
Applications: for melting and casting of copper, brass and other copper alloys
Vertical Semi-continuous Casting Unit Specifications
|
Extrusion billets:
|
￠80~￠450mm in diameter
|
|
Slabs:
|
Up to 1500mm in width
|
|
Number of strands:
|
1-4
|
|
Withdrawing mode:
|
Lead screw or hydraulic system
|
|
Materials:
|
Copper and brass
|
|
Product capacity:
|
Up to 10,000t/a
(Depending on number of strands)
|
|
Operators needed:
|
2 per shift
|
Date of Delivery:
To be delivered within 30-45 days after the contract becomes effective.
After-sales service
1. The main body of the equipment will have one year of free warranty, and special components shall be discussed separately;
2. During the trial-production period (within 3 months after equipment commissioning is finished), our company will dispatch a professional technician for follow-up service;
Within the warranty period, if fault occurs due to quality problem, our company will dispatch personnel to the site to solve the problem within 72 hours after receiving the notice;
After the warranty period of the equipment is expired, our company will offer effective solutions within 24 hours after receiving the notice, and will dispatch personnel for maintenance work if the user fails to solve the problem, only charging the cost expenses.
For annual overhaul of equipment, our company will dispatch professional technician to join the users in formulating the turnaround plan, free of charge;
Within the warranty period, our company can dispatch professional technician to the site to check the operation condition of equipment and provide field service.
After the warranty period of equipment expires, one return visit can be made on invitation once per half a year.
3. If our company has innovation and improvement points or constructive suggestions for similar equipments, we will inform the user in time.
