High Efficiency Bell Annealing Furnace Strong Convective Circulation
High Efficiency Bell Annealing Furnace Strong Convective Circulation
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: Jingjie
Model Number: BAF
High Light:

electric annealing furnace


bright annealing furnace

Payment & Shipping Terms
Packaging Details: Packed in wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T or L/C
Supply Ability: 10sets per month
Product Material: Steel,copper Wires And Strips
Rated Temperature:: 1100℃
Charging Capacity: ≥8T
Phase Number: 3 Phase
Frequency: 60Hz
Cooling Water Consumption: 8-14(t/h)
Product Description


High Efficiency Bell Annealing Furnace Strong Convective Circulation



Bell Type Annealing Furnace


1. Strong convective circulation,shortening heat treatment cycle and high efficiency;

2. Using PPM sealing mechanism in the connection part, more stable atmosphere, can avoid H2 or other protective atmosphere combined with air;

3. Using the microcomputer intelligent instrument to control furnace temperature, can perform auto control.


Introduction of Furnace

The bell type annealing furnace is used for annealing the steel strip, aluminum strip and copper strip. The furnace loading capacity can be reached to 60Tons(Max.). The loading diameter can be reached to 2.6 meters(Max.) and the loading height can be reached to 3.7 meters(Max.).


Main Characteristic

(1) 100% hydrogen or 75% hydrogen or nitrogen system

(2) High convection flow heating

(3) Consistent mechanical properties on annealing material

(4) Optimized control program

(5) Minimize production cost

(6) High productivity

(7) Customized design for steel, cooper, aluminum and alloy; strip, wire and tube.

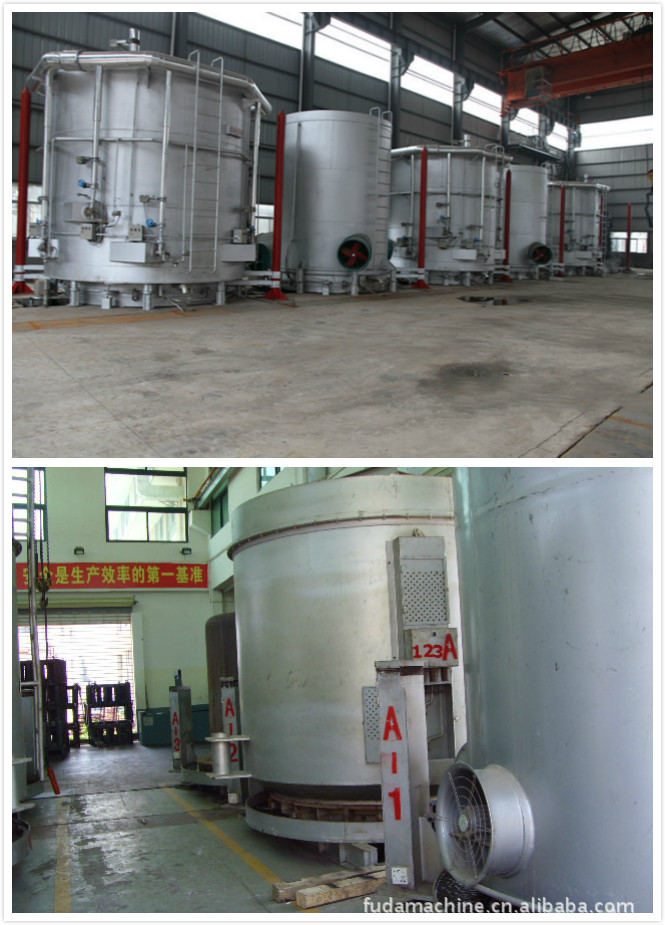

This bell type annealing furnace is mainly composed of 1 heating shield,2 furnace base,2 inner cover,cooling cover, valve braket and pipeline.


Technical parameters

Model BAF-100/200-8 BAF-120/250-8 BAF-140/290-8 BAF-160/320-8
Effective loading diameter (mm) 1000 1200 1400 1600
Effective loading height (mm) 2000 2500 2900 3200
Max loading capacity (t) 5 10 20 30
Max. working temperature(℃) 850 850 850 850
Heating power(kw) 150 210 280 360
Fan heat cycle power(kw) 15/22 15/22 10/37 10/37
Heat cycle rpm fan speed (rpm) 750/1500 750/1500 750/1500 750/1500
Diameter blower fans (mm) 640 640 850 850
Control temperature accuracy (℃) <±3 <±3 <±3 <±3
Cooling fan power (kw) 0.5*2 0.75*2 0.75*2 1.1*2
Cooling water consumption (t/h) 8 10 12 14
Protective gas consumption( m3/h) 8 14 18 25
Weight (t) 20 25 32 40

Note: Various size of bell type annealing furnace can be also designed and manufactured as user's needs.


Description of Production Line:

(1) Heating Cover:

The heating cover is made by Q235A plate and steel profile,δ=5mm.Heating unit is Ni80Cr20 strip. The outer wall temperature in no more than 35℃.

(2) Inside Cover:

Made up by high quality SUS321(1Cr18Ni9T).cover δ=6mm

(3) Furnace Base:

The loading weight of the furnace base is 35T,loading coil weight is 24T,the guiding plate and the guiding blade is made by stainless steel 321.There is a 40mm silicon rubber between the base and the inside cover to ensure the air tightness.
