Double Conjoined Furnace Copper Continuous Casting Machine Φ8mm
1set
MOQ
negotiation
Price
Double Conjoined Furnace Copper Continuous Casting Machine Φ8mm
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Jingjie
Model Number: GVT
High Light:

upward casting machine

,

continuous casting equipment

Payment & Shipping Terms
Packaging Details: Packed in wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T or L/C
Supply Ability: 10sets per month
Specifications
Product Material: Red Copper
Product: Rod-wire
Product Diameters: Φ8mm
Melting Rate: 300KG/H
Furnace Type: Double Conjoined Furnace
Strand: 6
Melting Furnace Power: 80KW
Holding Furnace Power: 80KW
Product Description

Upcasting process oxygen free copper rod Φ8mm 6strands continuous casting production line



Equipment Composition

A typical upcasting unit for copper tubes consists of a mains frequency cored melting-holding combined furnace with metal flowing under surface, a crystallizer, a cooling water distribution system, a servo c

Equipment Composition



Melting furnace(hydraulic titing type), holding furnace,upcasting machine, wheel frame,, Frequency conversion double pole coiling machine, water cooling system, temperature measurement system, electric control system



Main technical parameters of equipment

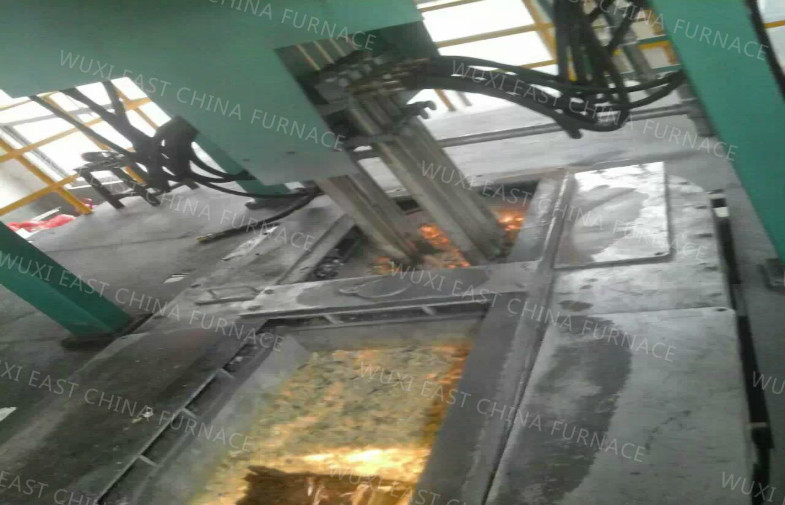

Core frequency induction furnace

(1)





Production variety



T2 copper rod (raw material electrolytic copper, bright wire)

(2)



Furnace type:





Double conjoined furnace

(3)

Furnace structure

Hydraulic titing melting furnace power


(4) Melting furnace power

80KW



(5) Holding furnace power

80KW



(6) Temperature control intelligent
(7) Furnace voltage 380V±10
(8) Transformer capacity 210KVA
(9) Furnace frequency

50HZ



(10) Transformer control mode Contactor control
(11) Transformer level Level9
(12) Melting rate

300KG/H



(13)



Melting furnace capacity

2500kg
(14)



Transition space

500kg
(15)



Holding furnace capacity

2500kg
(16)



Cooling water pressure

0.2~0.3MPa
(17)



Cooling water comsumption

8m3/h
(18)



Accident water

5m3/h
(19)



Inlet water temperature

≤35℃
(20)



Outlet water temperature

≥50~55℃



Continuous caster

(1)



Casting rod number



6strands

(2)



Casting rod specifications

Φ8
(3)



Driving method,PLC control



AC servo drive

(4)



Casting speed

0~3000mm/min,

Stepless adjustable

(5)



Casting pitch



3.0~5.0mm/pitch

(6) Level sensitivity <30
(7) Lifting speed 50mm/min
(8) Servo motor power

4.4KW



(9) Liquid level tracking accuracy ±2mm

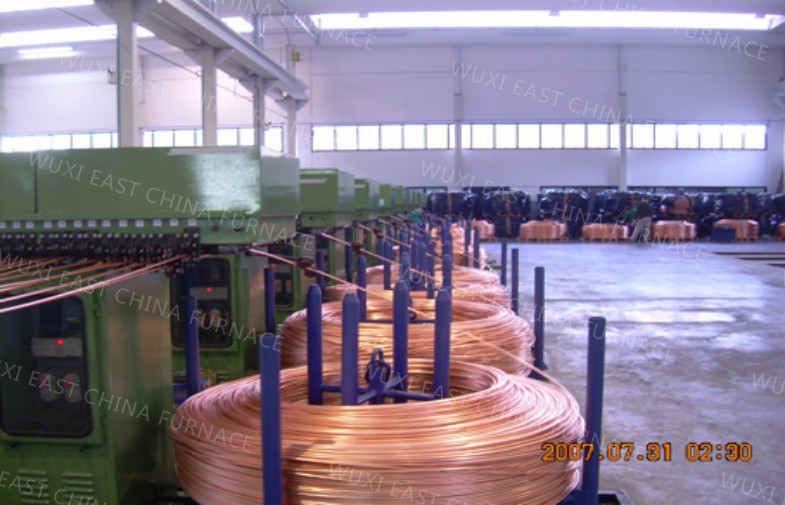

Frequency conversion double pole coiling machine

(1) Coiling mothed Automatic,Frequency conversion
  Coiling speed 300~2500mm/min




Adjust way



Potentiometer

(2)



Coiling weight

About 2~3T





MAIN EQUIPMENT CONFIGURATION AND SUPPLY RANGE

  Device name Quantity Remark
1 Power frequency induction furnace with core(80KW) Two body furnace 1 set Furnace body, furnace body bracke
Sensor 1 set Iron core, coil, water jacket, channel 1
Furnace cover 1 set
Oven building material 1 set Quartz sand, insulating material, refractory brick
2 Furnace electric control Furnace electrical control 1 set One Electric cabinet ,one control cabinet
Furnace temperature detection 1 set Display cabinet with temperature
3 Temperature measurement system Water inlet diversion device 1 set Valve, pressure gauge, etc
Mould temperature detecting assembly 1 set
Water temperature total 1 set
4 Continuous casting machine Top lead continuous casting machine frame 1 set
AC servo motor and speed reducer 1 set
Guide wheel 2 set
Ttraction drive system 1 set
Mould hanging device 1 set
Water cooling circulating device for mould 1 set
5 Electric control cabinet Drive 1 set
Man-machine interface 1 set
PLC controller 1 set
Lifting system 1 set
Liquid level tracking system 1 set
6 Mould assembly Copper rod mould 2 set
Quick connector 4 set
Protection sleeve 10 set Ten Containing graphite mold
7 Double bar coiling machine Cable car 1 set
Receiving tray 2 set




DATE OF DELIVERY
To be delivered within 75 days after the contract becomes effective.
