900KVA Transformer High Temperature Copper Small Melting Furnace 5 T/H Melting Rate
1set
MOQ
negotiation
Price
900KVA Transformer High Temperature Copper Small Melting Furnace 5 T/H Melting Rate
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Jingjie
Certification: ISO/CE
Model Number: GVT
High Light:

brass melting furnace

,

copper induction furnace

Payment & Shipping Terms
Packaging Details: Packed in wooden case for outer packing
Delivery Time: 30-45 working days after received your payment
Payment Terms: T/T or L/C
Supply Ability: 20 sets per month
Specifications
Product Material: Red Copper,brass,bronze
Melting Power: 600kw
Rated Voltage: 600V
Phase Number: 3 Phase
Frequency: 60Hz
Maximum Melting Rate: 5t/h
Warranty: 12 Months
After Sale Severce: Send Engineers To Overseas
Product Description

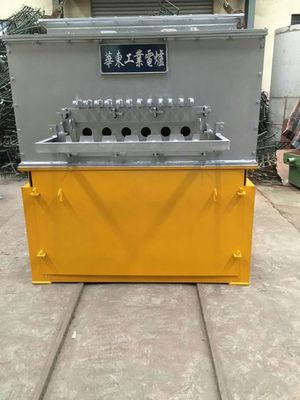

900KVA Transformer High Temperature Copper Small Melting Furnace 5 T/H Melting Rate ​

900KVA Transformer High Temperature Copper Small Melting Furnace 5 T/H Melting Rate 0900KVA Transformer High Temperature Copper Small Melting Furnace 5 T/H Melting Rate 1900KVA Transformer High Temperature Copper Small Melting Furnace 5 T/H Melting Rate 2



Major Technical Parameters of Equipment:



1 Melting furnace:
1.1 Total capacity of furnace 5.0T
1.2 Effective capacity of furnace 2.5T
1.3 Furnace voltage 380V
1.4 Furnace power 600KW
1.5 Melting rate 2t/h
1.6 Power factor after compensation: 0.95-1.0
1.7 Number of phases and connection mode of inductor:

Single-phase series-connection

1.8 Rated capacity of transformer:

900KVA water-cooled autotransformer (380V incoming-line, three-phase

1.9 coil cooling mode: Water-cooling
1.10 Cooling water consumption: 5m3/h
1.11 Maximum temperature of furnace: 1500℃
2 Holding furnace section





2.1 Effective capacity of furnace: 4.0T
2.2 Effective casting capacity: Less than 85 dB
2.3 Rated voltage: 380V
2.4 Rated power : 250KW
2.5 Rated capacity of transformer:

400KVA water-cooled autotransformer

(380V incoming-line, three-phase,

no-load stepped voltage-regulating).

2.6 Power factor after compensation: 0.95-1.0
2.7 Temperature control precision: ±8℃
2.8 Maximum temperature of furnace: 1300℃
2.9 Coil cooling mode:

Water-cooling






Date of Delivery:
To be delivered within 30 days after the contract becomes effective.

After-sales service
1. The main body of the equipment will have one year of free warranty, and special components shall be discussed separately;
2. During the trial-production period (within 3 months after equipment commissioning is finished), our company will dispatch a professional technician for follow-up service;
Within the warranty period, if fault occurs due to quality problem, our company will dispatch personnel to the site to solve the problem within 72 hours after receiving the notice;
After the warranty period of the equipment is expired, our company will offer effective solutions within 24 hours after receiving the notice, and will dispatch personnel for maintenance work if the user fails to solve the problem, only charging the cost expenses.
For annual overhaul of equipment, our company will dispatch professional technician to join the users in formulating the turnaround plan, free of charge;
Within the warranty period, our company can dispatch professional technician to the site to check the operation condition of equipment and provide field service.
After the warranty period of equipment expires, one return visit can be made on invitation once per half a year.
3. If our company has innovation and improvement points or constructive suggestions for similar equipments, we will inform the user in time.

Wuxi East China Furnace Co.,Ltd
No.3 Bashi Furong Industrial Park,Xishan District,Wuxi City,Jiangsu Province,China
Tel: +86 510 83788308
Fax: +86 510 83786308
Mob: +86 139 2112 5611
Wechat: 86 139 2112 5611
Whatsapp: 86 139 2112 5611
