9m Lifting Height Bell Annealing Furnace For Copper Rod Fan Cooling Power 3kw
9m Lifting Height Bell Annealing Furnace For Copper Rod Fan Cooling Power 3kw
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: China
Brand Name: Jingjie
High Light:

bell type annealing furnace


bright annealing furnace

Payment & Shipping Terms
Packaging Details: Packed in wooden case for outer packing
Delivery Time: 30 working days after received your payment
Payment Terms: T/T or L/C
Supply Ability: 10sets per month
Product Material: Copper Rod,barss Rod,steel Bar
Rated Temperature:: 900℃
Charging Capacity: ≥8T
Phase Number: 3 Phase
Frequency: 60Hz
Electric Heating Power: 220Kw
Product Description

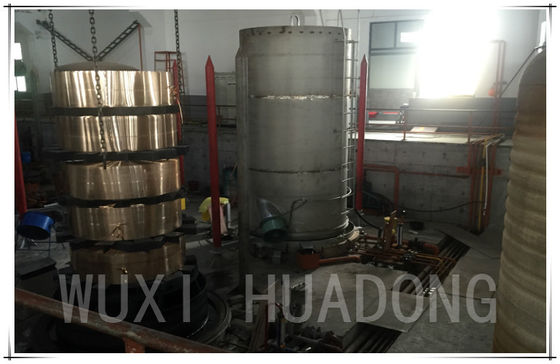

9m Lifting Height Bell Annealing Furnace For Copper Rod Fan Cooling Power 3kw




1  Equipment name: 9m Lifting Height Bell Annealing Furnace For Copper Rod Fan Cooling Power 3kw


2  Technical parameters :

2.1  Effective charging size: Φ1600×3200mm

2.2  Charging capacity: ≥8T

2.3  Rated temperature: 900

2.4  Furnace temperature homogeneity: ±5 (mid-posterior section of heat preservation)

2.5  Temperature rise of furnace shell surface: ≤50

2.6  Electric heating power: 220Kw

2.7  Number of temperature control zones: 2 Zone (double-temperature and double-control)

2.8  Power of circulating fan: 37/11Kw Fan blade diameter: φ800

2.9  Cooling fan power: 1.5Kw x 2

2.10 Lifting height: ≥9m

2.11 Cooling process: Wind and water double-cooling

2.12 Equipment cooling water: 3m³/h

2.13 Process cooling water: 8m³/h

2.14 Atmosphere protection: Ammonia decomposition gas (Hydrogen 75% + Nitrogen 25%)



3  Equipment composition and price: (Single set)

No. Equipment name QTY.
1 Heating jacket(bell) 2pc
2 Furnace platform(with Circulating fan) 3 pc
3 Inner tank(retort) 3 pc
4 Cooling cover 1 pc
5 Electrical control system 2 pc
6 Accessories 1set
6.1 Vacuum pump (2X-70A), 1 for 2 sets 1 set
6.2 Lifting sling for inner cover 1 pc
6.3 Atmosphere valve stand 3 pc
6.4 Guide pin 1 set
6.5 Exhaust device 1 set
7 Ammonia decomposition device, capacity of 40m3 (Customer can provide by himself) 1 set



② The price quotation for 40m³ ammonia decomposition device with purification system

(Customer can also provide by himself), which can support 2 sets of furnaces mentioned-above.


Our company can develop, design, and manufacture equipments for specific production lines according to customers' requirements, provide complete services of solutions; Committed to quality, quality priority covers the whole process of designing, purchasing ,manufacturing, production, installation and after-sales services etc. We are doing our best to realized most advanced in technology, most reasonable in configuration, most superior in quality, and most inexpensive in cost. We strictly follow the requirements of ISO9000 quality system, achieving first-class product quality.

Choosing Wuxi Huadong Electric Industrial Furnace Co. ,Ltd as the partner means choosing trust and guarantee, and the correction choice is the safeguard for the smooth operation of your undertakings and reliable return of your investment.
