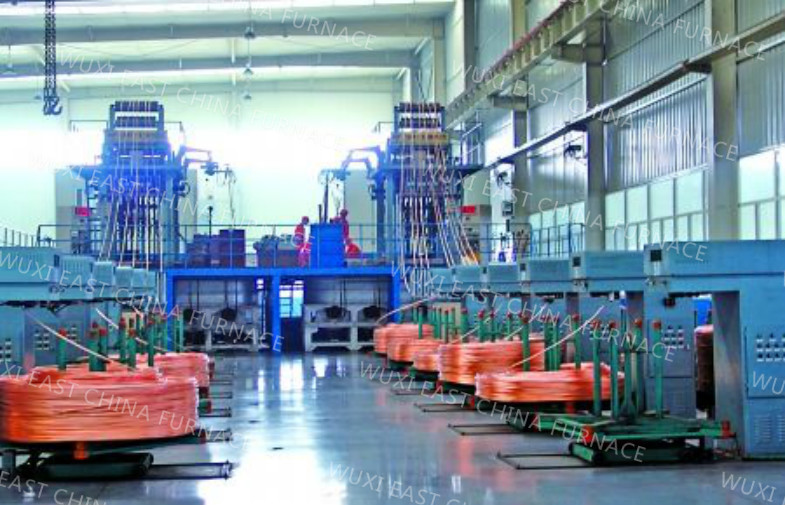

PICTURESΦ8mm copper rod 6strands continuous upcasting production line annual output 3000Ton
Advantage of our upcasting machine
1. Energy-saving furnace is used for the upcasting line, which is having a larger power for single inductor, better melting effect, and a longer life. It has won the related patent: ZL 2010.2 0214505.5, ZL 2010.2 0214501.7, ZL 2006.2 0105926.8 ZL 2008.2 0162263.2.
2. The gapless connecting expansion sleeve is used for the traction device, the PLC is used to control the servo motor correctly, and to assure that each order from the PLC is correct and accurate.
3. High accuracy and low backlash planetary reducer is used to make the freezing time more accurate, thus to increase the crystallzing quality.
4. The paperless recorder is used and is connected to the manager’s computer. All the temperature records within one month can be checked, through which the controlling of the furnace temperature can be more effective and the rod quality can be increased. (chose when the buyer need)
5. The thickness of the furnace is increased, e.g., the furnace for 5000 type is 1.6 meters which is having a better heating preservation effect.
6. Quick lifting device is used for installing and changing the crystallizer, it can be finished within 10 seconds. When water or power supply stops, the crystallizer can be lifted quickly and leave the copper liquid.
Layout drawing for reference
Main data
| No. | Item | Data |
| 1 | Model No | SYJ0608-I3 |
| 2 | Annual capacity | 3000tons |
| 3 | Furnace structure | 3 body (2 melting,1 holding ) |
| 4 | Casting Strands | 6 |
| 6 | Casting rod diameter: | Ф8mm |
| 7 | Upward casting speed | 0～3000mm/min |
| 8 | Annual working time | 7920h |
| 9 | Liquid tracking precision | ±2mm |
| 10 | Take-up coil standard | Ф700mm × Ф1500mm× 800mm |
| 11 | Copper melting velocity | 380kg/h |
| 12 | Copper melting power consumption | <350kwh/ton |
| 13 | Take-up form | automatic adjust |
| 14 | Take-up plate driven approach | inverter motor, PLC control |
| 15 | Material feeding method | whole piece of electrolytic copper cathode fed by electric hoist |
| 16 | Upward driven approach | driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet |
| 17 | Rod clamping method | air clamping |
